HBTLS618JW is a low capacity parallel beam single point load cell widely used device for weight measurement and force sensor. Provide high precise measurements and ease of installation, making it suitable for the pricing scale, counting scale and weighing applications.
Low Capacity: Accurately measures weights up to 0.02-0.05kg
Compact Size: Dimensions of approximately 70mm in length, suitable for integration in space-constrained applications.
Aluminum alloy construction: Raw materials can be customized according to customer requirements
IP65 Protection Rating: The load cell is designed with an IP65 rating.
Accuracy: Provides high-precision measurements suitable for applications requiring accurate weight data.
Easy installation.
Weighing Scales: Jewelry scale.
Medical Devices: Comes in handy for medical equipment that needs weight monitoring, like patient scales or when mixing medicines.
Laboratory Equipment: Perfect for research settings where you need super accurate measurements of different substances.
Wire Length.

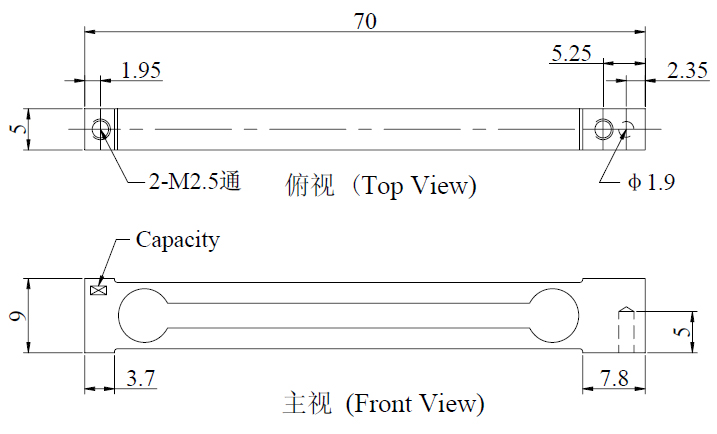

Load Cell Outer Size.
Connect Connector, Example: JST or XX Brand Connetctor.
ODM/OEM.
Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Pacakge.
| Rated Capacities | Temperature Effect On Output |
| 1-3kg | 2.0%R.O./10℃ |
| Rated Output | Temperature Effect On Zero |
| 0.8±0.15 mV/V 1.0 mV/V | 2.0 %R.O./10℃ |
| Zero Balance | Input Impedance |
| ±0.0200 mV/V | 1115±10 Ω |
| Non-linearity | Output Impedance |
| 0.02 %FS. | 1000±5 Ω |
| Hysteresis | Insulation Impedance |
| 0.02 %FS. | ≥2000 MΩ |
| Repeatability | Recommended Excitation |
| 0.02 %FS | 5~12VDC |
| 3mins Creep | Maximum Excitation |
| 0.1 %FS/3MIN | 15VDC |
| 30mins Return | OperatingTemperatureRange |
| 0.02 %R.O. | -20~60 ℃ |
| Safe Overload | Construction |
| 120 %R.O. | Aluminum Alloy |
| Ultimate Overload | Protection Class |
| 150%R.O. | IP65 |
| Cable:RED (+) BLACK(-) GREEN(+) WIHTE(-) | φ 0.8×0.0m |
| Recommended Platform Size | 55x55mm |
| Red（EXC+）,Black（EXC-）, Green（SIG+）,White（SIG-） |
