HBTLS2004A Spoke Load Cell Sensor Types For Industry Weighing

HBTLS2004A Spoke Load Cell Sensor Types For Industry Weighing

Model: HBTLS2004A

Capacity: 3.5, 10, 20, 30, 50, 70, 100, 200, 250, 300, 500, 600, 1000 (kN)

Material: Alloy Steel

Rated Output: 2.0 mV/V

Protection Class: PI65/IP66

Payment Terms: FOB or EXW Shenzhen or GUANGZHOU

Descriptions

Alloy Steel Spoke-Type Force Sensor for Force Measurement for Your Business.

The HTLS2004A is a T overload protection spoke-type force sensor characterized by its low profile, excellent rigidity, high precision, and robust resistance to unbalanced loads. This sensor finds extensive application in various fields, including belt scales, hopper scales, storage scales, material tanks, mechanical testing machines for materials, and labor protection safety inspection equipment.



Key Features:

Material: Alloy Steel.

Capacity Range: From a few Newtons (N) up to several kilonewtons (kN).

An optional integrated standard signal output can be provided, such as 4-20 mA or 0-5 V three-wire amplifiers.

Protection Rating: Typically IP65/IP66 (dustproof & waterproof).

Temperature Compensation: Minimizes drift due to thermal variations





Usage & Applications:

Hopper scales & silo weighing

Crane scales & overload monitoring

Tension control (e.g., cables, ropes, conveyors)

Machine testing & force measurement

Batching, blending & mixing systems

Belt scales & dynamic weighing

Industrial automation & process control

Material testing machines

Marine/offshore equipment

Aerospace component testing





Customized Part:

Wire Length.

Load Cell Outer Size

ODM/OEM.

Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes, Transmitter.

Package.

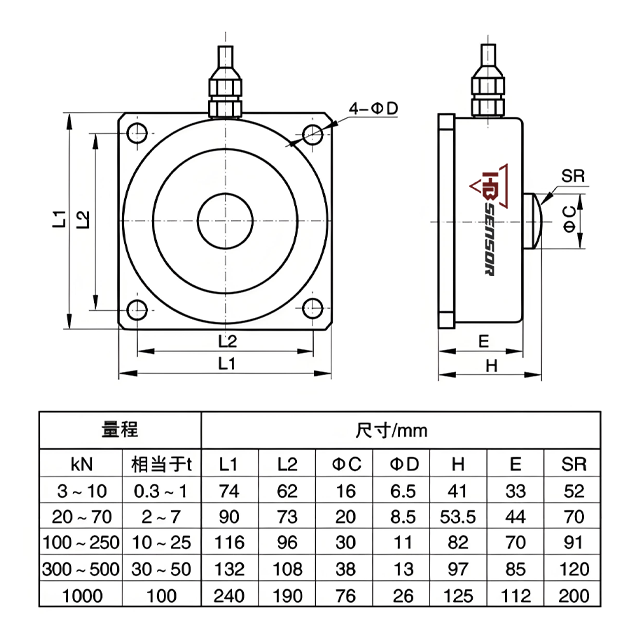

Dimension Size:

HBTLS2004A Spoke Load Cell Sensor Types For Industry Weighing Size 4A

HBTLS2004A Force Sensor Specifications:

参数/Parameter 规格/数值
额定载荷 (Rated Load) 3,5,10,20,30,50,70,100,200,250,300,500,600,1000(kN)
综合精度 (Comprehensive Precision) 0.03~0.1% F·S
灵敏度 (Sensitivity) 2.0 mV/V
蠕变 (Creep) ±0.03% F·S/30min
零点输出 (Zero Output) ±1% F·S
零点温度影响 (Temperature Effect On Zero) ±0.03% F·S/10℃
输出温度影响 (Temperature Effect On Output) ±0.03% F·S/10℃
工作温度 (Operating Temperature Range) -20℃~+65℃
输入阻抗 (Input Resistance) 380±10 Ω or 750±15Ω
输出阻抗 (Output Resistance) 350±3 Ω or 700±5Ω
绝缘电阻 (Insulation Resistance) >5000 MΩ
安全过载 (Safe Load Limit) 150% F·S
供桥电压 (Bridge Voltage) 建议 10V DC
材质 (Material) 合金钢 (Alloy Steel)
传感器接线方式 (Load Cell Connection) 输入+: 红 (Input+: Red)
输入-: 黑 (Input-: Black)
输出+: 绿 (Output+: Green)
输出-: 白 (Output-: White)
变送器接线方式 (Amplifier Connection) 电源: 红 (Power: Red)
公共端: 蓝 (Public: Blue)
输出: 白 (Output: White)
