HAIBOSENSOR manufactures micro load cells in both full-bridge and half-bridge types. The full-bridge mini load cells feature four wires: red, black, green, and white, while the half-bridge micro load cell variant consists of a set of four wires, including red, black, and white. allowing customers to choose based on their specific equipment and application requirements. Materials made of manganese steel, these micro load cells have a broad range of applications, including body scales and kitchen scales.
Due to their compact size and lightweight design, micro load cells are commonly used in consumer electronics, medical devices, and smart home appliances. For instance, these load cells can be found in pet feeders, kitchen scales, and smart vending machines, where they help to precisely control portions or monitor weight.
Compact size
Durability
Wide measurement range
Low power consumption
Manganese steel
Half Bridge load cells
IP65
Easy installation
Body Scales
Kitchen Scales
Smart Micro Weighing Machine
Other microelectronic weighing systems.
Wire Length.
Load Cell Outer Size
Connect Connector
ODM/OEM.
Load Cell Types
|
Parameter Name
|
Parameter Value
|
|---|
|
Rated load
|
10-50kg
|
|
Zero output
|
±0.5 mV/V
|
|
Output sensitivity
|
0.8±0.2 mV/V
|
|
Linear
|
0.05% FS
|
|
lagging
|
0.05% FS
|
|
Repeatability
|
0.05% FS
|
|
Creep
|
0.05% FS/3min
|
|
Output (input) impedance
|
1000±10Ω
|
|
Service temperature
|
-10℃ ~ +40 ℃
|
|
Zero temperature effect
|
±0.2% FS/10℃
|
|
Sensitivity temperature effect
|
±0.05% FS/10℃
|
|
Insulation resistance
|
≥2000MΩ
|
|
Excitation voltage
|
3VDC ~ 10VDC
|
|
Ultimate Overload
|
150% FS
|
|
Material Science
|
锰钢/Manganese Steel
|
|
Protection level
|
IP65
|
|
Comprehensive accuracy
|
0.05% FS
|
|

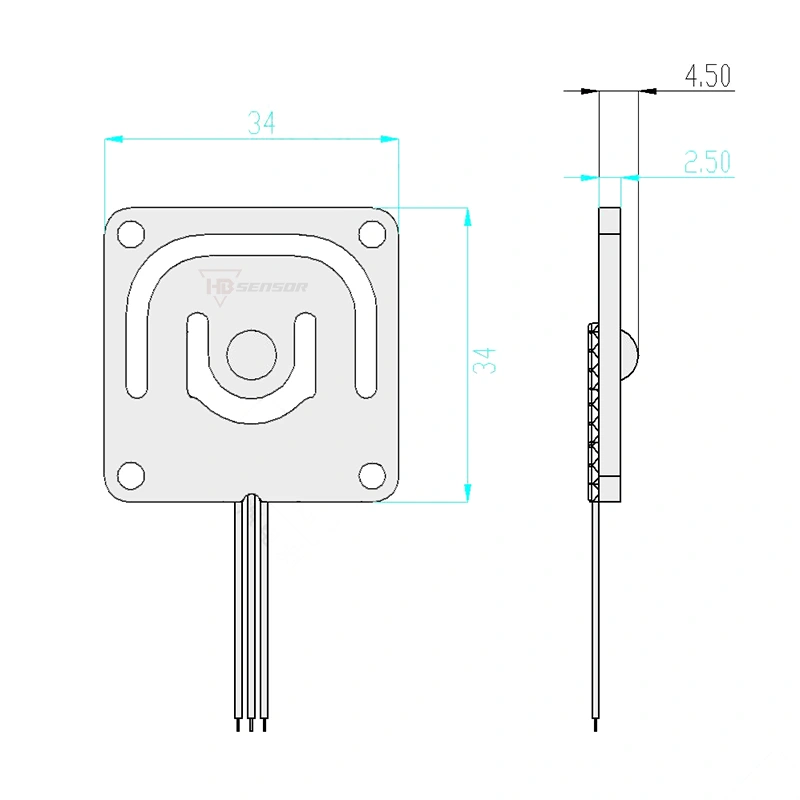

Overall dimension of the sensor
|
34x34X2.5
|
|
Pairing error
|
5 μv
|
As the best quality load cell sensor products manufacturer, we can provide professional solutions for any custom request. Please feel free to contact us now and we will contact you soonest.
Haibo is a large manufacturer of Various Load Cells. We design and manufacture a wide range of and high precision Class C3 and competitive prices, Single point load cells, shear beam load cells, micro load cells, truck scales load cells, Weighing alex pads, pressure sensors, torque sensors, etc.
