Haibosensor’s stainless steel diaphragm tension load sensor is designed for precise force measurement in demanding industrial environments. It utilizes a strain gauge-based mechanism within a robust stainless steel diaphragm structure, ensuring high accuracy, durability, and resistance to harsh conditions
Material : 304 or 316 stainless steel for corrosion resistance , ideal for harsh environments.
Diaphragm Design : High side-load rejection , ensuring accurate axial force measurement.
Capacity Range : From a few Newtons (N) up to several kilonewtons (kN).
Output Options: Analog (mV/V, 4-20mA, 0-10V), Digital (RS485, CAN, I²C, etc.)
Protection Rating : Typically IP65/IP67 (dustproof & waterproof).
Temperature Compensation : Minimizes drift due to thermal variations
Hopper scales & silo weighing
Crane scales & overload monitoring
Tension control (e.g., cables, ropes, conveyors)
Machine testing & force measurement
Batching, blending & mixing systems
Belt scales & dynamic weighing
Industrial automation & process control
Material testing machines
Marine/offshore equipment
Aerospace component testing
Wire Length.

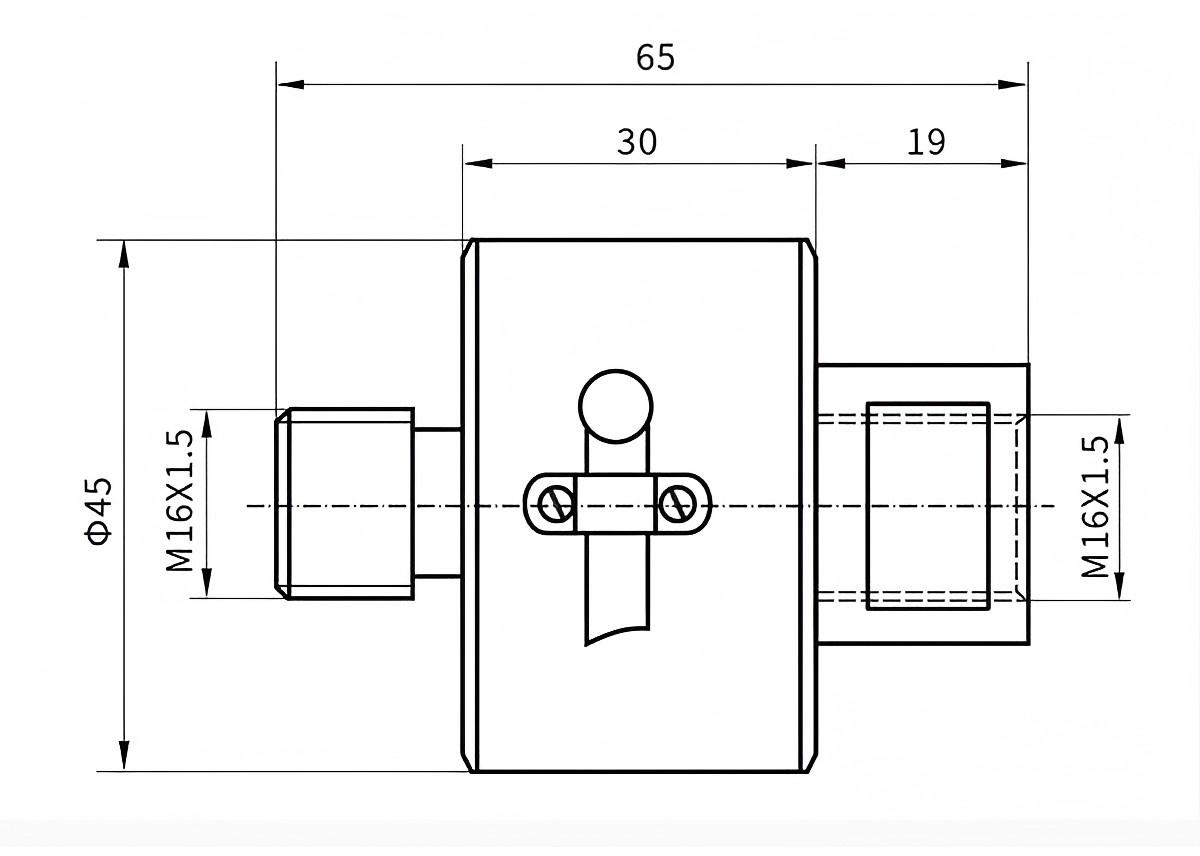

Load Cell Outer Size
Connect Connector
ODM/OEM.
Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Package.
| Rated Capacities | Temperature Effect On Output |
| 1-10 kN | 0.002 %R.O./℃ |
| Rated Output | Temperature Effect On Zero |
| 1.0-2.0 mv/v | 0.003 %R.O./℃ |
| Zero Balance | Input Impedance |
| ±1.0 mV/V | 380±10 Ω |
| Non-linearity | Output Impedance |
| 0.02% R.O. | 350±3Ω |
| Hysteresis | Insulation Impedance |
| 0.02% R.O. | ≥5000 MΩ/(100VDC) |
| Repeatability | Recommended Excitation |
| 0.02% R.O. | 9~12 VDC |
| 30 mins, Creep | Maximum Excitation |
| ±0.023%FS/30 | 10 VDC |
| 30 Return | OperatingTemperatureRange |
| 0.02% R.O. | -20~65 ℃ |
| Safe Overload | Construction |
| 150% R.O. | Aluminum Alloy & Stainless Steel |
| Ultimate Overload | Protection Class |
| 200% R.O. | IP67 / IP68 |
As the best quality load cell sensor products manufacturer, we can provide professional solutions for any custom request. Please feel free to contact us now and we will contact you soonest.
