Micro Alloy Steel Strain Gage Half Bridge Types Load Cells For Smart Micro Weighing Device

Load Cell Sensor for 3D Printer

3D Printer Load Cells are critically important for 3D printers. They can be installed on the printer’s platform to detect print bed leveling and also measure the weight of printing materials to enhance printing precision.

These weight measurements are converted into electrical signals by the 3D Printer Load Cell, allowing us to analyze the data and achieve more accurate printing results through software control.

Contact Us
Categories

3D Printer Load Cell – Small Load Cell Sensor for 3D Printer Bed for You

Video of 3D Printer Load Cell Sensor

Please see the video below of our Multi-Axis Force Sensor demo for your reference. We introduce the product in our factory as we are the manufacturer, and can provide a custom Multi Axis Force Sensor for your business

Custom Any Size 3D Load Cell Printer for You

We are a load cell sensor manufacturer, We have a series of mini load cell products, which are the best for 3D Printer use. Contact us to get custom 3D Printer Load Cell.

How 3D Printer Load Cell Used in 3D Printer

3D Printer Load Cells have multiple applications across different components of a 3D Printer, each serving a specific purpose. They can detect filament runout, measure print bed weight and leveling, and even monitor extrusion pressure at the nozzle.

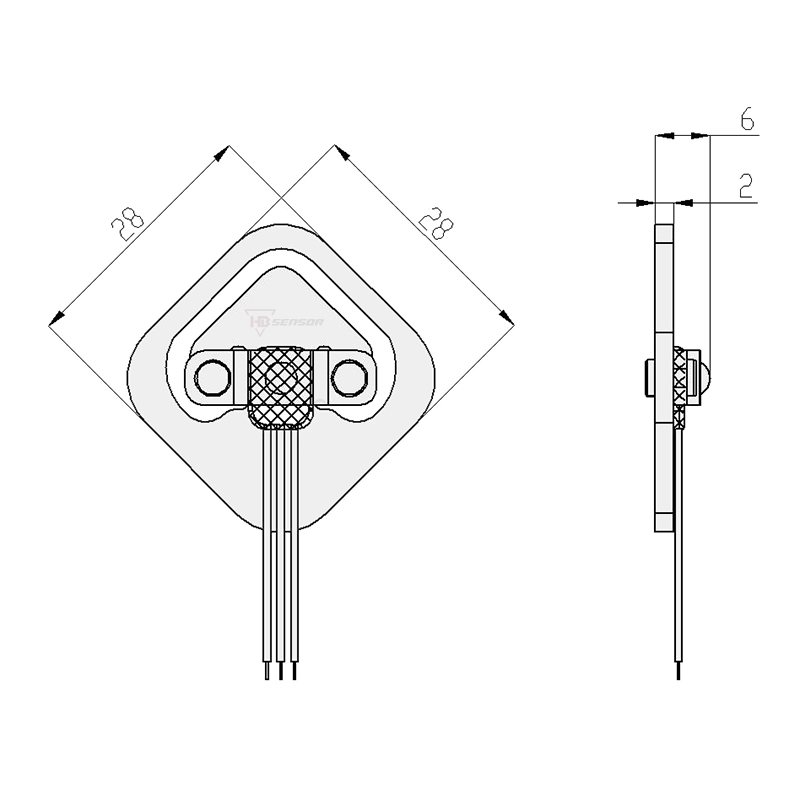

Flat Micro Strain Gage Half Bridge Load Cell For Smart Weighing Applications

Load Cell for 3D Printer Bed

The working principle of 3D Printer Load Cells in print bed leveling measurement relies on high-precision strain gauges detecting force variations across the platform.

As the print head contacts different positions, the sensors measure real-time pressure values at each point. The control system converts these force signals into digital data and uses algorithms to calculate the bed’s leveling deviations.

Rated Capacities Temperature Effect On Output 3kg ±0.3%R.O./10℃ Rated Output Temperature Effect On Zero 0.7±0.15 mV/V ±0.3 %R.O./10℃ Zero Balance Input Impedance ±0.5 mV/V 1000±10Ω Non-linearity Output Impedance 0.2 %FS. 1000±10Ω Hysteresis Insulation Impedance 0.2 %FS. ≥2000 MΩ Repeatability Recommended Excitation 0.2 %FS 3VDC ~ 10VDC 3mins Creep Maximum Excitation 0.1 %FS/3MIN 5-10VDC 30mins Return OperatingTemperatureRange 0.02 %R.O. -10~40 ℃ Safe Overload Construction 120 %R.O. Aluminum Alloy Ultimate Overload Protection Class 150%R.O. IP65 Cable:RED (+) BLACK(-) GREEN(+) WIHTE(-) 300mm MOUNTING HOLE SIZE 2-φ3.2 2-M3 Model Connection

Load Cell for 3D Printer Nozzle Tension Monitor

3D printer load cells measure nozzle force in 3D space via multi-axis X/Y/Z sensing. During extrusion, they convert pressure into electrical signals for real-time control system feedback, enabling dynamic pressure adjustment to prevent clogs/stringing and ensure printing accuracy.

Micro Load Cell 100g

Load Cell for 3D Printer Material Filament Usage Monitor

3D printer load cells monitor filament usage via real-time weighing. When the weight drops below the threshold, the system triggers alerts/pauses printing. Enables smart material management.

Get 3D Printer Load Cell Now

If you are seeking a load cell for your 3d printer project, we will have a good solution for you. As we have more than 10 years of experience the load cell manufacturing, with best engineers in the field for your any custom request.

Send Inquiry for Load Cell Products Now!

As the best quality load cell sensor products manufacturer, we can provide professional solutions for any custom request. Please feel free to contact us now and we will contact you soonest.

Get a Quick Quote

You can get a price of this model or send us any question to get any information you would like to know, we will reply to you soonest.
