Model: HBWTQ231
Capacity (Nm): 0.1, 0.2, 0.5, 1, 2, 3, 5, 10, 20, 30, 50 Nm
Material: Shaft Material Stainless Steel
Rated Output:
0.1-0.2 Nm…0.6 mV/V ± 10% F.S.
0.3-0.8 Nm…0.8 mV/V ± 10% F.S.
1-50 Nm…1.3 mV/V ± 10% F.S.
Payment Terms: FOB or EXW Shenzhen or GUANGZHOU

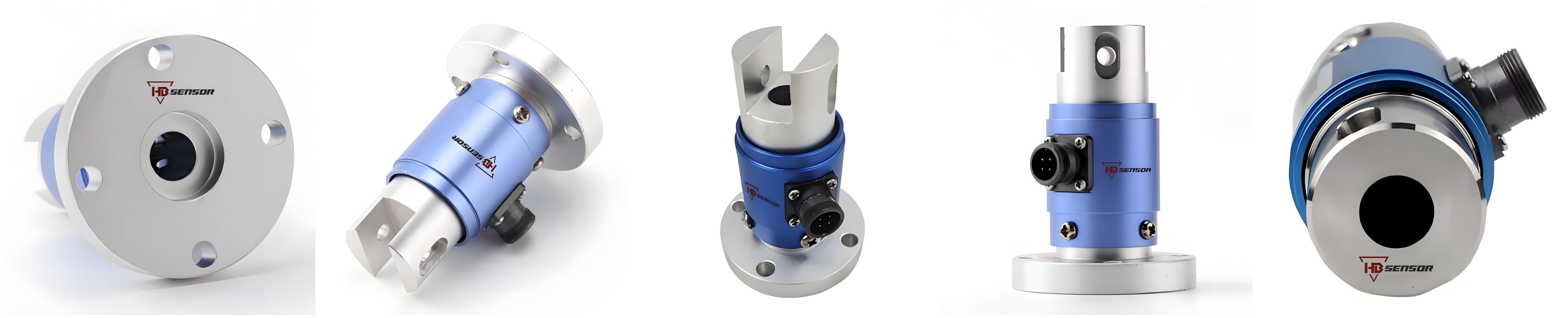

The HBWTQ2310 is a small-capacity static torque sensor with mounting holes, used in testing machines and static torque detection systems. It is highly regarded by customers for its stability, accuracy, and cost-effectiveness.
High Accuracy (±0.1-0.5% FS)
The resistance strain gauge is an integrated product consisting of a sensitive element and an integrated circuit.
High precision, stable and reliable performance;
Easy to connect with a screwdriver (electric screwdriver);
Suitable for static torque measurement.
Torque wrenches
Screwdrivers, and pneumatic tools
Robotic arm force feedback
torque of rotating machinery
engines, drive shafts
Wind turbines, etc.
Capacity

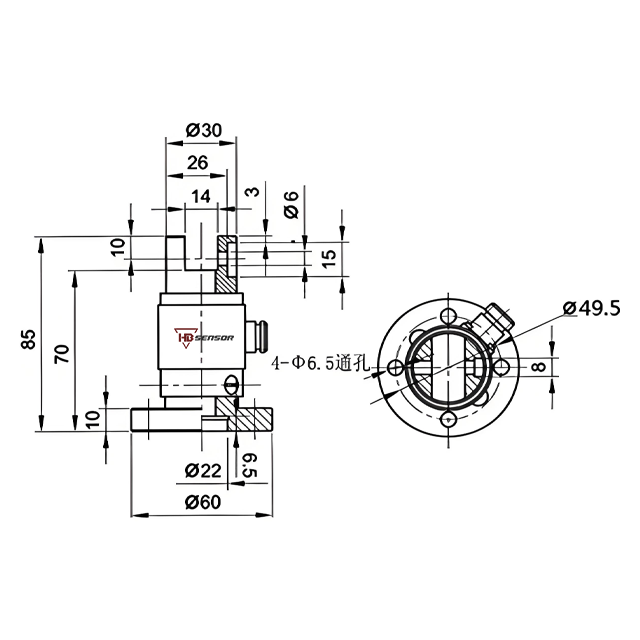

Size
Signal Output
Wires
| Range | 0.1, 0.2, 0.5, 1, 2, 3, 5, 10, 20, 30, 50 Nm |
| Output | 0.1-0.2 Nm…0.6 mV/V ± 10% F.S. 0.3-0.8 Nm…0.8 mV/V ± 10% F.S. 1-50 Nm…1.3 mV/V ± 10% F.S. |
| Accuracy | ±0.1, ±0.2% ±0.2%F.S. |
| Zero temperature effect | ±0.03% F.S. |
| Full temperature effect | ±0.03% F.S. |
| Compensated temperature range | -10~60℃ |
| Operating temperature range | -20~75℃ |
| Supply voltage | 5-10VDC |
| Input resistance | 350±20Ω |
| Output resistance | 350±10Ω |
| Response frequency | 100 μS |
| Insulation resistance | ≥2000MΩ/100VDC |
| Safety overload | 150 |
| Ultimate overload | 200% F.S. |
| Cable size | Φ5×3m |
| Material | Shaft material 17-4PH stainless steel or aluminum alloy; housing is aluminum |
| Electrical connection | Red/E+, black/E-, green/S+, white/S- |
