The HaiboSensor HBTLSF300C is a micro tension force compression load cell sensor that features strong corrosion resistance, making it ideal for harsh environments with IP67 protection. With low capacities ranging from 20 to 2000 KN, this S-type load cell uses advanced metal foil strain gauge technology for reliable performance.
Small Capacity: Accurately measures weights up to 20-2000 KN
Aluminum alloy or stainless steel construction: We can tailor raw materials to meet customer needs.
IP66/IP67 Protection Rating: The load cell is designed with an IP66/IP67 rating.
Accuracy: Provides high-precision measurements suitable for applications requiring accurate weight data.
Easy installation.
Hopper scales & silo weighing
Crane scales & overload monitoring
Tension control (e.g., cables, ropes, conveyors)
Machine testing & force measurement
Batching, blending & mixing systems
Belt scales & dynamic weighing
Industrial automation & process control
Material testing machines
Marine/offshore equipment
Aerospace component testing
Wire Length.

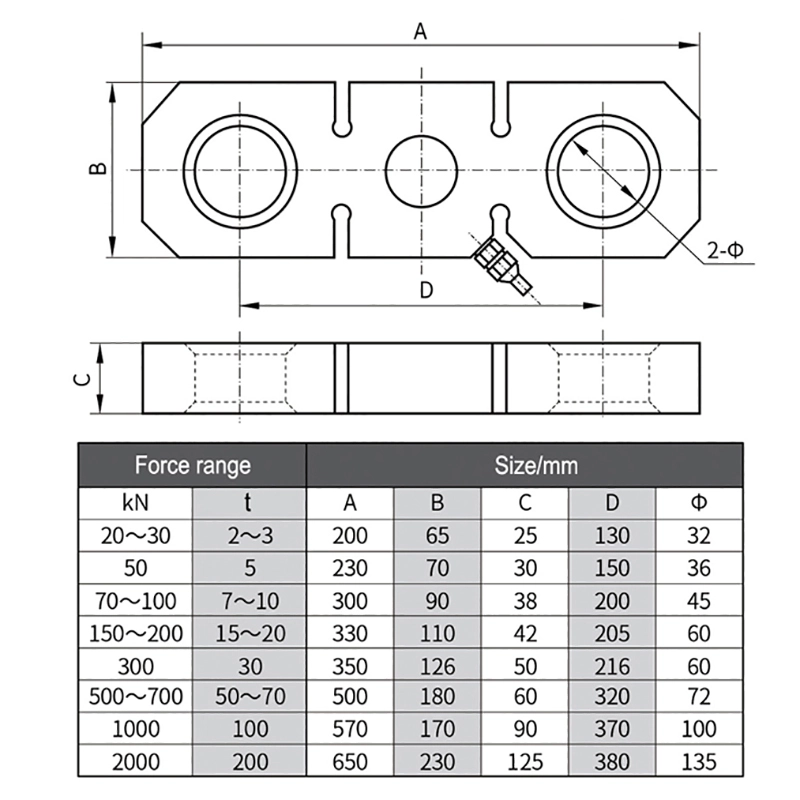

Load Cell Outer Size
Connect Connector
ODM/OEM.
Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Package.
| Rated Capacities | Temperature Effect On Output |
| 20-2000 KN | 0.002 %R.O./℃ |
| Rated Output | Temperature Effect On Zero |
| 1.5-2.0 mV/v | 0.003 %R.O./℃ |
| Zero Balance | Input Impedance |
| ±0.0200 mV/V | 350±5 Ω |
| Non-linearity | Output Impedance |
| 0.02% R.O. | 350±10 Ω |
| Hysteresis | Insulation Impedance |
| 0.02% R.O. | ≥5000 MΩ/(100VDC) |
| Repeatability | Recommended Excitation |
| 0.02% R.O. | 9~12 VDC |
| 30 mins, Creep | Maximum Excitation |
| ±0.023%FS/30 | 12 VDC |
| 30 Return | OperatingTemperatureRange |
| 0.02% R.O. | -10~40 ℃ |
| Safe Overload | Construction |
| 150% R.O. | Aluminum Alloy & Stainless Steel |
| Ultimate Overload | Protection Class |
| 200% R.O. | IP67 / IP68 |
| Temperature Effect on Output (SIG+), White (SIG-) | Cable: 600 mm Red line: excitation green line: signal (+) Black line: Incentive (-) White line: Signal (-) |
