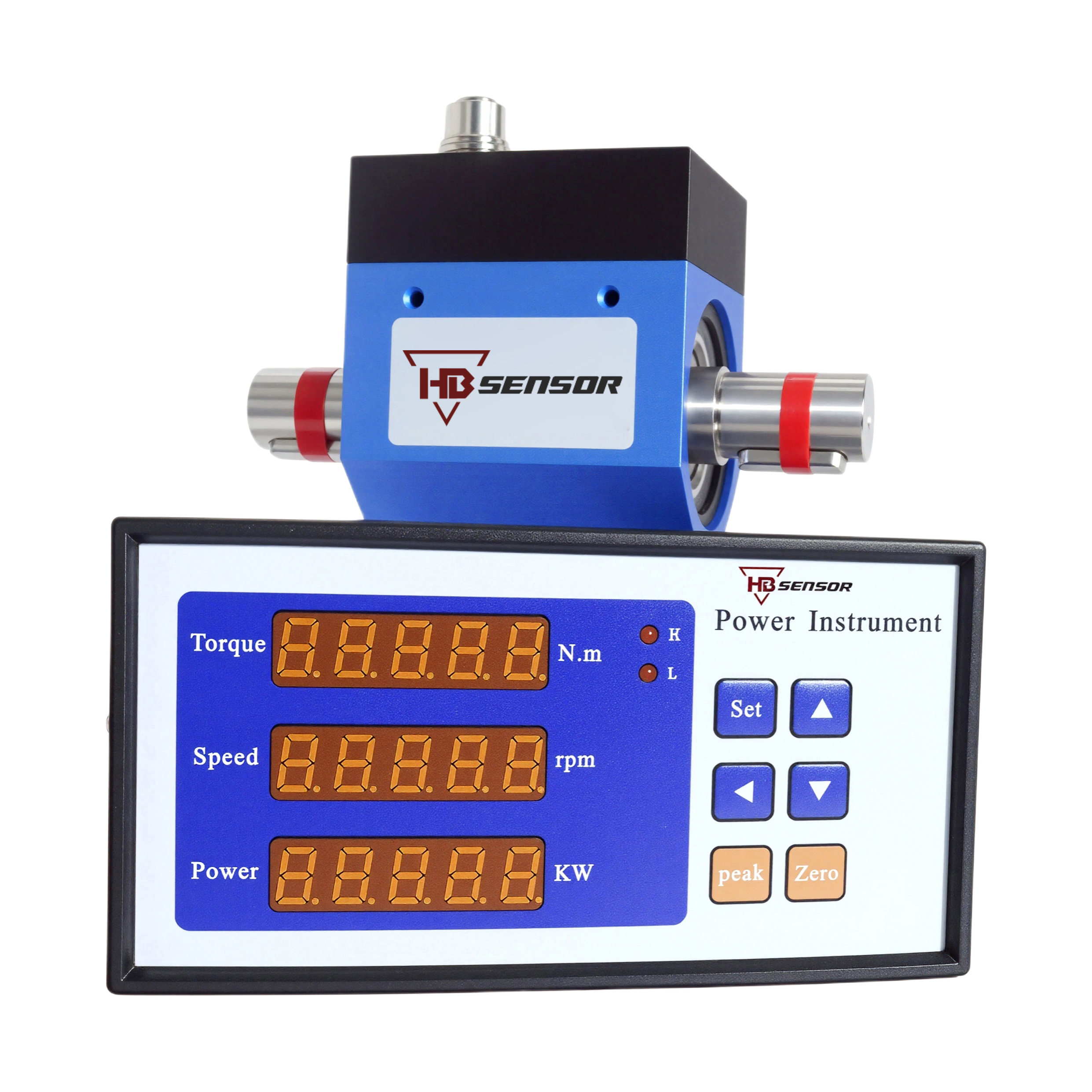

Digital Monitor LCD is a torque measurement device that can be connected to both dynamic and static torque sensors for testing purposes.Clear, easy-to-read LCD under all lighting conditions,Compatible with most dynamic and static sensors.Combines torque and RPM in one compact unit.Industrial-grade reliability and easy integration.
Size: Panel Mount (A): 160x80x170mm
Power supply: 220VAC, Power consumption: less than 15W
Temperature: -10℃~70℃, Humidity: 0~90%RH, non-condensate.
Measurement resolution: torque meter itself support resolution 1/1000000, but the LED display is limited by it’s 5 digit display,
can only support 1/120000.
Measuring speed: 25 times per second
Display range:
Torque range: -99999-99999 N.m, Torque display: only absolute number: 0-99999N.m,
Speed display: 0-99999, decimal position adjustable
Power consumption: 0-99999, decimal position adjustable
Pulse input signal: all kinds of output sensor signal, like NPN, PNP, OC, switches and rotary encoder.
Measurement Frequency; Speed pulse input 0.3Hz~20KHz
Torque pulse input, 5KHz~15KHz, can extend to 1HZ~60KHZ
Refresh frequency measurement: 30 times / second.
Standard transmitter output
Optoelectronic isolation
Two 4mA~20mA DC current output, Output resolution ratio: 1/4000;error less than ±0.2%, F.S, loading capacity: less than 600Ω
External Power Supply: ±15VDC or 24VDCoptional, loading capacity more than 300mA
Serial communication port as standard configuration
√ Optoelectronic isolation
√ RS232 or RS485 optional, default setting is RS232.
Serial port printing function as optional, for connecting standard serial port printer, support Chinese and English if necessary. Printing format is adjustable as needed.
Torque range: -99999-99999 N.m, Torque display: only absolute number: 0-99999N.m
0-99999, decimal position adjustable
0-99999, decimal position adjustable
Pulse input signal: all kinds of output sensor signal, like NPN, PNP, OC, switches and rotary encoder.
Measurement Frequency; Speed pulse input 0.3Hz~20KHz
Torque pulse input, 5KHz~15KHz, can extend to 1HZ~60KHZ
Two 4mA~20mA DC current output, Output resolution ratio: 1/4000;error less than ±0.2%, F.S, loading capacity: less than 600Ω
Serial port printing function as optional, for connecting standard serial port printer, support Chinese and English if necessary. Printing format is adjustable as needed.
