Model: HBWTQ200A
Type: Static Flange Torque Sensor
Capacity (Nm): 0~0.5/1/2/5/10/20/50/100
Material: Shaft material 17-4PH stainless steel, alloy steel or aluminum alloy; housing is aluminum
Rated Output: 0.5-0.8 Nm… 0.8 mV/V ± 10% F.S./1-100 Nm… 1.3 mV/V ± 10%
Payment Terms: FOB or EXW Shenzhen or GUANGZHOU

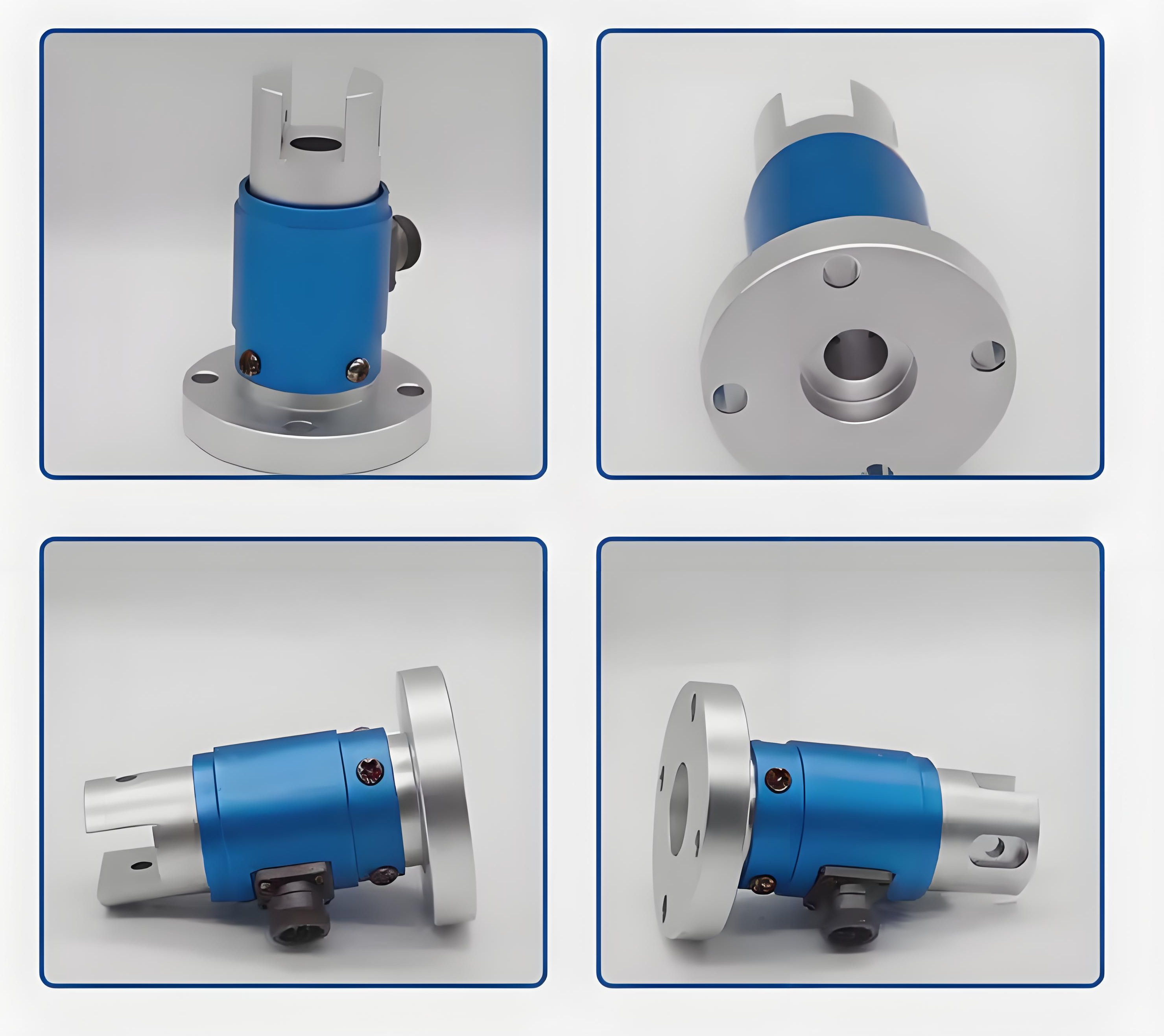

The WTQ200A 0~0.5/1/2/5/10/20/50/100 Nm static flange torque sensor from Haibo Sensor is designed for high-precision torque measurement in industrial, automotive, and laboratory environments. Its robust flange-mounted design ensures secure installation and reliable performance in demanding applications.
Haibo Sensor offers torque sensors with capacities ranging from 0.5 Nm to 2000 Nm, including standard options like 5 Nm, 10 Nm, 20 Nm, 30 Nm, 50 Nm, and 100 Nm. Custom capacities are available upon request. Each sensor can be paired with a digital display for direct readings or a signal transmitter (0~5V, 0~10V, 0~±10V, or 4-20mA) for PLC/DCS integration
High Accuracy (±0.1-0.5% FS)
Flange Mounting—Secure & vibration-resistant
Custom Outputs (0-10V, 4-20mA, RS485, etc.)
Easy to install
Long term, reliable operation
High-precision, stable, and reliable performance
Torque wrenches
Screwdrivers, and pneumatic tools
Robotic arm force feedback
torque of rotating machinery
engines, drive shafts
Wind turbines, etc.
Capacity

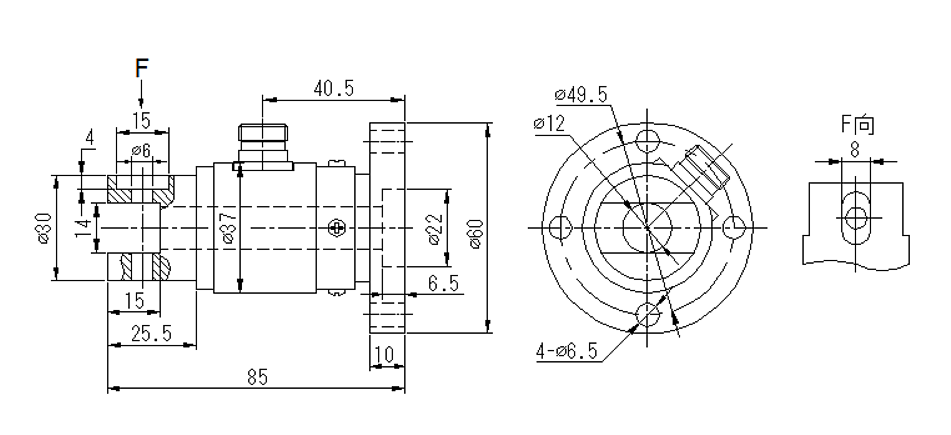

Size
Signal Output
Wires
| Details | |
| Capacity Range * | 0-100 Nm (Contact us for your specific capacity.) |
| Sensitivity | 0.5-0.8 Nm…0.8 mV/V ± 10% F.S.
1-100 Nm…1.3 mV/V ± 10% F.S. |
| Accuracy | ±0.1, ±0.2% F.S. |
| Zero Balance | ±2%FS |
| Non-linearity | 0.2%FS |
| Hysteresis | 0.05 |
| Repeatability | 0.05 |
| Creep | 0.05 |
| Temperature Drift on Zero | <0.03% F.S./10°C |
| Temperature Effect on output | <0.03% F.S./10°C |
| Operating Temperature | -20℃~+75℃ |
| Humidity | 0~90 |
| Resistance | 350Ω |
| Insulation Resistance | ≥2000MΩ/100VDC |
| Safety Overload | 120 |
| Ultimate Overload | 150 |
| Excitation Voltage | 5-10VDC |
| Material | Shaft material 17-4PH stainless steel, alloy steel or aluminum alloy; housing is aluminum |
| Protection Class | IP65 |
| Cable Length | Φ5X3m |

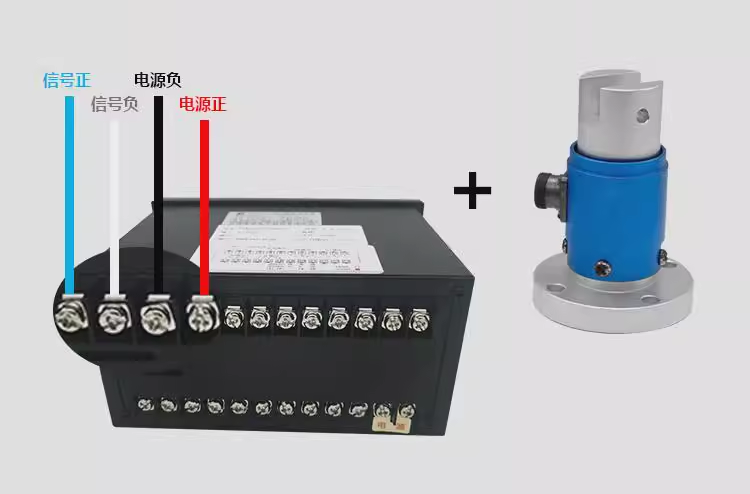

| Wiring | EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White |
