Model: HBWTQ2103
Type: Non-contact type
Capacity (Nm): 0,1–5 Nm
Material: Shaft Material Stainless Steel
Maximum Speed: 15000 RPM
Rated Output: 10 ± 5 kHz (5 V Amplitude), 0 – ±5 VDC, 0 – ±10 VDC, 0 – 5 – 10 VDC, 4 – 12 – 20 mA, 0 – 5 V, 0 – 10 V, –20 mA, RS485, RS232, CAN, etc.
Payment Terms: FOB or EXW Shenzhen or GUANGZHOU
The HBWTQ2103 is a non-contact dynamic torque sensor with a measuring range of 0.1-5 Nm and a max speed of up to 15,000 RPM. Its built-in digital monitor provides real-time torque and RPM readings for instant data visualization.
High Accuracy (±0.1-0.5% FS)
Non-Contact Dynamic Torque Sensor
Easy to install
Long term, reliable operation
High-precision, stable, and reliable performance
Torque wrenches
Screwdrivers, and pneumatic tools
Robotic arm force feedback
torque of rotating machinery
engines, drive shafts
Wind turbines, etc.
Capacity

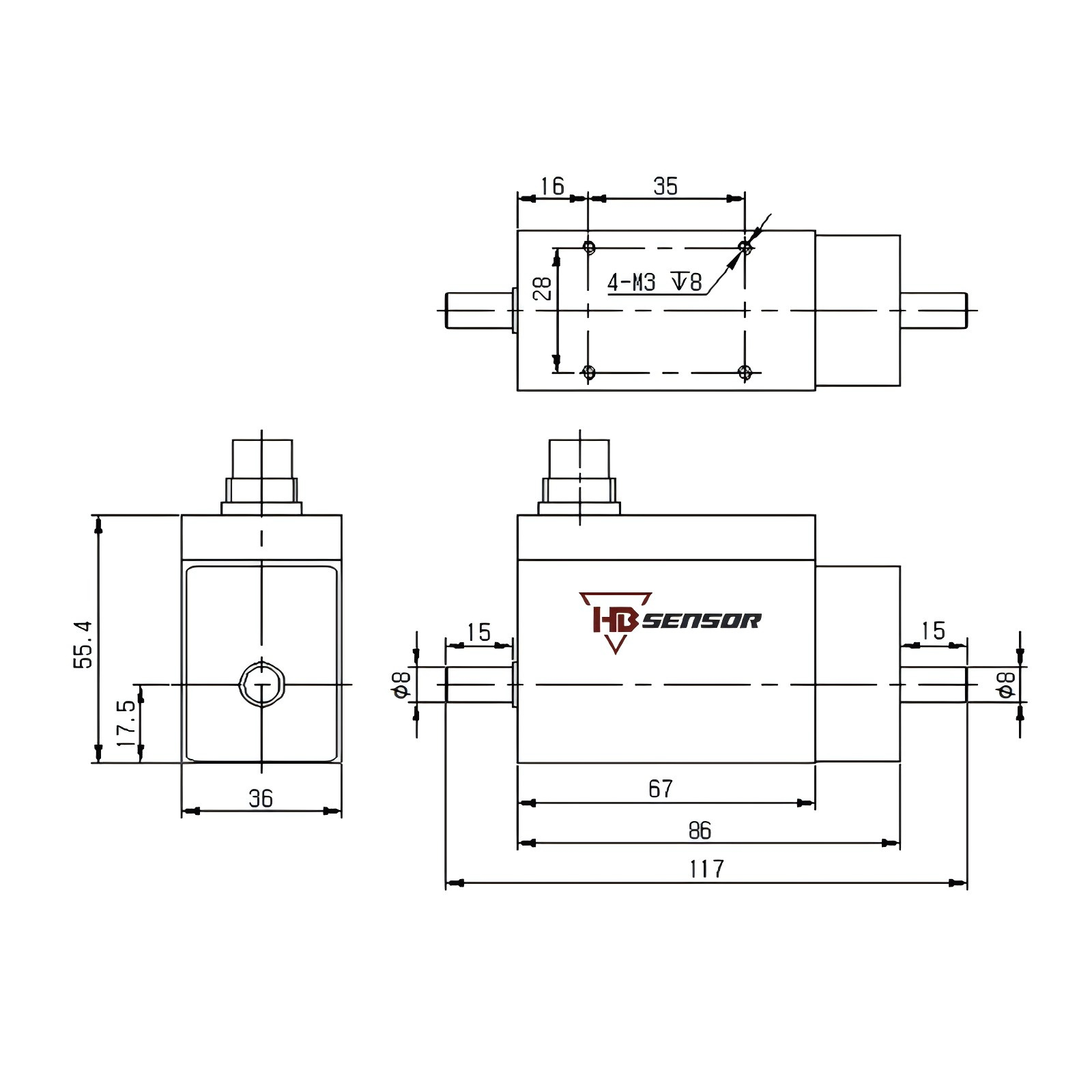

Size
Signal Output
Wires
| Range | 0.1, 0.2, 0.3, 0.4, 0.5, 1, 2, 3, 4, 5 Nm | |
| Accuracy | ±0.1, ±0.2% FS | |
| Zero point temperature effect | ±0.02%FS | |
| Full scale temperature effect | ±0.02%FS | |
| Compensated temperature range | -10-60℃ | |
| Operating temperature range | -20~75℃ | |
| Torque output | 10±5 kHz (5 V amplitude), 0-±5 , 0-±10 , 0-5-10 , 4-12- mA, 0- V, 0-10 V, -20 mA, RS485, RS232, CAN, etc. | |
| Rotation speed measurement | 60 pulses/circle (amplitude V), 4-20 mA, 0- VDC, 0- VDC, RS485, RS232, CAN, etc. | |
| Supply voltage | 12~24VDC | |
| Supply current | Less than mA | |
| Electrical connection | 8-Pin | |
| Overload protection | 200 | |
| Material | Shaft material 17-4PH stainless steel; housing is aluminum | |
As the best quality load cell sensor products manufacturer, we can provide professional solutions for any custom request. Please feel free to contact us now and we will contact you soonest.
You can get a price of this model or send us any question to get any information you would like to know, we will reply to you soonest.
