Model: HBWTQ2050A/B
Type: Non-contact type
Capacity (Nm): 5~500
Material: Shaft Material Stainless Steel
Maximum Speed: 15000 RPM
Rated Output: 10±5 kHz (5 amplitude), 0-±5 , 0-±10VDC, 0-5-10 , 4-12- mA, 0- V, 0-10 V, -20 mA, RS485, RS232, CAN, etc.
Payment Terms: FOB or EXW Shenzhen or GUANGZHOU
The HAIBOSENSOR HBWQ2050A/B is a non-contact dynamic torque sensor with a measuring range of 5-500 Nm and a max speed of up to 15,000 RPM. Its built-in digital monitor provides real-time torque and RPM readings for instant data visualization.
Haibo Sensor offers torque sensors with capacities ranging from 0.5 Nm to 2000 Nm, including standard options like 5 Nm, 10 Nm, 20 Nm, 30 Nm, 50 Nm, and 100 Nm. Custom capacities are available upon request. Each sensor can be paired with a digital display for direct readings or a signal transmitter (0~5V, 0~10V, 0~±10V, or 4-20mA) for PLC/DCS integration
High Accuracy (±0.1-0.5% FS)
Non-Contact Dynamic Torque Sensor
Easy to install
Long term, reliable operation
High-precision, stable, and reliable performance
Torque wrenches
Screwdrivers, and pneumatic tools
Robotic arm force feedback
torque of rotating machinery
engines, drive shafts
Wind turbines, etc.
Capacity

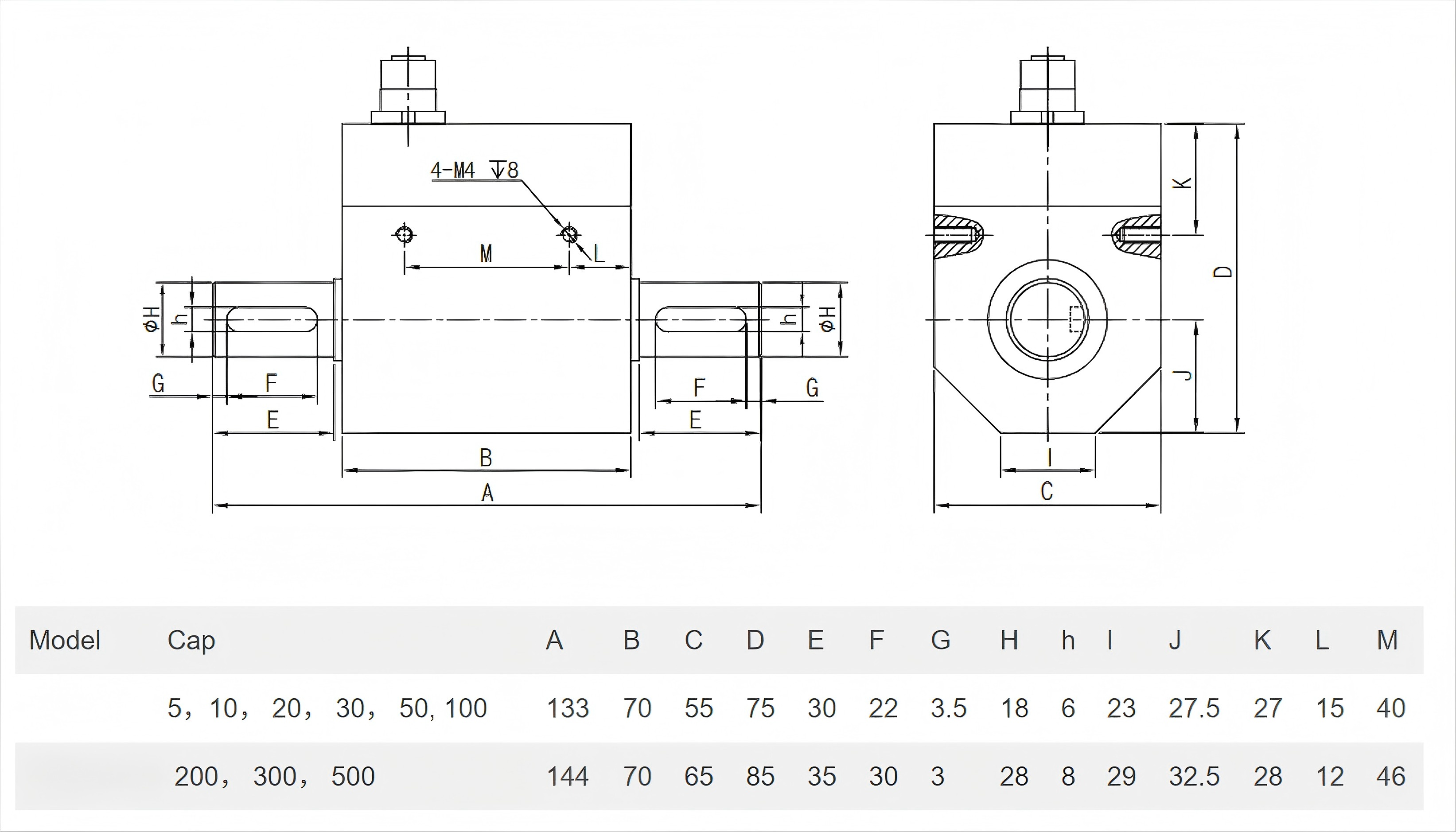

Size
Signal Output
Wires
| Range | 5, 10, 20, 30, 50, 100, 200, 300, 500 | |
| Accuracy | ±0.1, ±0.2% FS | |
| Zero point temperature effect | ±0.02%FS | |
| Full scale temperature effect | ±0.02%FS | |
| Compensated temperature range | -10-60℃ | |
| Operating temperature range | -20~75℃ | |
| Torque output | 10±5 kHz (5 V amplitude), 0-±5 , 0-±10 , 0-5-10 , 4-12- mA, 0- V, 0-10 V, -20 mA, RS485, RS232, CAN, etc. | |
| Rotation speed measurement | 60 pulses/circle (amplitude V) 4-20mA, 0-5VDC, 0-10VDC, RS485, RS232, CAN, etc. | |
| Supply voltage | 12~24VDC | |
| Supply current | Less than mA | |
| Electrical connection | 8-Pin | |
| Overload protection | 200 | |
| Material | Shaft material 17-4PH stainless steel; housing is aluminum | |
