Model: HBWTQ2320
Capacity (Nm): 50, 100, 200, 200,300, 1000,10000 Nm
Material: Shaft material 17-4PH stainless steel or alloy steel; housing is Aluminum
Rated Output: 1.5 mV/V ± 10% F.S.
Payment Terms: FOB or EXW Shenzhen or GUANGZHOU
The model HBWTQ2322 uses resistance strain and an integrated circuit. It is precise, stable, and reliable, with a wide measurement range. Suitable for static torque measurement, it connects via a key (or inner square key) on one end and a flange on the other. It measures torque in both directions and is easy to install and use for medium- and low-range tasks.
High Accuracy (±0.1-0.2% FS)
The resistance strain gauge is an integrated product consisting of a sensitive element and an integrated circuit.
High precision, stable, and reliable performance;
Easy to connect with a screwdriver (electric screwdriver);
Suitable for static torque measurement.
Torque wrenches
Screwdrivers and pneumatic tools
Robotic arm force feedback
torque of rotating machinery
engines, drive shafts
Wind turbines, etc.
Capacity

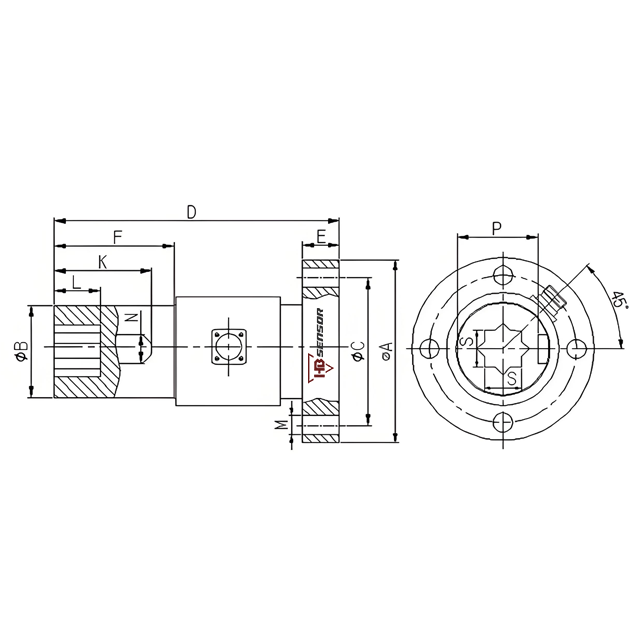

Size
Signal Output
Wires
| 参数项 (Parameter) | 规格值 (Specification) |
|---|---|
| 测量范围 (Measuring Range) | 50, 100, 200, 200,300, 1000-10000 Nm |
| 输出灵敏度 (Output) | 1.5 mV/V ±10% F.S. |
| 精度 (Accuracy) | ±0.1% F.S. 或 ±0.2% F.S. (±0.1% F.S. or ±0.2% F.S.) |
| 零点温度影响 (Zero Temperature Effect) | ±0.03% F.S. |
| 满量程温度影响 (Full Temperature Effect) | ±0.03% F.S. |
| 温度补偿范围 (Compensated Temperature Range) | -10~60℃ |
| 工作温度范围 (Operating Temperature Range) | -20~75℃ |
| 供电电压 (Supply Voltage) | 5~10 VDC |
| 输入电阻 (Input Resistance) | 350±20 Ω |
| 输出电阻 (Output Resistance) | 350±10 Ω |
| 响应频率 (Response Frequency) | 100 μS |
| 绝缘电阻 (Insulation Resistance) | ≥2000 MΩ/100 VDC |
| 安全过载 (Safety Overload) | 150% F.S. |
| 极限过载 (Ultimate Overload) | 200% F.S. |
| 电缆尺寸 (Cable Size) | Φ5×3m |
| 材料 (Material) | 轴材料：17-4PH不锈钢/合金钢，外壳：铝 (Shaft: 17-4PH stainless steel/alloy steel, Housing: Aluminum) |
| 电气连接 (Electrical Connection) | 红/E+，黑/E-，绿/S+，白/S- (Red/E+, Black/E-, Green/S+, White/S-) |
