Model: HBTLWQNLD1
Capacity (Nm): 0-5000Nm
Material: Load Sensor made of 17-4PH stainless steel, with an aluminum housing.
Rated Output: ：±0.1，±0.2%FS
Payment Terms: FOB or EXW Shenzhen or GUANGZHOU
The HBWTQ2950 is a Non-contact Design, minimizing friction loss (up to 30,000 RPM), High-precision Strain Measurement: Strain gauge or optical sensing for real-time dynamic torque (Accuracy: ±0.1% FS).
High Accuracy (±0.1-0.2% FS)
The resistance strain gauge is an integrated product consisting of a sensitive element and an integrated circuit.
High precision, stable, and reliable performance;
Easy to connect with a screwdriver (electric screwdriver);
Suitable for static torque measurement.
Torque wrenches
Screwdrivers and pneumatic tools
Robotic arm force feedback
torque of rotating machinery
engines, drive shafts
Wind turbines, etc.

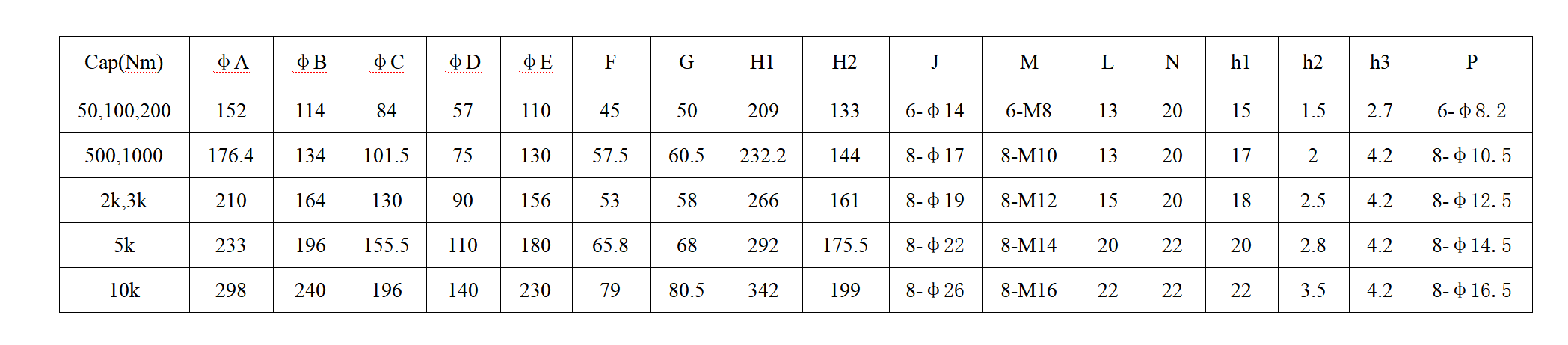

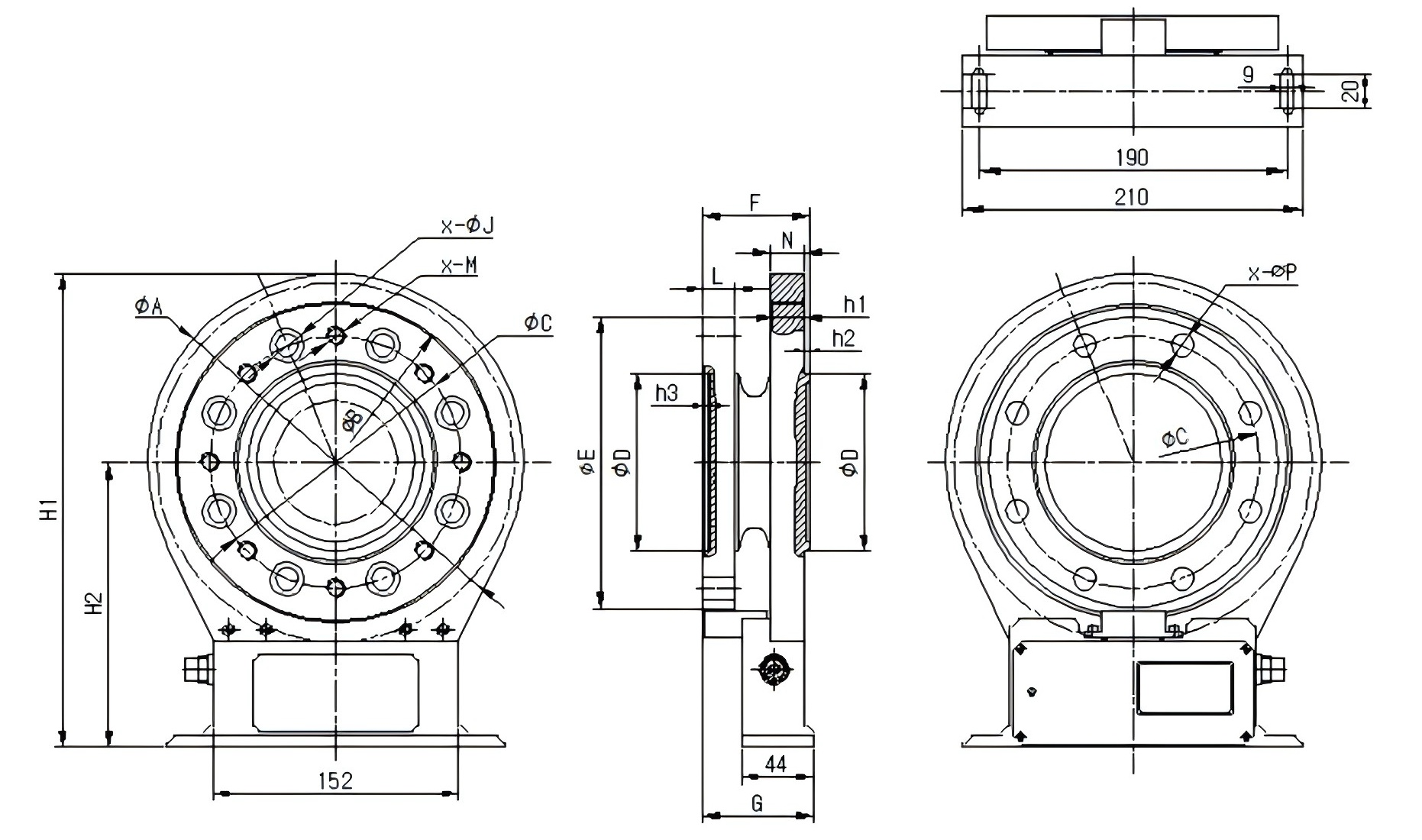

| Parameter 参数 | Specification 规格 | Notes 备注 |
|---|---|---|
| Torque Range 量程 | 50 Nm ~ 10 kNm (Customizable) 可定制 | ±0.1% FS Accuracy 精度 |
| Max Speed 最高转速 | 10,000 RPM (Optional 20,000 RPM) 可选升级 | Non-contact, no bearing wear 无接触磨损 |
| Installation Length 安装长度 | Ultra-Short (Min. 60mm) 超短结构 | Integrated coupling 一体式联轴器 |
| Coupling Type 联轴器类型 | Double Flexible Disc 双弹性膜片联轴器 | Zero-backlash, high torsional stiffness 无回差、高刚性 |
| Output Signal 输出信号 | Analog (±10V, 4-20mA) / Digital (CAN, RS485) | Customizable 可定制 |
| 参数/Parameter | 规格/Specification |
|---|---|
| 量程/Torque Range | 0-5000 Nm |
| 精度/Accuracy | ±0.1% FS, ±0.2% FS (可选/optional) |
| 重复性/Repeatability | ±0.02% FS |
| 零点温度影响/Zero Temp. Effect | ±0.02% FS |
| 满度温度影响/Span Temp. Effect | ±0.02% FS |
| 补偿温度范围/Compensated Temp. | -10~60°C |
| 工作温度范围/Operating Temp. | -20~75°C |
| 输出信号/Output Signal | 10±5kHz, 4-20mA, ±5VDC, ±10VDC, RS485, RS232, CAN |
| 供电电压/Power Supply | 12-24VDC (电流<100mA / current <100mA) |
| 电气连接/Electrical Conn. | 8-Pin |
| 过载保护/Overload Protection | 200% FS |
| 材质/Material | 传感器/Sensor: 17-4PH不锈钢/stainless steel 外壳/Housing: 铝/aluminum |
| 选项/Options | |
| 转速测量/Speed Measurement | 最大转速/Max Speed: 30,000 RPM 脉冲数/Pulses: 60 PPR 输出/Output: 4-20mA, 5V/TTL, ±5VDC, ±10VDC, RS485, RS232, CAN |
| 安装要求/Installation | 轴向偏差/Axial Misalignment: ±0.2mm 角度偏差/Angular Misalignment: 0.4° |
