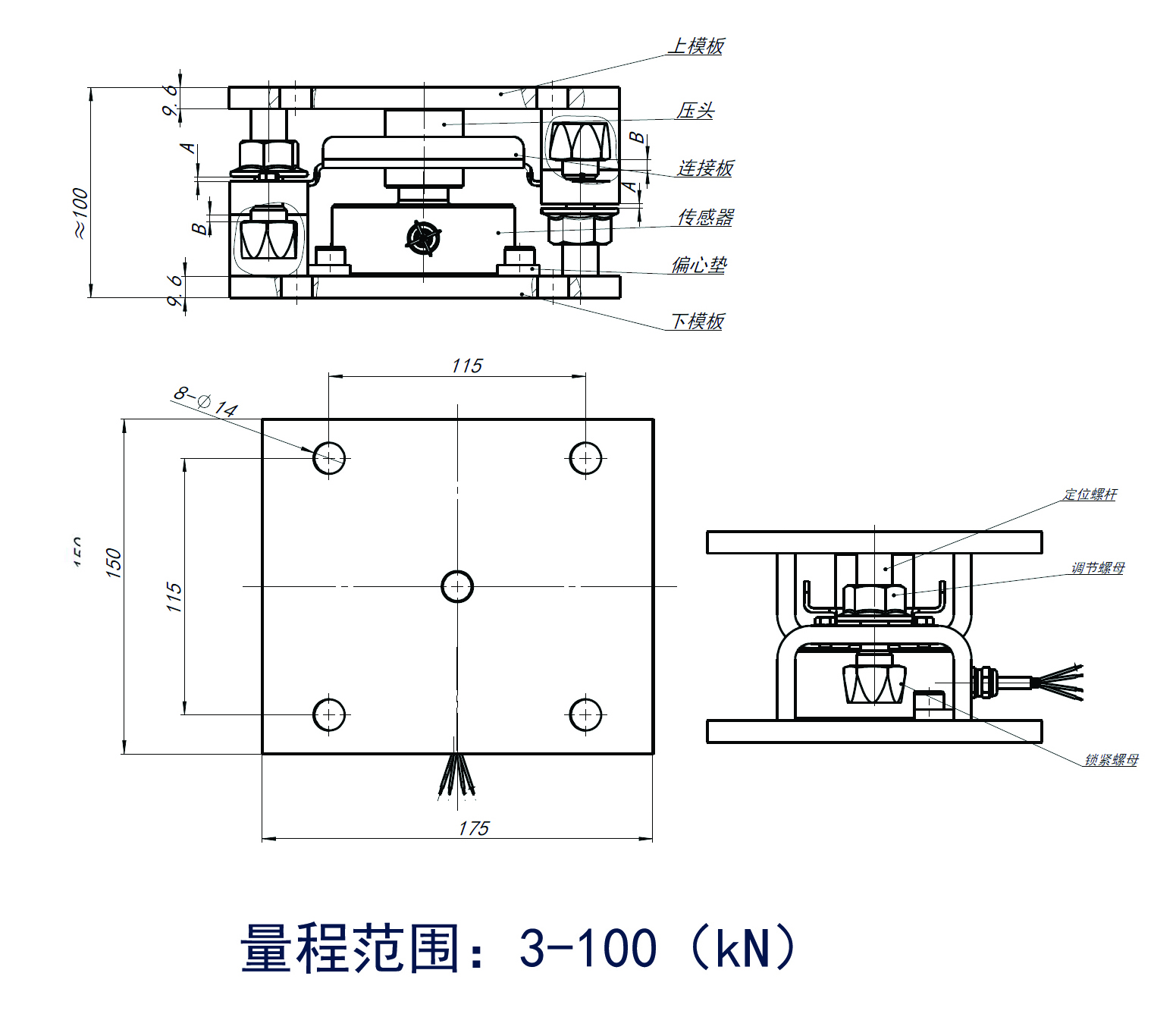

The HaiboSensor HBTLSF800JH mounting kit is designed to securely install shear beam load cells for precise industrial weighing. It includes brackets, bolts, and adapters to prevent misalignment and ensure stable force measurement. With this kit, you get reliable performance in batching, filling, and OEM machinery integration.
Small Capacity: Accurately measures weights up to 10-100 KN
Aluminum alloy or stainless steel construction: We can tailor raw materials to meet customer needs.
IP65/IP66 Protection Rating.
Accuracy: Provides high-precision measurements suitable for applications requiring accurate weight data.
Easy installation.
Wide compatibility with standard load cells.
Hopper scales & silo weighing
Crane scales & overload monitoring
Tension control (e.g., cables, ropes, conveyors)
Machine testing & force measurement
Batching, blending & mixing systems
Belt scales & dynamic weighing
Industrial automation & process control
Material testing machines
Marine/offshore equipment
Aerospace component testing
| Category 类别 | English Specification 英文参数 | Chinese Specification 中文参数 |
|---|---|---|
| Material 材质 | Stainless Steel (AISI 304/316) / Carbon Steel | 不锈钢(304/316) / 碳钢 |
| Load Capacity 量程 | 0.5-100t (customizable) | 0.5-100吨(可定制) |
| Mounting Types 安装类型 | Top/Bottom/Side Mount | 顶部/底部/侧面安装 |
| Surface Treatment 表面处理 | Zinc Plating/Powder Coating/Passivation | 镀锌/喷粉/钝化处理 |
| Accuracy 精度 | ±0.02% FS | ±0.02%满量程 |
| Operating Temp 工作温度 | -30°C to +70°C | -30°C至+70°C |
| Protection Level 防护等级 | IP65 (optional) | IP65 |
| Custom Options 定制选项 | – Bolt length adjustment -Digital Signal |
– 螺栓长度调整
-信号输出 |
| Lead Time 交货期 | Standard: 2-3 weeks Express: 1 week (additional cost) |
标准: 4-5周 |
| 参数名称 (Parameter) | 值/范围/描述 (Value/Range/Description) |
|---|---|
| 额定载荷 (Rated Load) (kN) | 10，15，20，30，50,70，100 (kN) |
| 综合精度 (Comprehensive Precision) | 0.03～0.05%F·S |
| 灵敏度 (Sensitivity) | 2.0 mV/V |
| 蠕变 (Creep) | ±0.02 %F·S/30min |
| 零点输出 (Zero Output) | ±1 %F·S |
| 零点温度影响 (Temperature Effect On Zero) | ±0.02 %F·S/10℃ |
| 输出温度影响 (Temperature Effect On Output) | ±0.02 %F·S/10℃ |
| 工作温度范围 (Operating Temperature Range) | -20℃～+65℃ |
| 输入阻抗 (Input Resistance) | 380±10 Ω |
| 输出阻抗 (Output Resistance) | 350±3 Ω |
| 绝缘电阻 (Insulation Resistance) | >5000 MΩ |
| 安全过载 (Safe Load Limit) | 150% F·S |
| 供桥电压 (Bridge Voltage) (建议 Recommended) | 10V DC |
| 材质 (Material) | 合金钢 (Alloy Steel) |
| 传感器接线方式 (Load Cell Wiring) | |
| 输入+ (Input+) | 红 (Red) |
| 输入- (Input-) | 黑 (Black) |
| 输出+ (Output+) | 绿 (Green) |
| 输出- (Output-) | 白 (White) |
