Both ends of the structure are securely fixed, and the force is applied at the center. This design features a low center of gravity, ensuring easy installation. Additionally, it offers high precision and excellent sealing performance, making it particularly suitable for weighing systems in dry-mixed mortar storage tanks.
Material: Alloy Steel or Stainless Steel
Capacity Range: From a few Newtons (N) up to several kilonewtons (kN)
High Performance and Reliable
Class C3
Hopper scales & silo weighing
Crane scales & overload monitoring
Tension control (e.g., cables, ropes, conveyors)
Machine testing & force measurement
Batching, blending & mixing systems
Belt scales & dynamic weighing
Industrial automation & process control
Material testing machines
Marine/offshore equipment
Aerospace component testing
Wire Length.

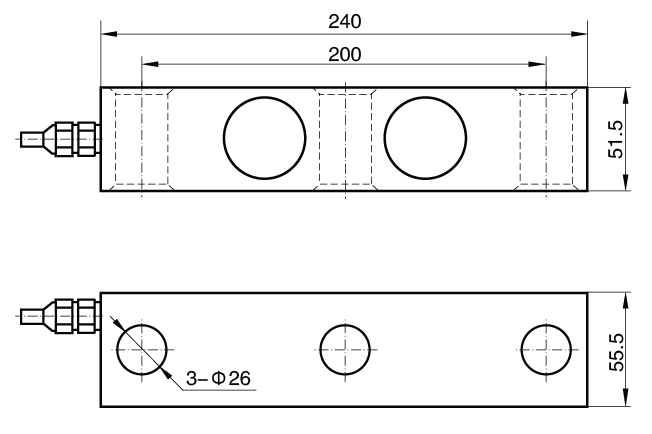

Load Cell Outer Size
ODM/OEM.
Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes, Transmitter.
Package.
| 参数/Parameter | 规格/数值 |
|---|---|
| 额定载荷 (Rated Load) | 10，20，30，50，100,200，300(kN) |
| 综合精度 (Comprehensive Precision) | 0.02～0.05% F·S |
| 灵敏度 (Sensitivity) | 2.0 mV/V |
| 蠕变 (Creep) | ±0.02% F·S/30 |
| 零点输出 (Zero Output) | ±1% F·S |
| 零点温度影响 (Temperature Effect On Zero) | ±0.02% F·S/10℃ |
| 输出温度影响 (Temperature Effect On Output) | ±0.02% F·S/10℃ |
| 工作温度 (Operating Temperature Range) | -20℃～+65℃ |
| 输入阻抗 (Input Resistance) | 750±15 Ω |
| 输出阻抗 (Output Resistance) | 700±5 Ω |
| 绝缘电阻 (Insulation Resistance) | ≥5000 MΩ |
| 安全过载 (Safe Load Limit) | 150% F·S |
| 供桥电压 (Bridge Voltage) | 建议 10V DC |
| 材质 (Material) | 合金钢（Alloy Steel）or不锈钢（Stainless Steel） |
| 传感器接线方式 (Load Cell Connection) | 输入+: 红 (Input+: Red) 输入-: 黑 (Input-: Black) 输出+: 绿 (Output+: Green) 输出-: 白 (Output-: White) |
| 变送器接线方式 (Amplifier Connection) | 电源: 红 (Power: Red) 公共端: 蓝 (Public: Blue) 输出: 白 (Output: White) |
