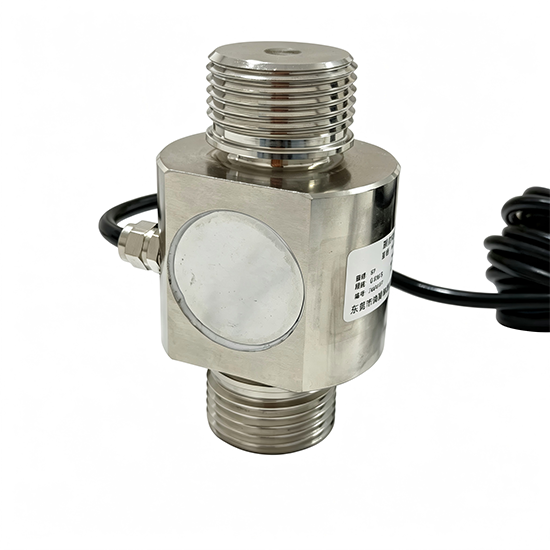

IP66 protection, high precision 0.03% C3. Suitable for silos, dry mortar tanks, and livestock tanks. Custom explosion-proof type available. Matched with flanges, display meters, amplifiers, and digital signal modules.10T Flange load cell, 10 ton column force sensor, HB3-D01 10T load cell, CL3-D01 weighing sensor, silo load cell 10 ton, explosion-proof load cell

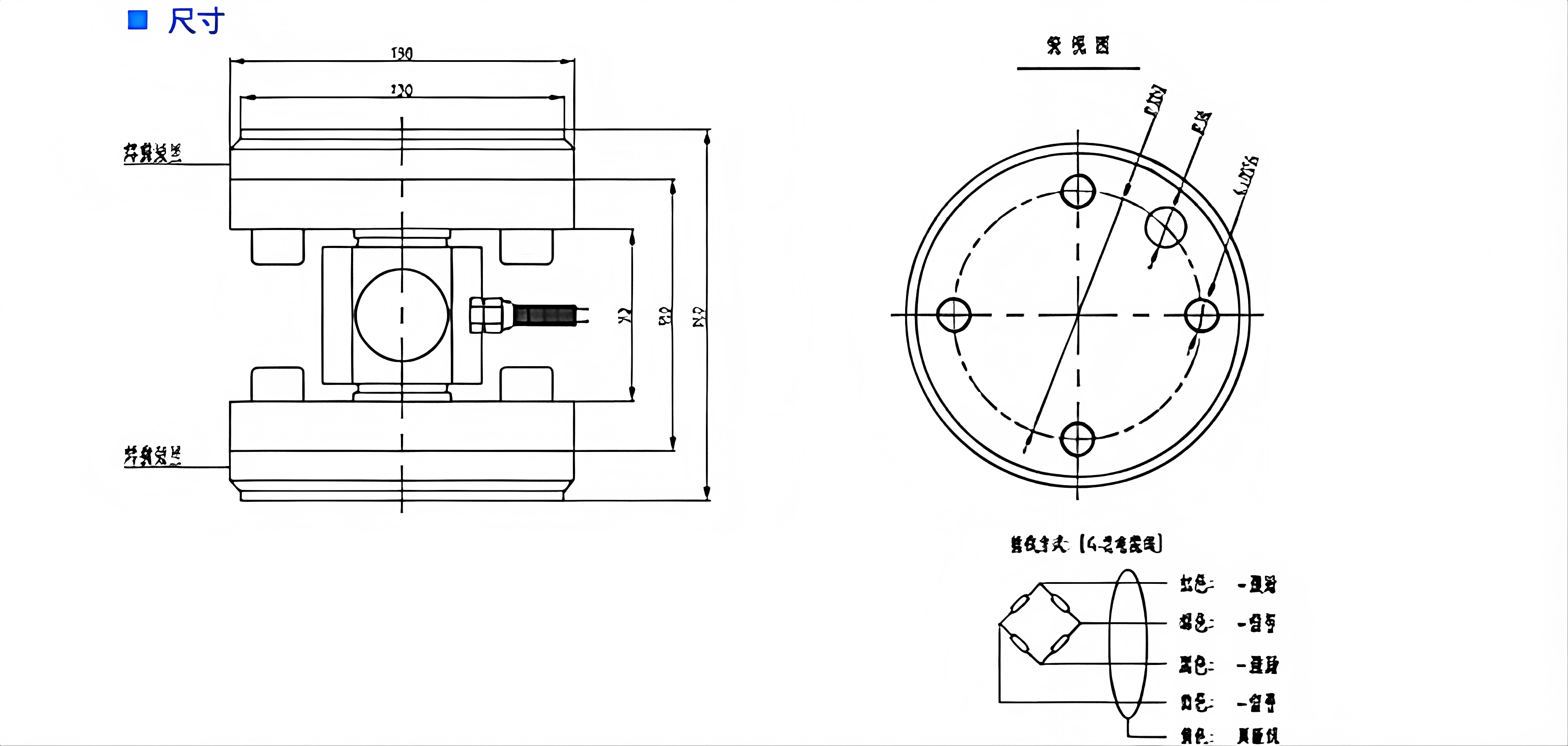

| Item | Specification |
|---|---|
| Model | HB3-D01 / CL3-D01 |
| Rated Capacity | 10T |
| Full Range | 2T ~ 30T |
| Accuracy | 0.03% C3 |
| Protection | IP66 |
| Dimension | 138×130×157 mm |

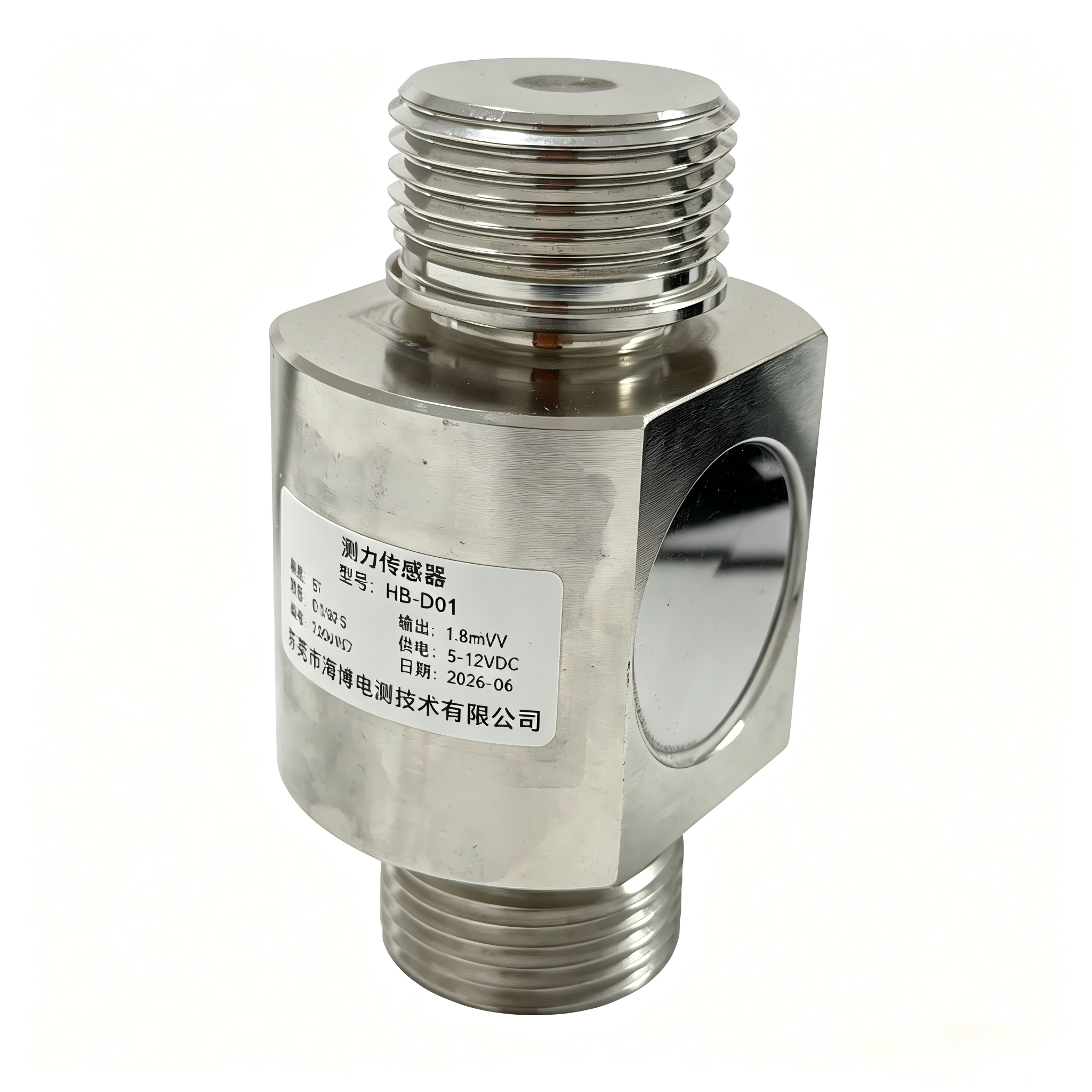

The 10T column load cell (Model HB3-D01/CL3-D01) is a core product for large-tonnage industrial measurement. With a rated capacity of 10 tons, it is manufactured in accordance with OIML R60 standards and features a precision class of 0.03% C3. It is widely used for weighing and force measurement of industrial tanks and silos.

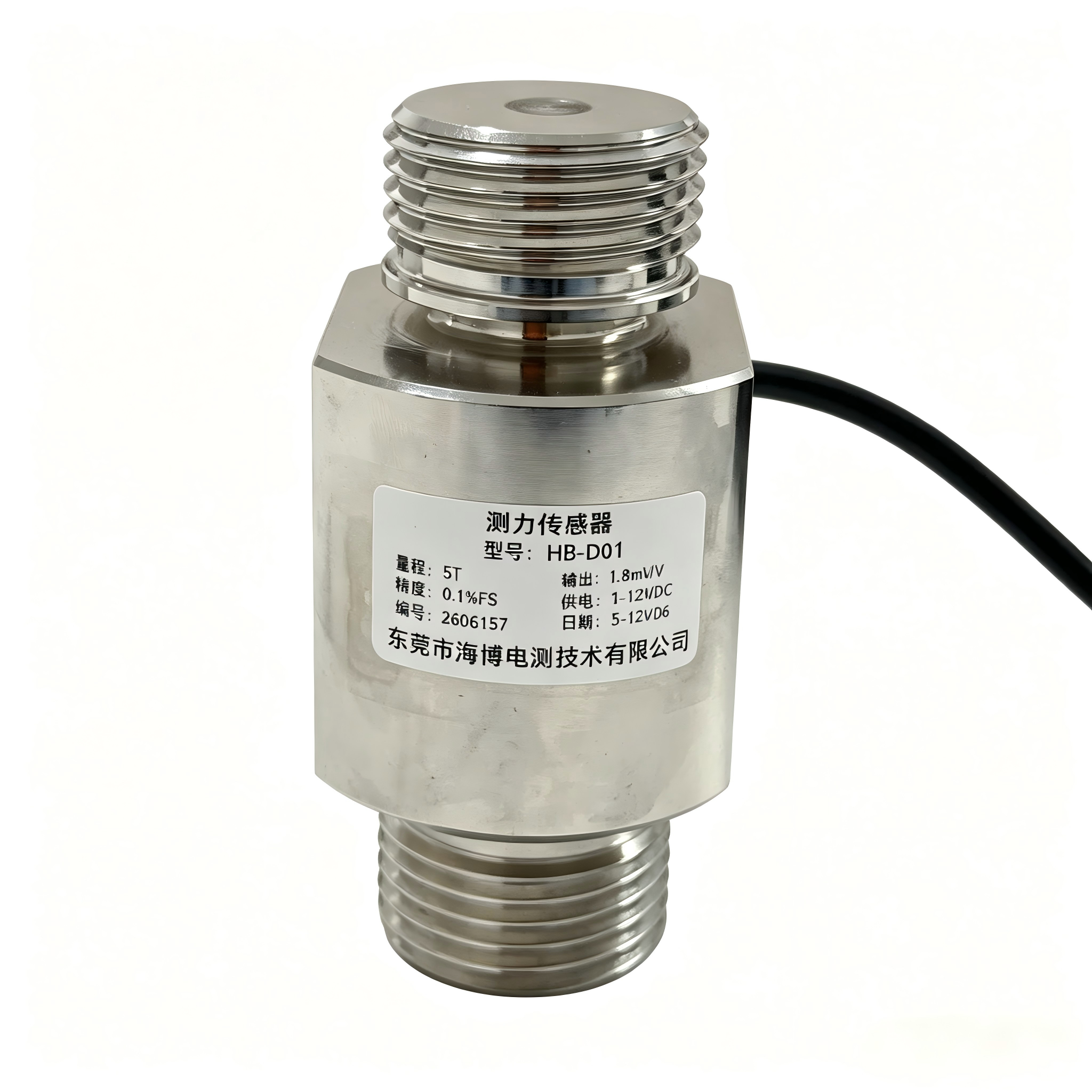

This load cell is made of high-quality alloy steel with electroless nickel plating, and the waterproof connector adopts electrolytically polished stainless steel for excellent corrosion and impact resistance. It has superior performance in non-linearity, hysteresis and creep. Equipped with temperature compensation, it ensures stable data output and long service life over 1,000,000 cycles, with maximum deformation less than 0.5mm. Adopting silicone sealing, it reaches IP66 protection grade, suitable for dusty and humid working conditions.
It has stable electrical performance with standard sensitivity of 2.0±0.002 mV/V. Equipped with a 4-core 5m PVC cable and insulation impedance over 5000 MΩ. The safe load is 150% of rated load and ultimate load is 300%, with strong overload resistance. The package includes a 1.8kg sensor body and matched welded flanges (4 pcs per set, 2kg each). Standard flange size ensures easy installation and good compatibility. Wide temperature range enables stable operation in various environments.

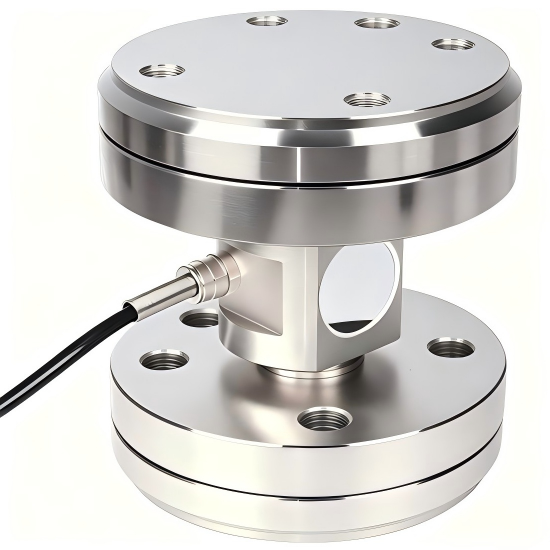

This 10T Flange load cell features strong load capacity and IP66 high protection. It is widely used in industrial fields:
With compensation temperature from -10℃ to +40℃ and operating temperature from -40℃ to +65℃, it can work stably all day long indoors and outdoors.
We provide diversified customization for 10T Flange force sensor to meet different working conditions:

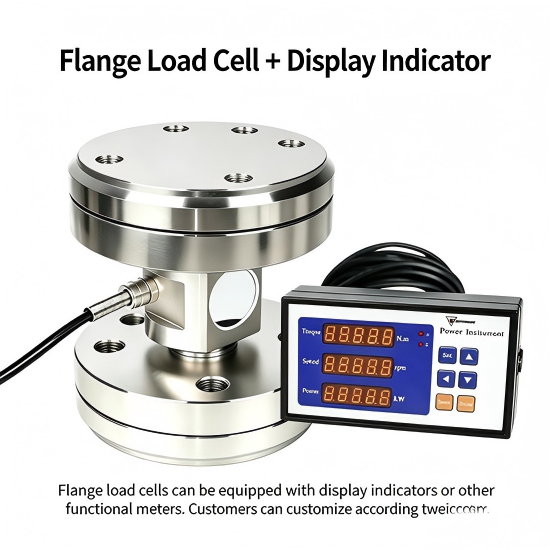

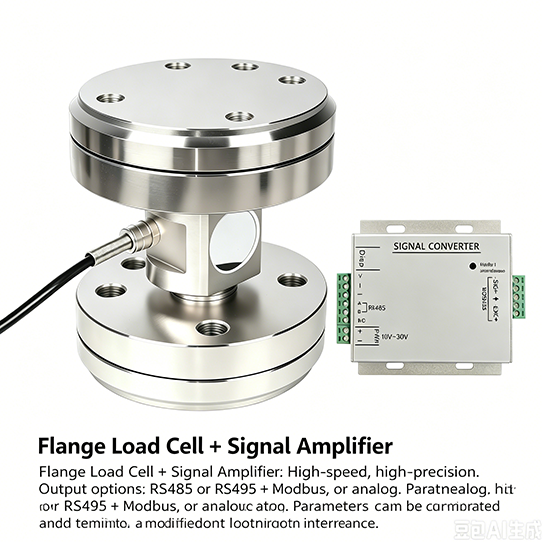

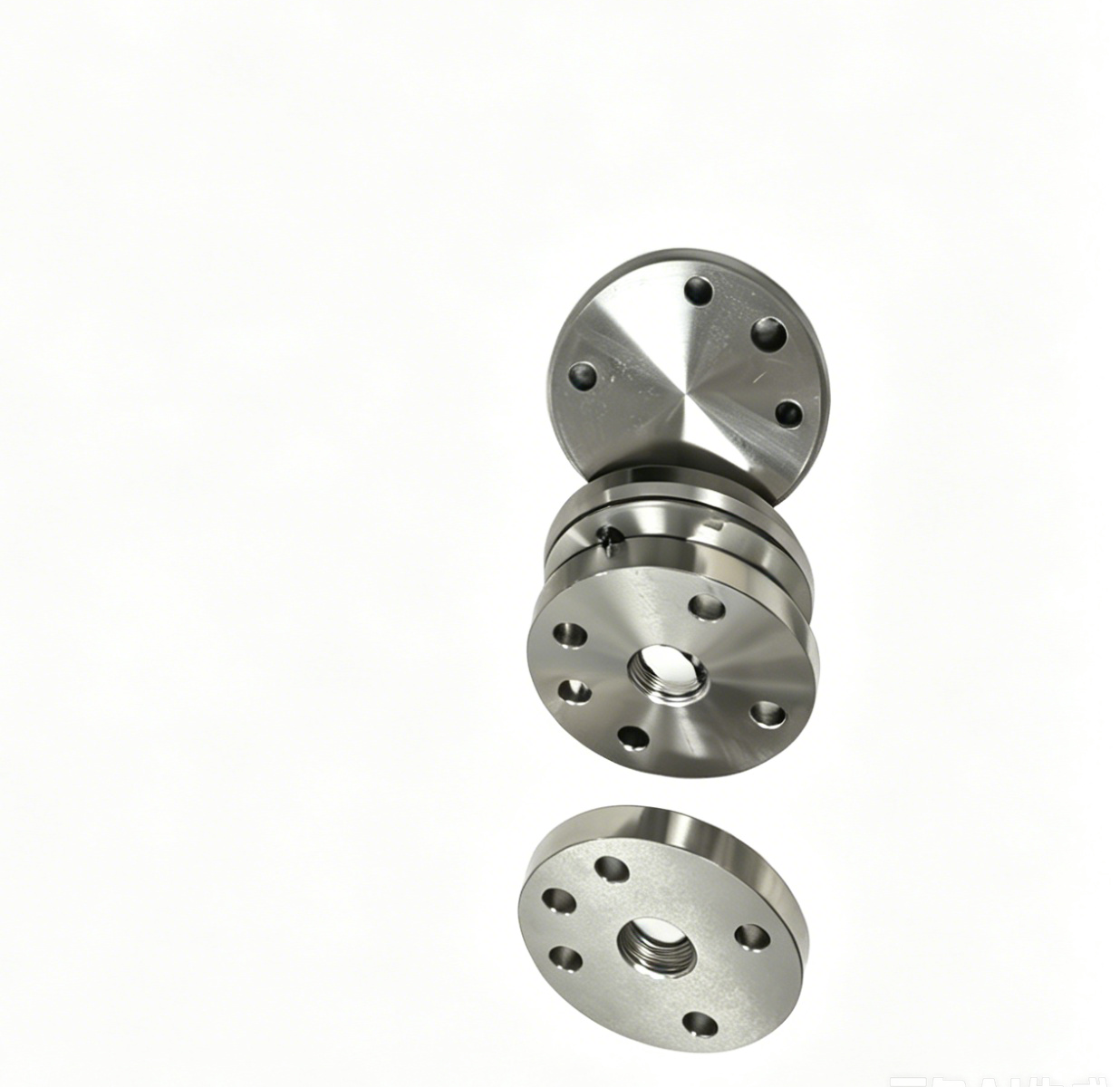

We supply fully matched accessories to build a complete weighing system:
All accessories are perfectly matched with HB3-D01/CL3-D01 10T load cell, plug and play without re-debugging.
Item | English Description | Technical Index |
Basic Information | ||
Model | Model Number | HB3-D01 / CL3-D01 |
Type | Load Cell Type | Column Weighing & Force Sensor |
Compliance Standard | International Standard | OIML R60, NIST HB44 |
Rated Capacity | Main Rated Capacity | 10 Ton (10T) |
Full Range | Full Capacity Range | 2T / 3T / 5T / 10T / 20T / 30T |
Accuracy Class | Accuracy Class | 0.03% C3 |
Max Division | Maximum Verification Division | Up to 3000d |
Metrological Performance | ||
Rated Output | Rated Output Sensitivity | 2.0 ± 0.002 mV/V |
Zero Balance | Zero Load Output | ±1% of Emax |
Repeatability | Repeatability Error | ≤ ±0.015% of AL |
Creep (30 min) | Creep (30 minutes) | ≤ ±0.030% of AL |
Creep Recovery | Creep Recovery (30 min) | ≤ ±0.030% of AL |
Temp. Effect on Zero | Temperature Effect on Min. Dead Load | ≤ ±0.0023% of Emax/°C |
Temp. Effect on Span | Temperature Effect on Sensitivity | ≤ ±0.0020% of AL/°C |
Electrical Parameters | ||
Excitation Voltage | Recommended Excitation | 5 ~ 15 V AC/DC |
Input Impedance | Input Impedance | 384 ± 5 Ω |
Output Impedance | Output Impedance | 350 ± 3 Ω |
Insulation Resistance | Insulation Resistance (@50VDC) | > 5000 MΩ |
Cable Type | Cable Specification | 4-wire cable, OD Φ5.5 mm |
Cable Length | Standard Cable Length | 5.0 m |
Load Ratings | ||
Safe Overload | Safe Overload Limit | 150% of Rated Capacity |
Ultimate Overload | Ultimate Overload Limit | 300% of Rated Capacity |
Deflection | Maximum Deflection | < 0.5 mm |
Fatigue Life | Fatigue Life | > 1,000,000 cycles at rated load |
Environmental Ratings | ||
Compensated Temp. | Compensated Temperature Range | -10°C ~ +40°C (14°F ~ 104°F) |
Operating Temp. | Operating Temperature Range | -40°C ~ +65°C (-40°F ~ 149°F) |
Storage Temp. | Storage Temperature Range | -40°C ~ +80°C (-40°F ~ 176°F) |
Protection Class | Ingress Protection Rating | IP66 (Silicone Sealed) |
Material & Construction | ||
Elastic Body Material | Load Cell Material | High-quality Alloy Steel with Electroless Nickel Plating |
Connector Material | Waterproof Connector Material | Electrolytic Polished Stainless Steel |
Single Unit Weight | Load Cell Weight | 1.8 kg |
Flange Weight | Single Flange Weight | 2 kg |
Flange Set | Standard Flange Kit | 4 welded flanges per set |
Optional Configurations | ||
Material Option | Custom Material | Standard Nickel-plated Alloy Steel / General Alloy Steel |
Explosion-proof | Explosion-proof Version | Optional Ex-rated model |
Custom Flange | Flange Customization | Custom size & mounting hole pattern |
Accessories | Supporting Accessories | Weighing Indicator, Signal Amplifier, Digital Signal Module |
Our 10 ton column load cell (HB3-D01/CL3-D01) features standard 10T capacity, IP66 protection and high precision. Explosion-proof type and custom flanges are available. Matched with display meters, amplifiers and digital modules, it fully meets weighing requirements of dry mortar tanks, livestock tanks and silos.
If you need 10T load cells, matching flanges or weighing system accessories, please feel free to contact us. We will provide model selection, quotation and technical documents according to your demands. Original products in stock and custom service available. Looking forward to cooperation!
As the best quality load cell sensor products manufacturer, we can provide professional solutions for any custom request. Please feel free to contact us now and we will contact you soonest.
You can get a price of this model or send us any question to get any information you would like to know, we will reply to you soonest.
