Strain gauges (sometimes referred to as strain sensors) are sensors whose resistance varies with the applied force. They can convert physical quantities such as force, pressure, tension, and weight into changes in resistance, thereby enabling the measurement of these physical quantities. As one of the most crucial sensors in electrical measurement technology, strain gauges are primarily used for measuring mechanical quantities.

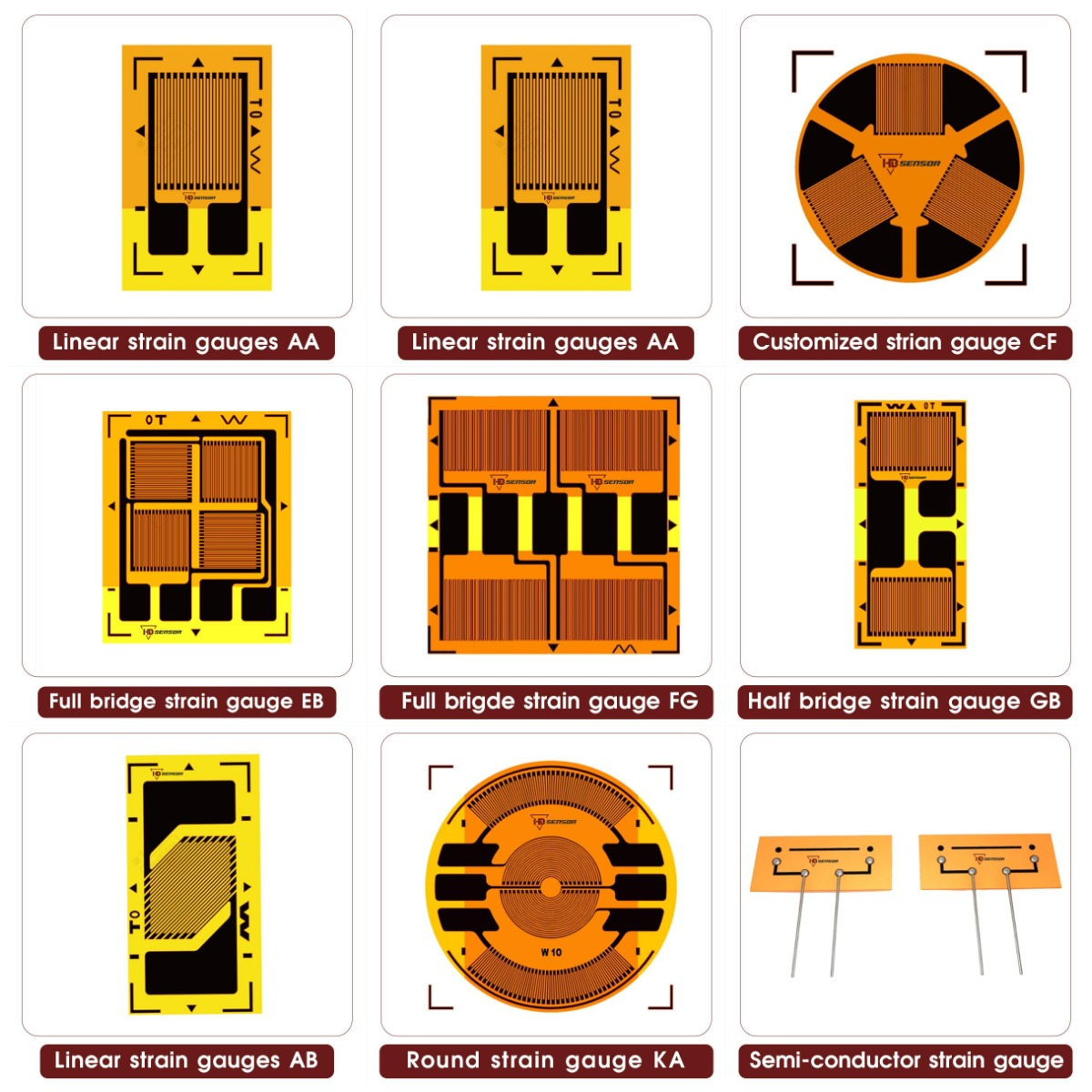

Foil strain gauges come in a wide variety of types. When you are looking for a strain gauge, you can refer to relevant information and determine which type is suitable for your solution.

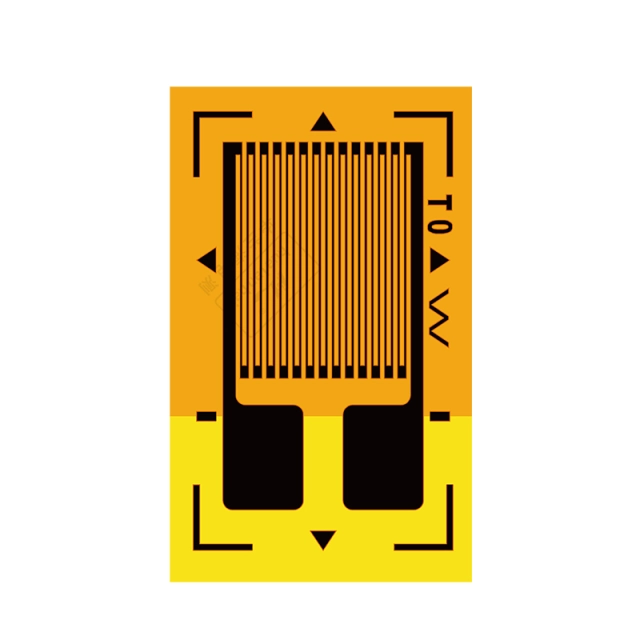

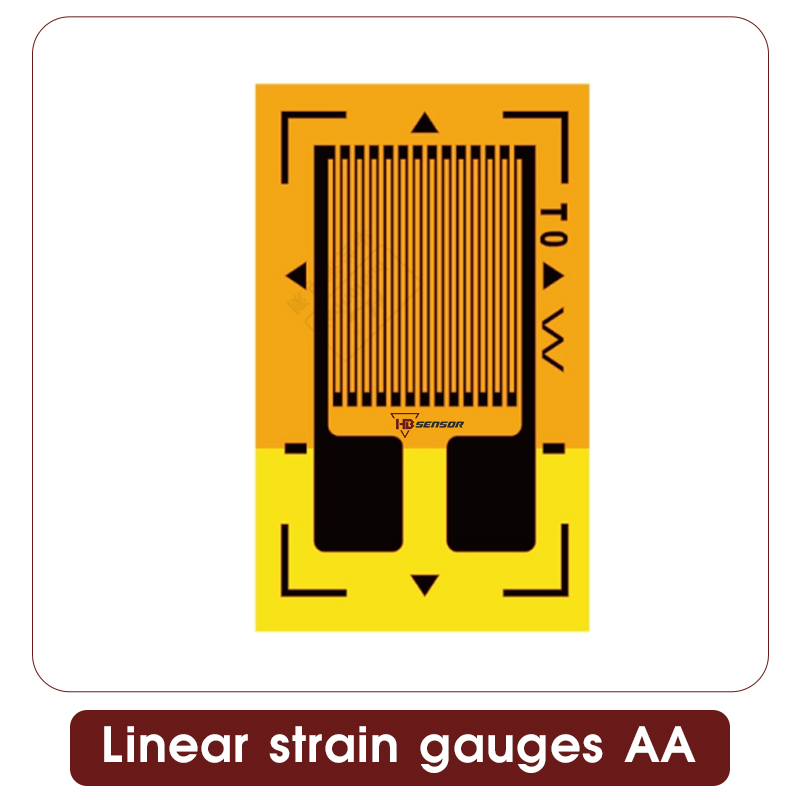

BF350-3AA

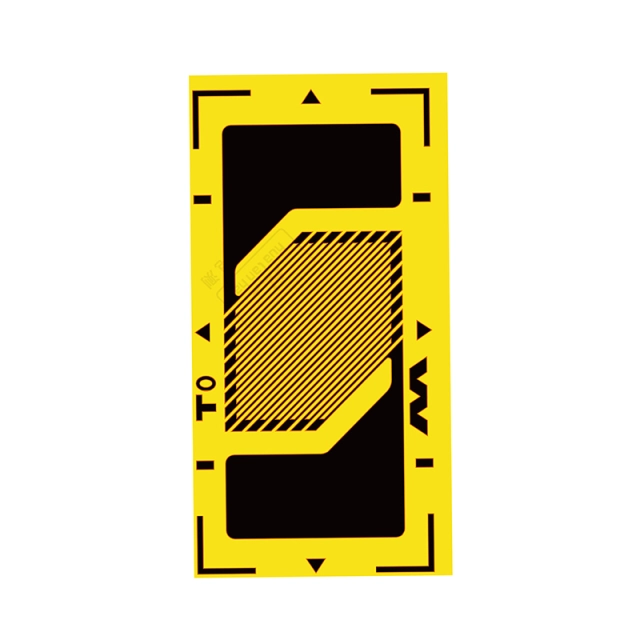

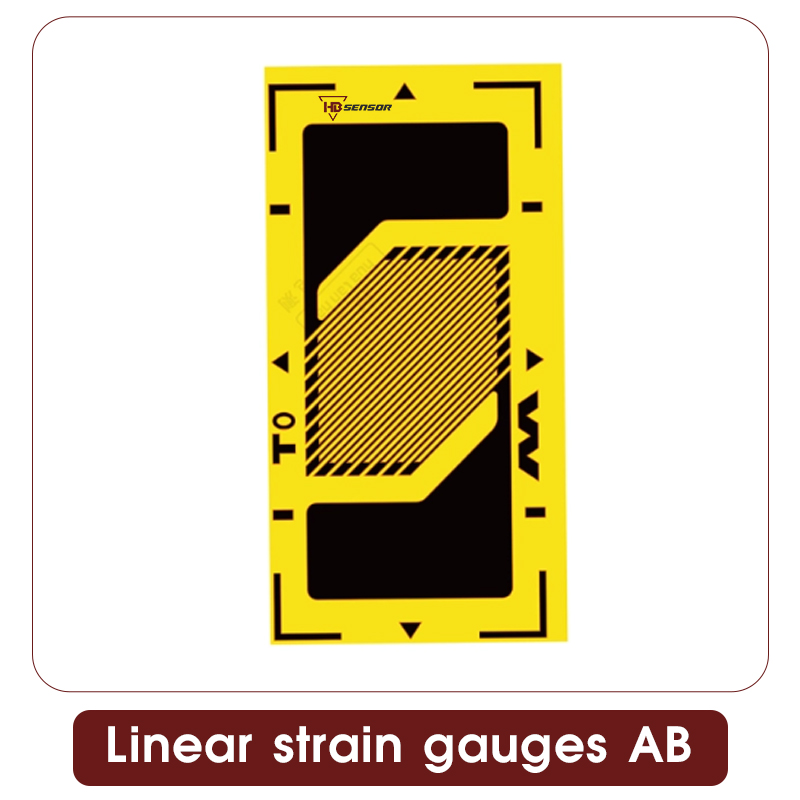

BF350-3AB

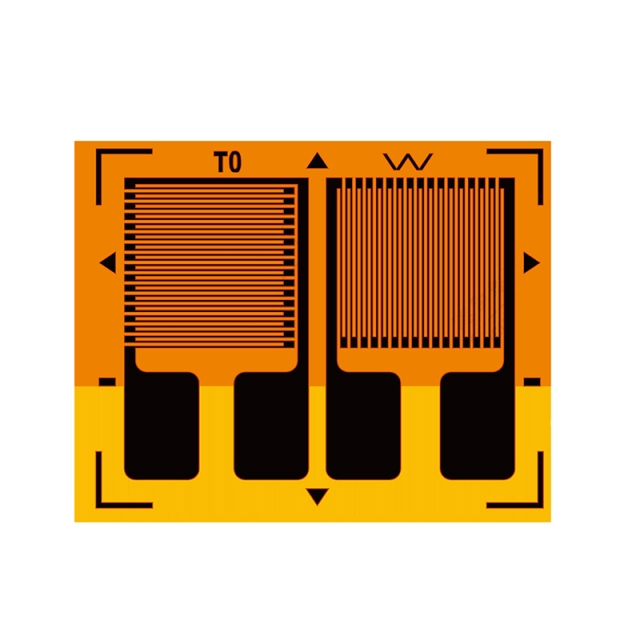

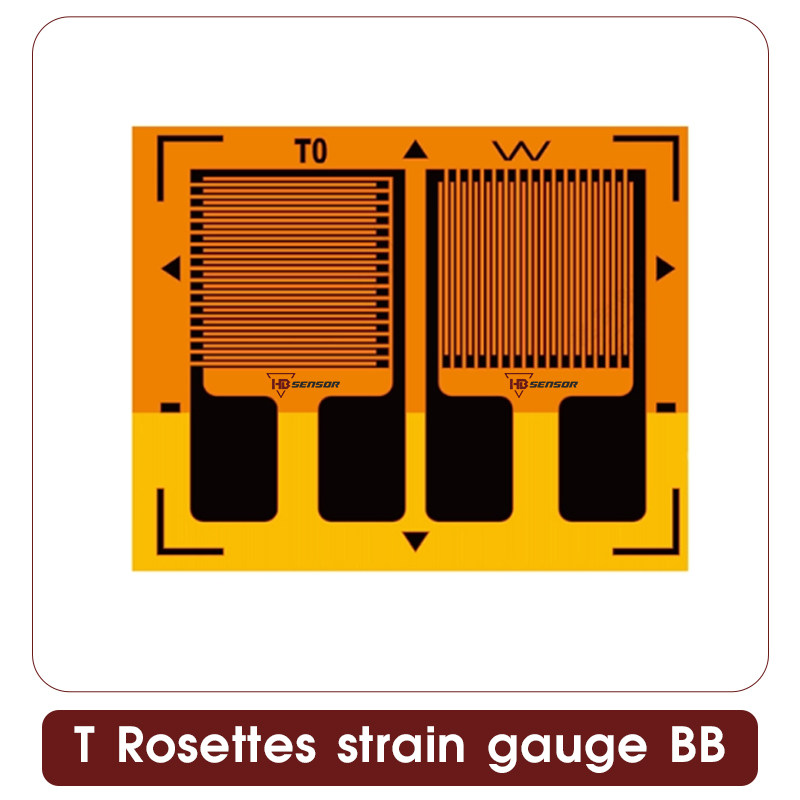

BF350-3BB

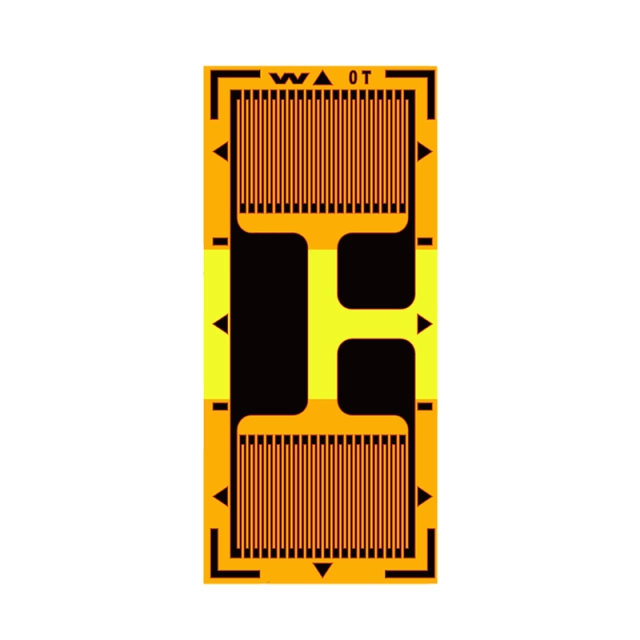

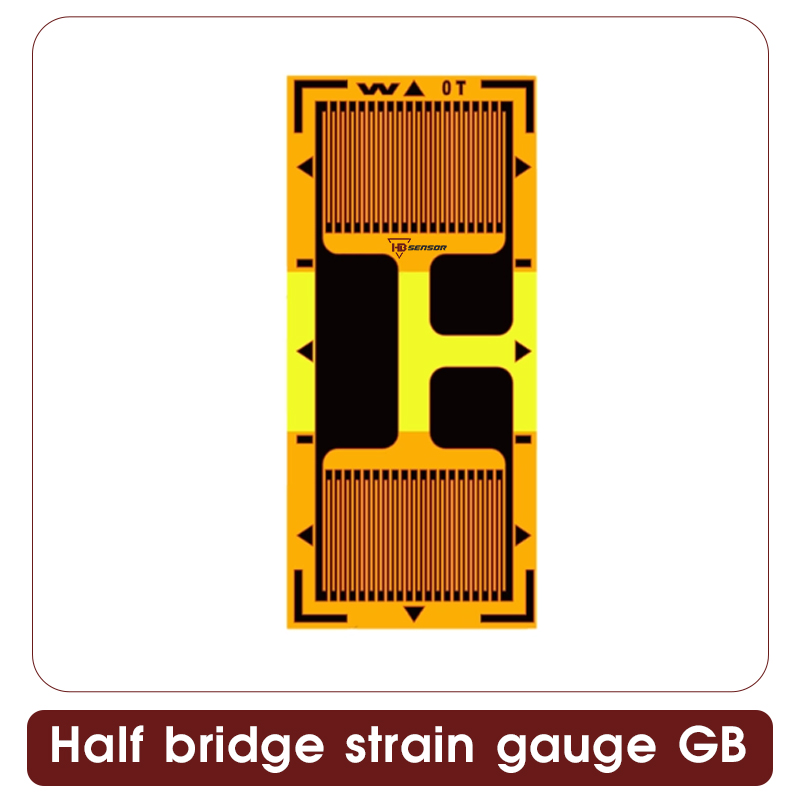

BF350-GB,BF350-GB-A, BF350-GB-B,BF350-GB-C,BF350-GB-D

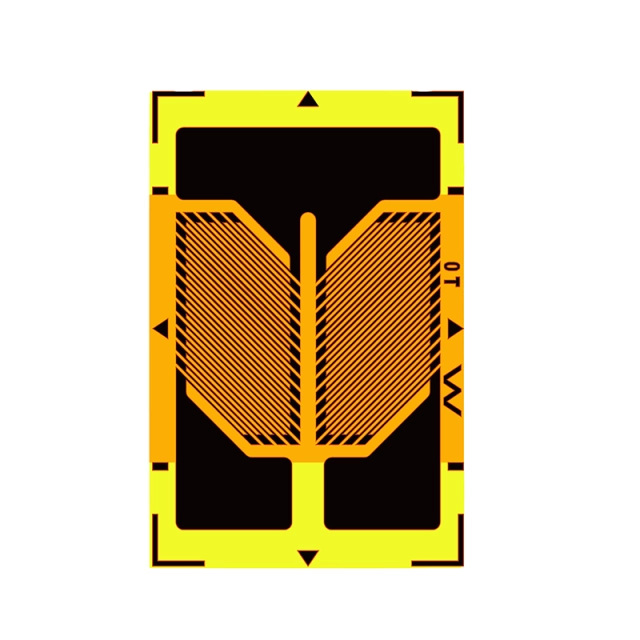

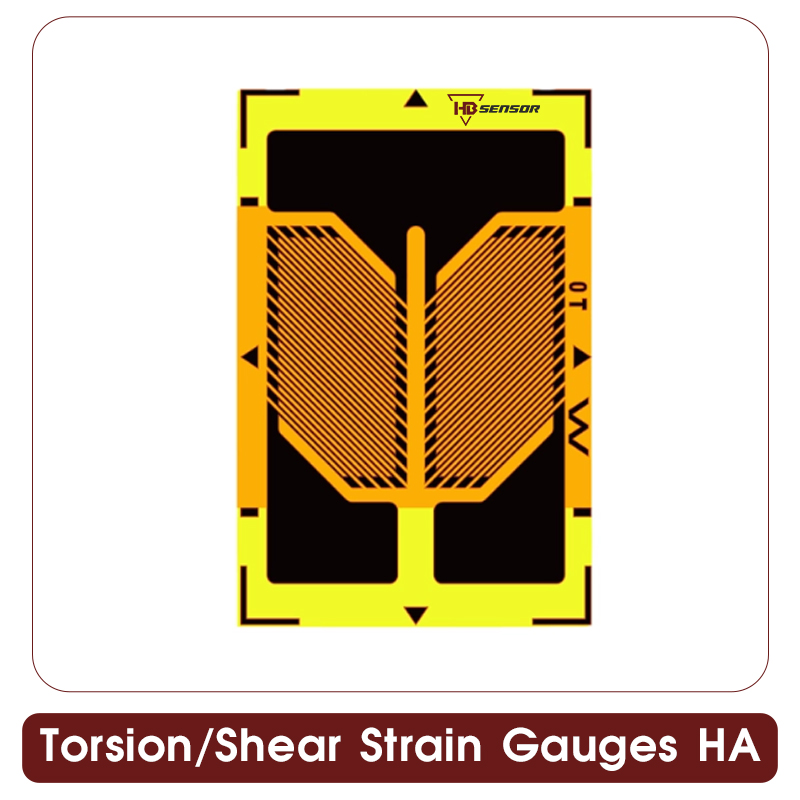

BF350-3HA,BF350-4HA,BF1000-3HA,BF1000-4HA

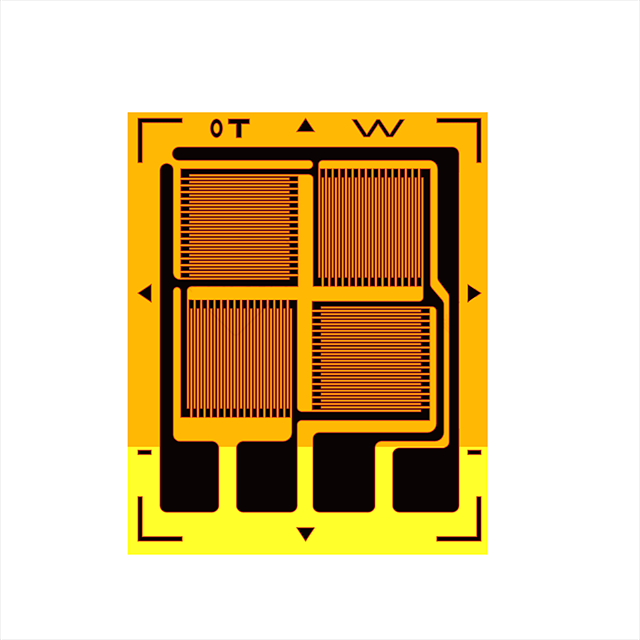

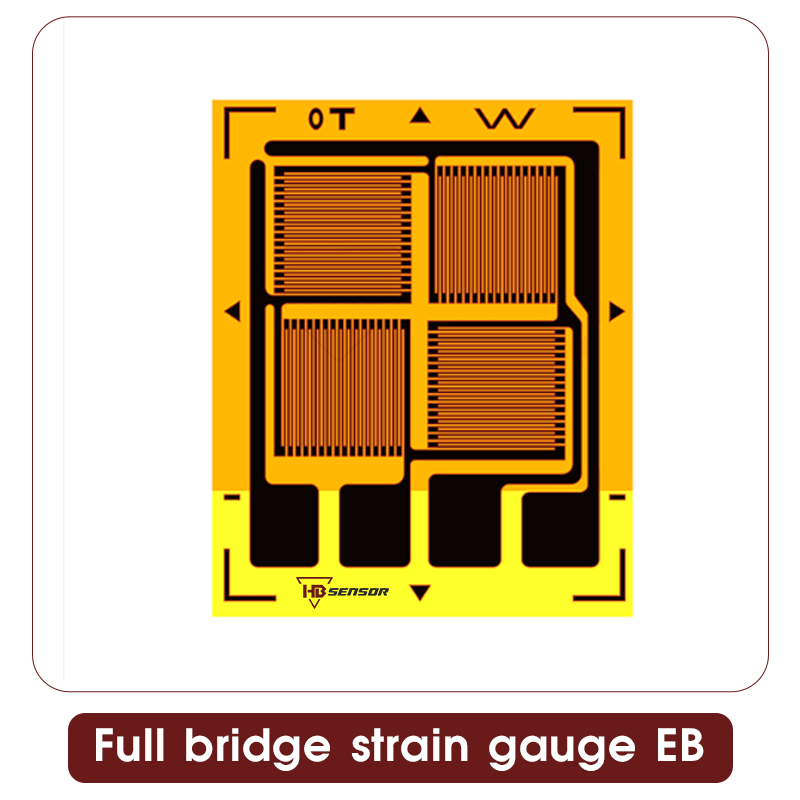

BF350-3EB-A,BF100-3EB-A

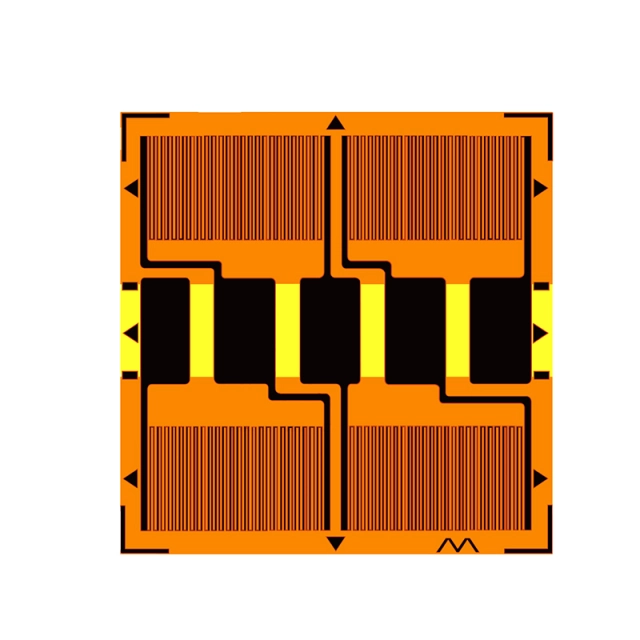

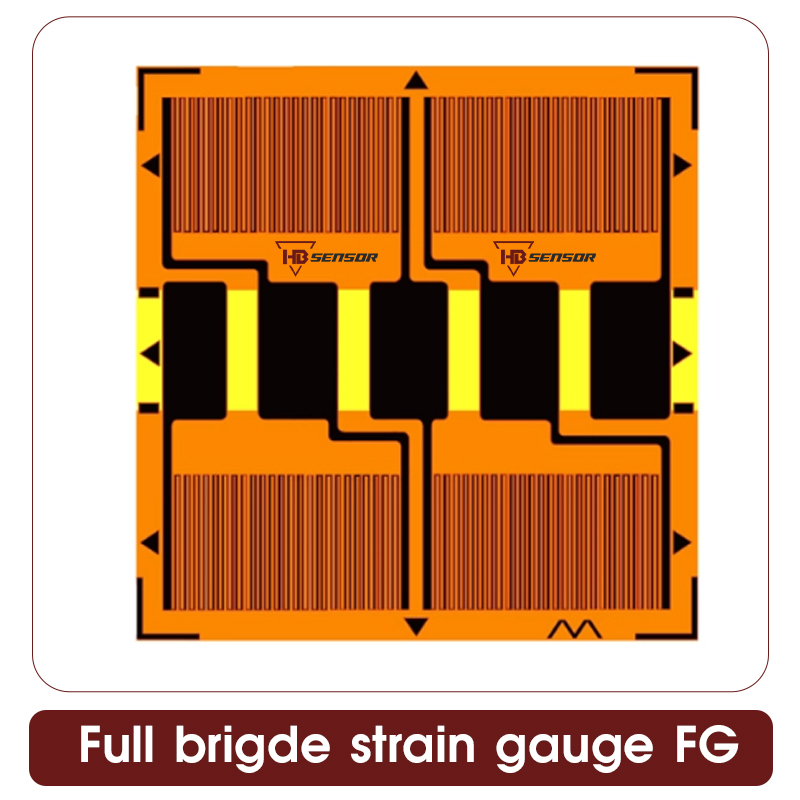

FG

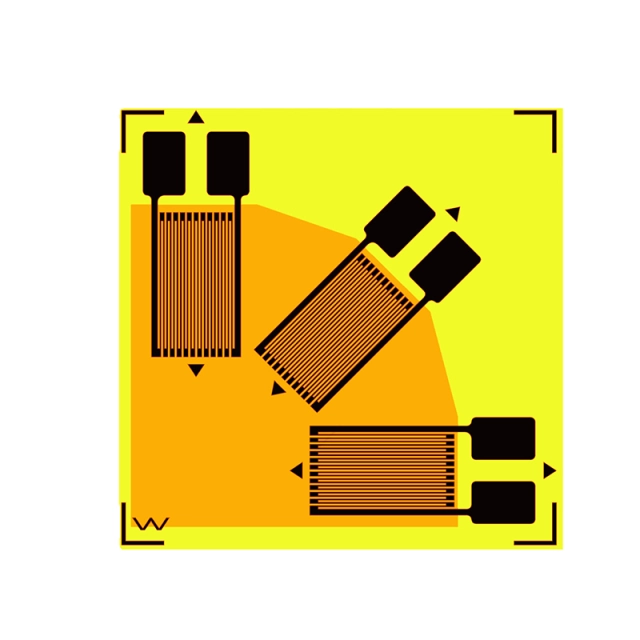

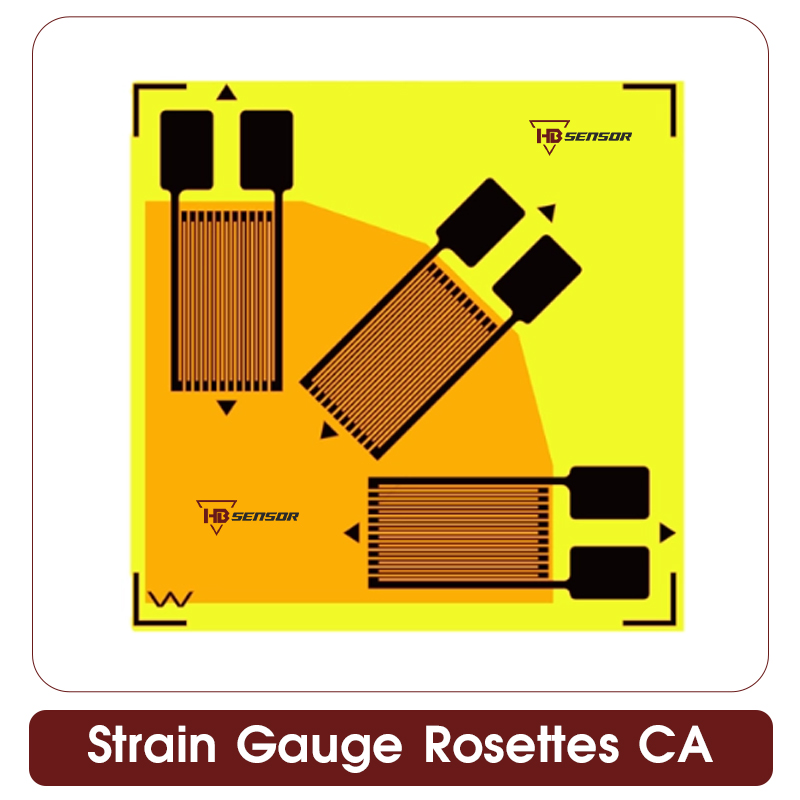

CA

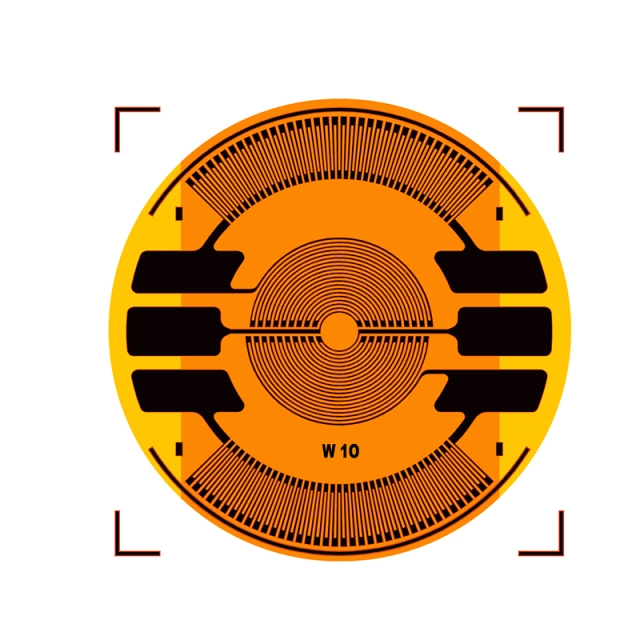

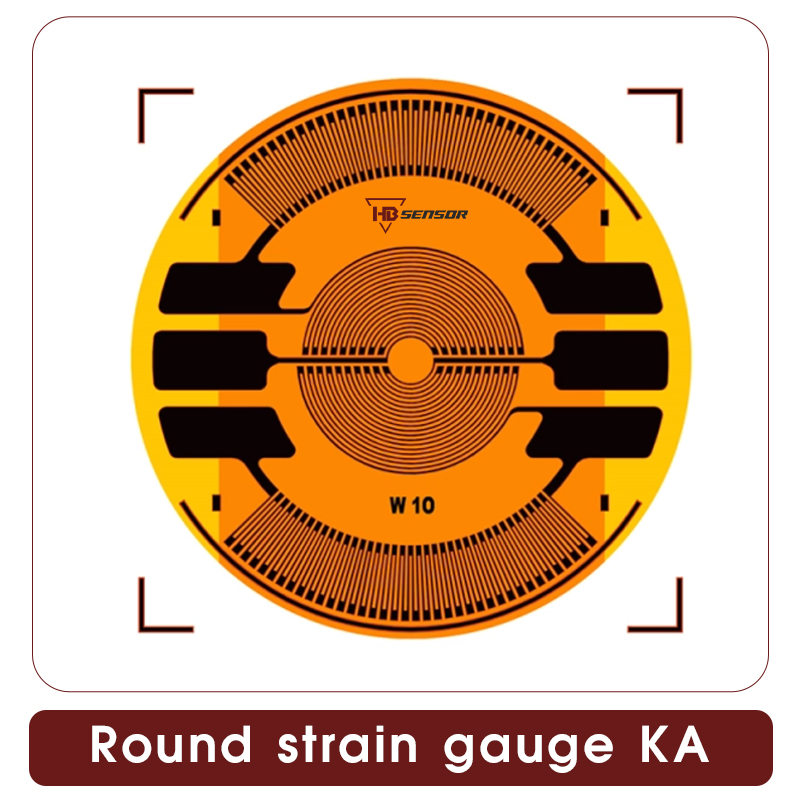

KA

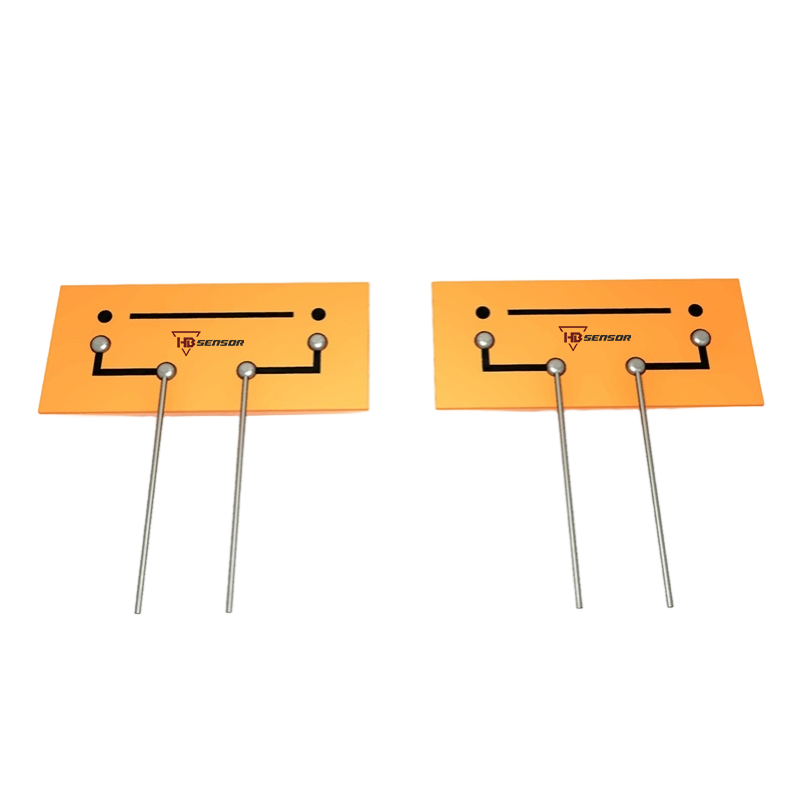

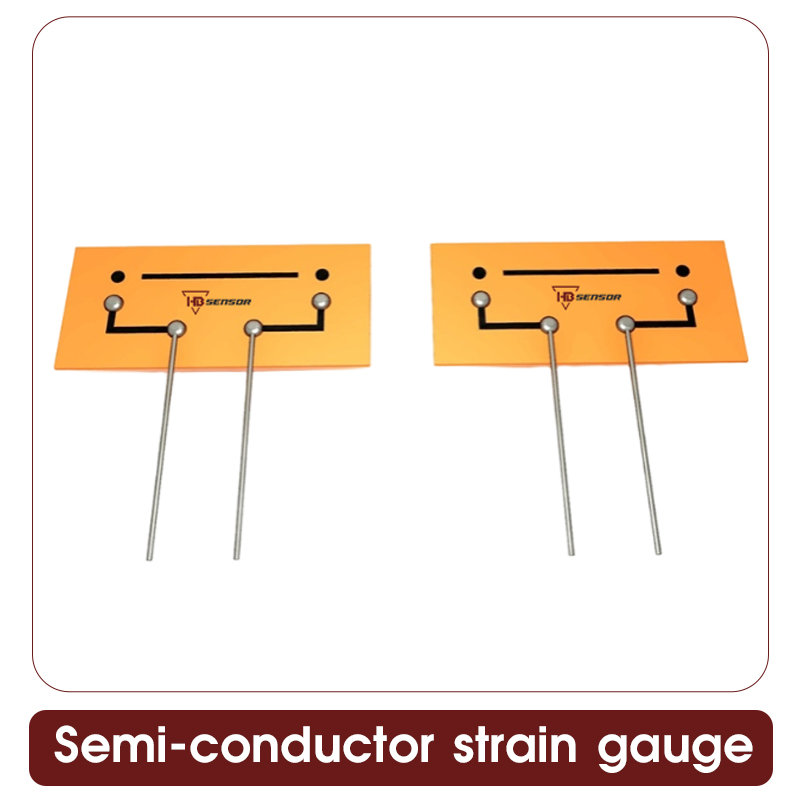

SEMI

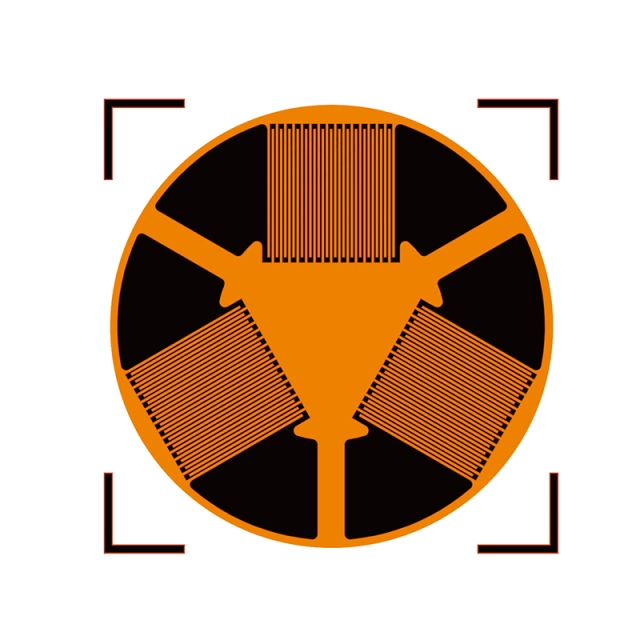

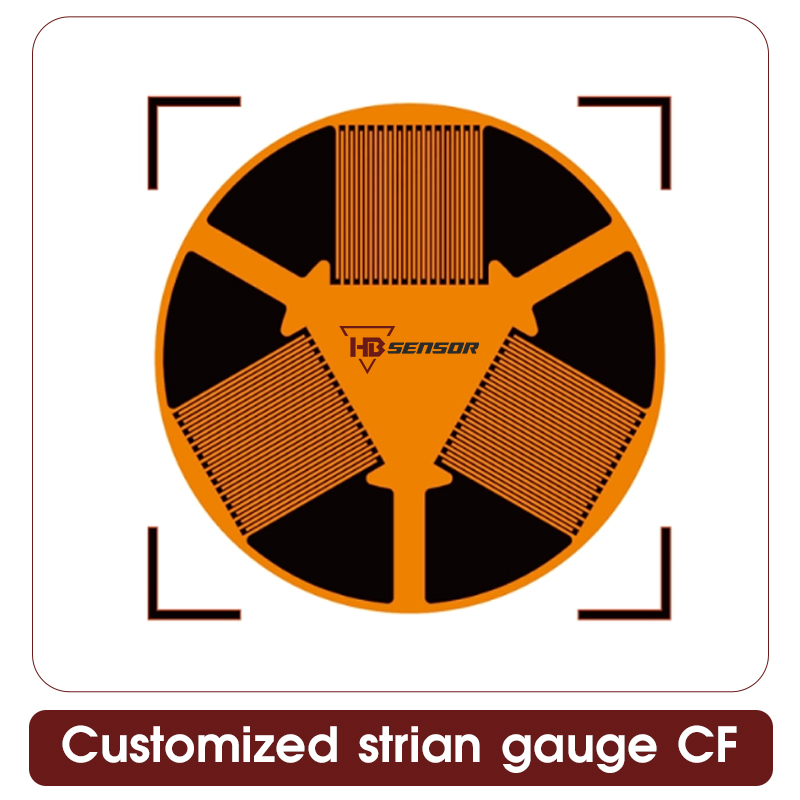

CF

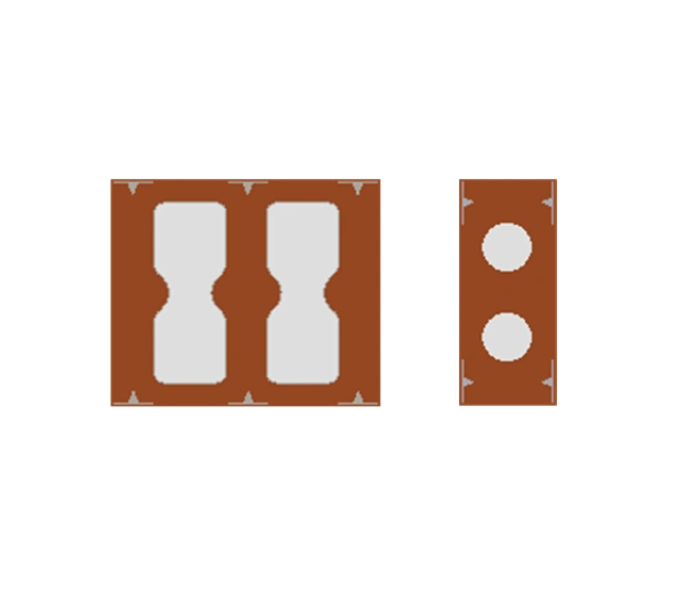

TM

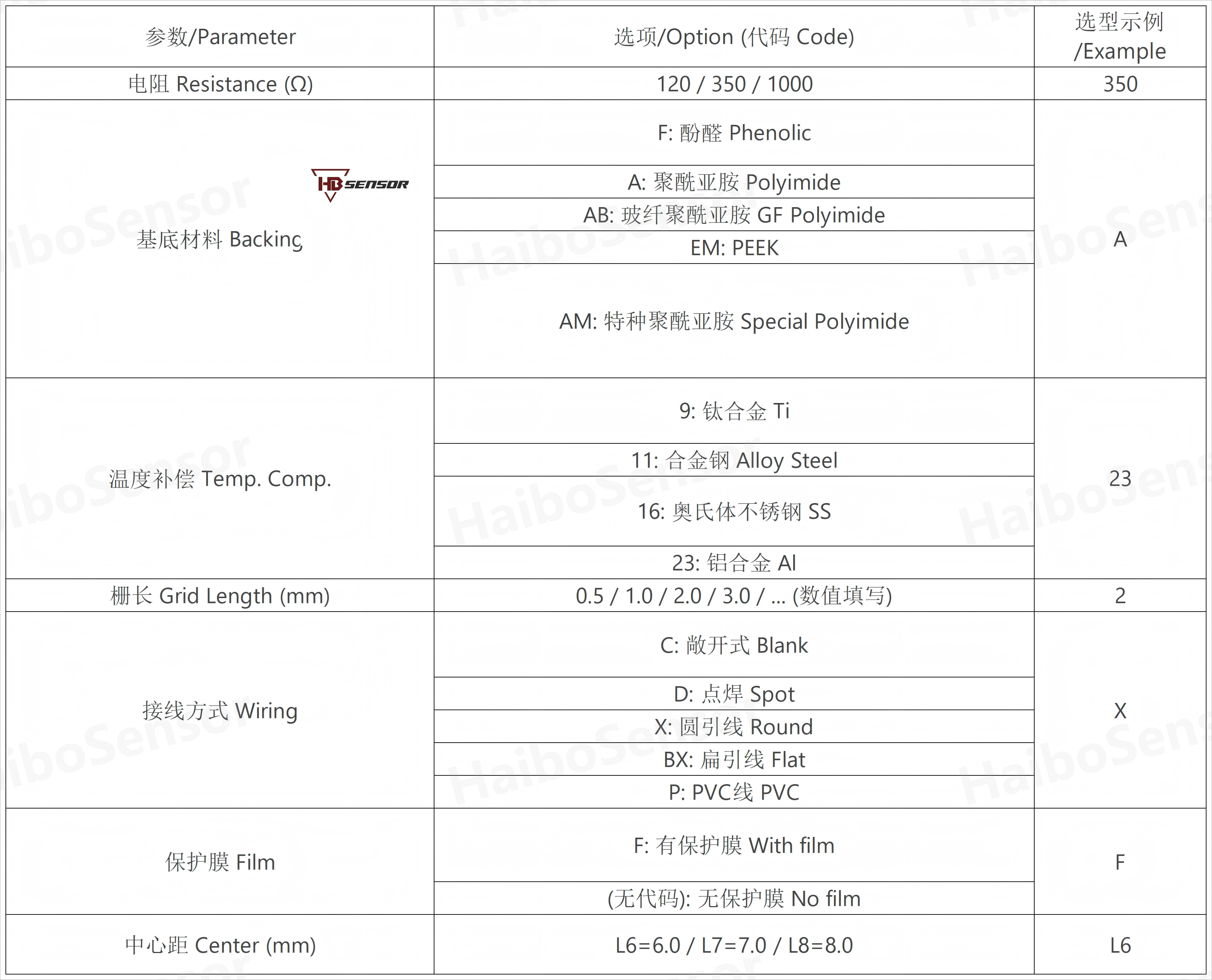

Different products utilize different strain gauges. Therefore, how should we select the appropriate model when searching for strain gauges.
| Model 型号 | Grid Size 栅丝尺寸 (L×W mm) | Base Size 基底尺寸 (L×W mm) | Grid Material 栅丝材料 |
|---|---|---|---|
| BF(BA)120-0.5AA(**)-A* | 0.55×2.3 | 3.6×3.3 | Constantan 康铜 |
| BF(BA)120-1AA(**)-A* | 1.0×2.2 | 4.3×3.5 | – |
| BF(BA)120-1.5AA(**)-A* | 1.5×2.4 | 6.5×4.7 | – |
| BF(BA)120-2AA(**)-A* | 1.8×1.8 | 5.2×3.2 | – |
| BF(BA)120-2.8AA(**)-A* | 2.8×2.0 | 6.4×3.5 | – |
| BF(BA)120-3AA(**)-A* | 3.0×2.0 | 6.6×3.6 | – |
| BF(BA)120-3.4AA(**)-A* | 3.4×3.3 | 9.1×6.1 | – |
| BF(BA)120-4AA(**)-A* | 4.0×3.3 | 7.9×4.6 | – |
| BF(BA)120-5AA(**)-A* | 4.8×2.0 | 8.6×3.6 | – |
| BF(BA)120-6AA(**)-A* | 5.8×2.0 | 9.6×3.6 | – |
| BF(BA)120-8AA(**)-A* | 8.0×2.0 | 11.9×3.6 | – |
| BF(BA)120-10AA(**)-A* | 9.8×3.0 | 15.0×5.0 | – |
| BF(BA)120-20AA(**)-A* | 20.0×2.6 | 26.3×4.0 | – |
| BF(BA)120-20AA-P(**)-A* | 20.0×4.1 | 26.8×5.9 | – |
| BF(BA)350-1AA(**)-A* | 1.5×2.6 | 4.6×3.6 | – |
| BF(BA)350-1.2AA(**)-A* | 1.2×3.8 | 4.8×4.6 | – |
| BF(BA)350-1.5AA(**)-A* | 1.5×4.0 | 4.9×4.8 | – |
| BF(BA)350-2AA(**)-A* | 2.1×3.8 | 5.6×4.6 | – |
| BF(BA)350-2AA-P(**)-A* | 2.0×2.4 | 5.0×3.5 | – |
| BF(BA)350-2.2AA(**)-A* | 2.2×1.8 | 5.1×2.4 | – |
| BF(BA)350-2.4AA(**)-A* | 2.4×3.0 | 4.9×4.0 | – |
| BF(BA)350-2.5AA(**)-A* | 2.5×3.3 | 6.4×4.5 | – |
| BF(BA)350-3AA(**)-A* | 3.2×3.1 | 6.8×4.1 | – |
| BF(BA)350-3AA-P(**)-A* | 3.2×3.1 | 7.4×4.4 | – |
| BF(BA)350-4AA(**)-A* | 4.0×3.1 | 8.1×4.1 | – |
| BF(BA)350-4AA-P(**)-A* | 3.8×2.2 | 8.2×4.2 | – |
| BF(BA)350-5AA(**)-A* | 5.0×2.9 | 9.3×4.5 | – |
| BF(BA)350-6AA(**)-A* | 6.1×3.1 | 10.4×5.4 | – |
| BF(BA)350-10AA(**)-A* | 9.4×4.1 | 15.4×6.1 | – |
| BF(BA)1000-1.5AA(**)-A* | 1.5×4.1 | 4.3×4.7 | – |
| BF(BA)1000-2AA(**)-A* | 2.0×4.0 | 4.9×4.8 | – |
| BF(BA)1000-2AA-P(**)-A* | 2.2×4.6 | 5.8×5.8 | – |
| BF(BA)1000-3AA(**)-A* | 3.0×5.3 | 6.7×6.5 | – |
| BF(BA)1000-4AA(**)-A* | 4.0×4.2 | 7.7×5.4 | – |
| BF(BA)1000-5AA(**)-A* | 5.0×4.0 | 8.6×5.2 | – |
| BF(BA)1000-6AA(**)-A* | 6.0×4.0 | 9.9×5.4 | – |
| BF(BA)1000-6AA-T(**)-A* | 6.5×3.1 | 11.4×5.1 | – |
| BF(BA)1000-10AA(**)-A* | 10.0×4.2 | 14.8×6.0 | – |

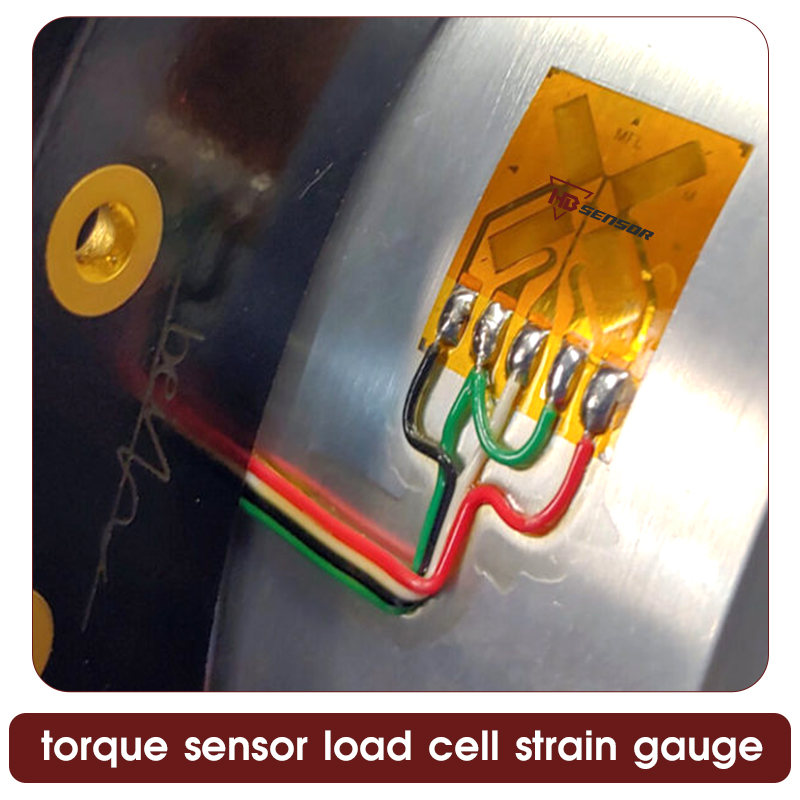

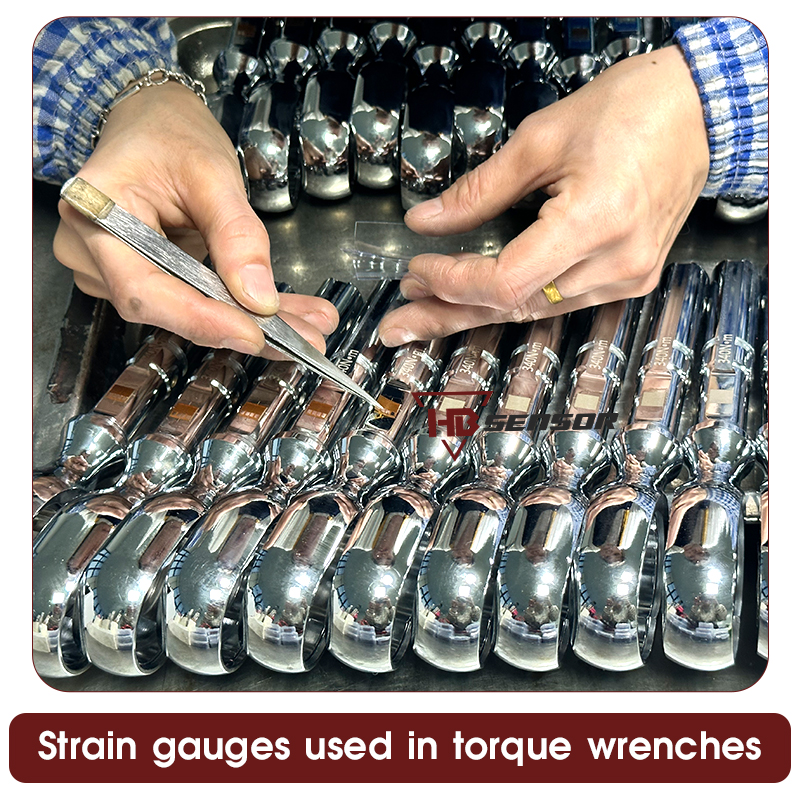

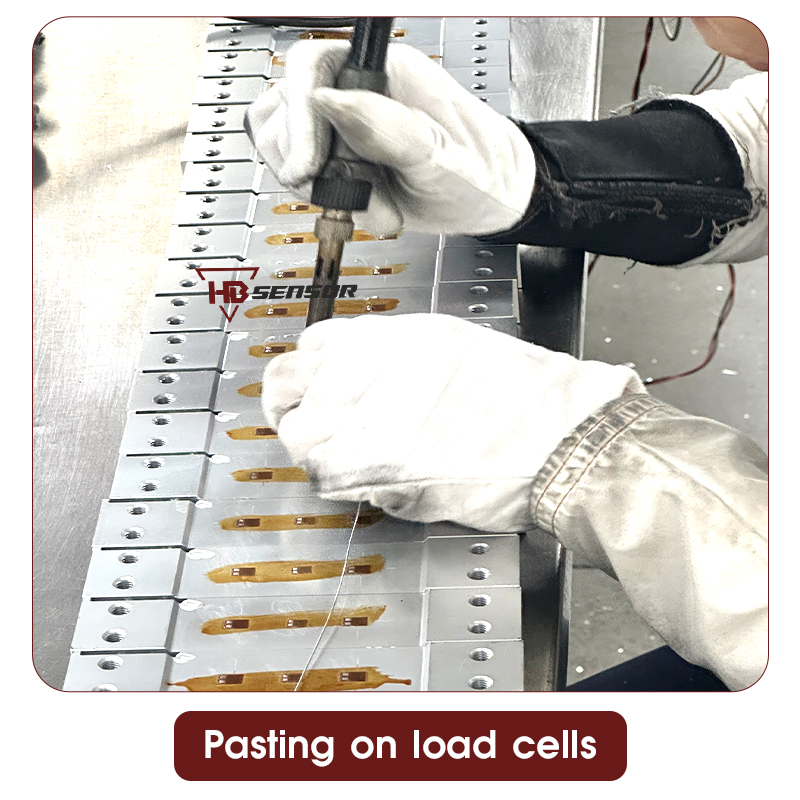

Strain gauges can be applied in numerous cases and are suitable for various types of load sensors,measuring weighing plate or smart products.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
We understand that you might have a lot of questions about the strain gauge, and no worries, just feel free to send us a message about your questions. We have a professional sales team that can provide any information about the strain gauges to you.
Haibo is a large manufacturer of Various Load Cells. We design and manufacture a wide range of and high precision Class C3 and competitive prices, Single point load cells, shear beam load cells, micro load cells, truck scales load cells, Weighing alex pads, pressure sensors, torque sensors, etc.
