The micro load cell is mainly composed of aluminum alloy and Manganese steel elastic element, resistance strain gauges, and transmission lines. It features high precision, a long service life, a simple structure, excellent frequency response characteristics, ease of miniaturization, integration, and diversification in types, as well as convenient installation.
The range selection of micro load cells is from 1g to 100kg. This technology finds extensive application in various microelectronic weighing devices, including palm scales, kitchen scales, postal scales, fishing scales, infant scales, pet feeders, human body scales, and other smart home micro-intelligent internet products.
Contact Us
Products
Blogs
The micro load cell is mainly composed of aluminum alloy and Manganese steel elastic element,resistance strain gauges, and transmission lines. It features high precision, a long service life, a simple structure, excellent frequency response characteristics, ease of miniaturization, integration, and diversification in types, as well as convenient installation.
The range selection of micro load cells is from 1g to 100kg. This technology finds extensive application in various microelectronic weighing devices, including palm scales, kitchen scales, postal scales, fishing scales, infant scales, pet feeders, human body scales, and other smart home Micro Intelligent Internet product.
HAIBO Micro Load Cell can be customized according to its measurement range. As a professional manufacturer of Micro Load Cells, we specialize in customizing and producing Micro Load Cells with varying measurement ranges and sizes tailored to different product requirements. Our company is equipped with a comprehensive suite of professional production facilities.
Customizable sensitivity for different weighing needs.
Custom rubber/silicone feet for stability, anti-slip, or vibration damping.
Compact, low-profile, or integrated designs for space-constrained applications.
Customizable for different Request for the wires you will need for your project

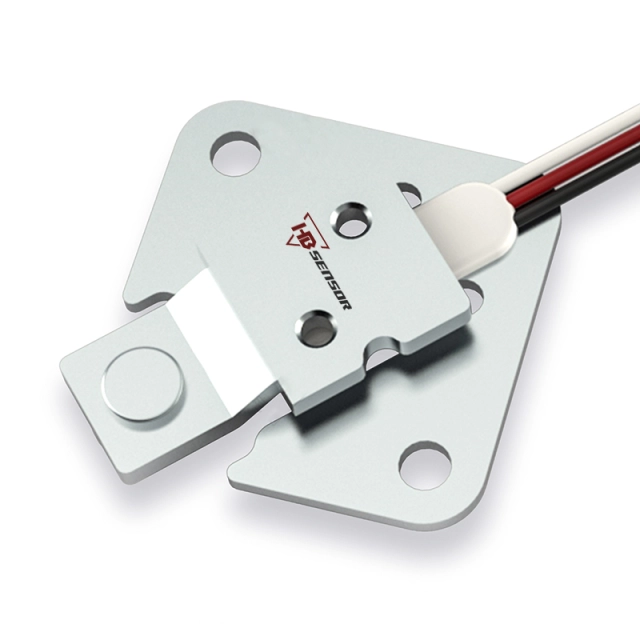

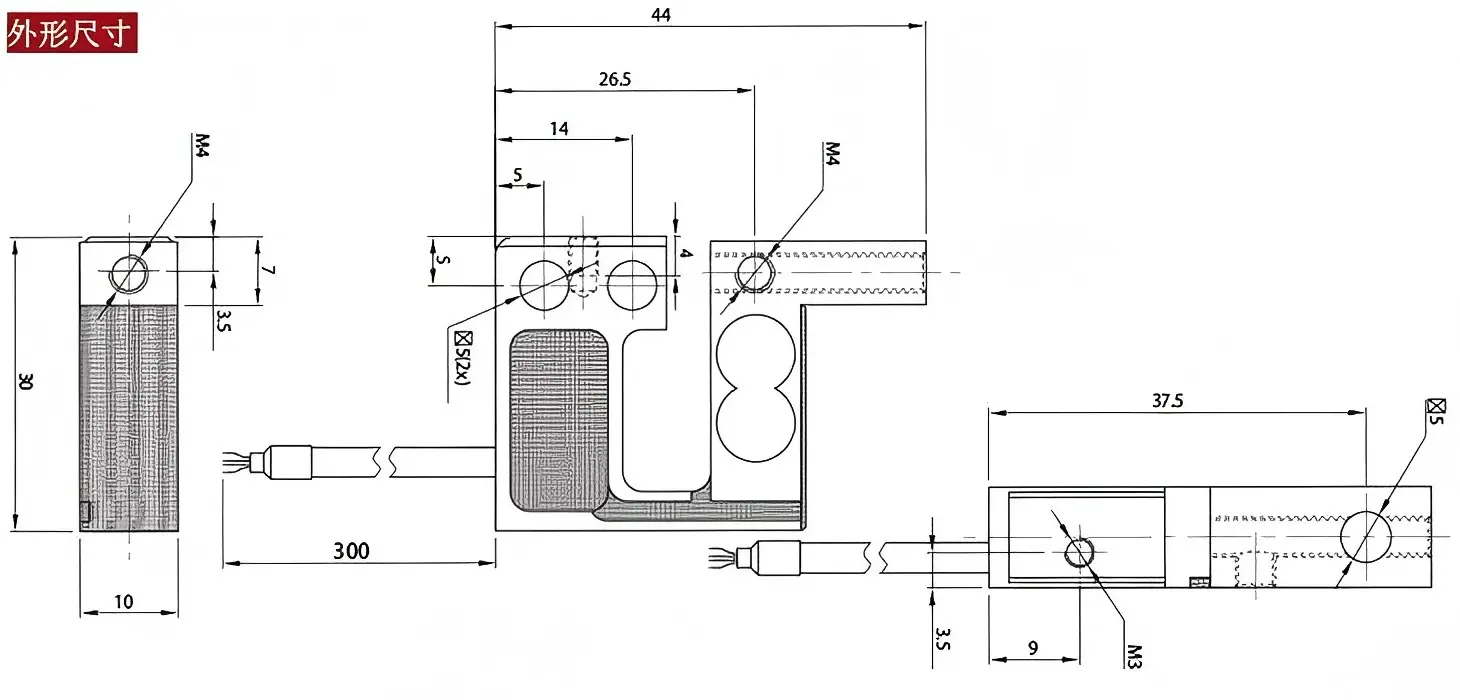

Full bridge micro cell for you for full set we can provide.

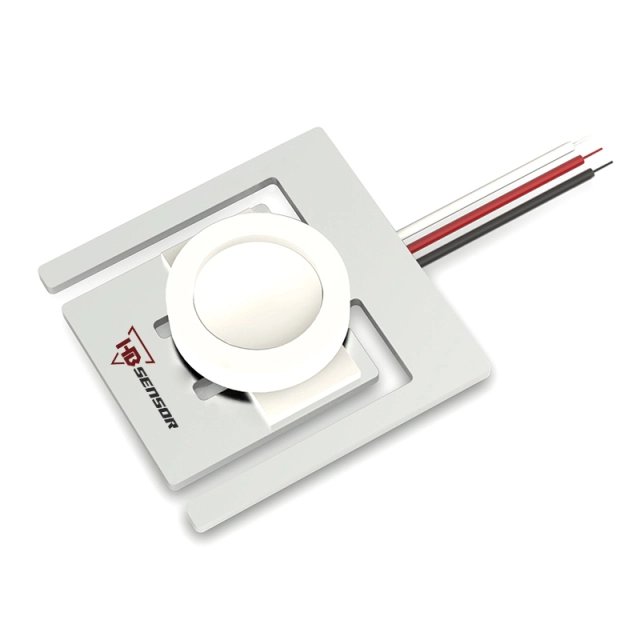

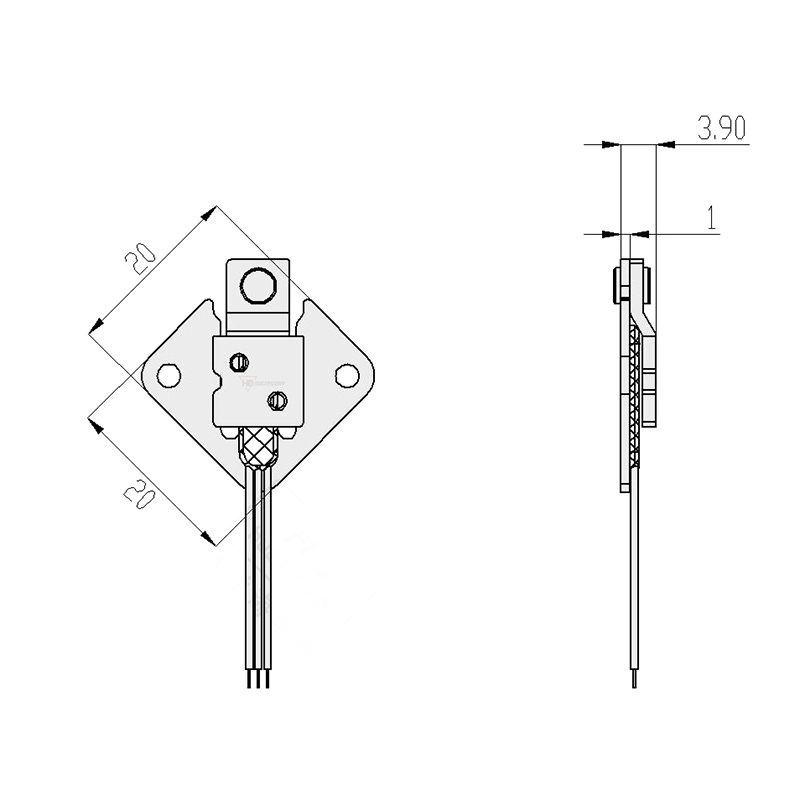

Half bridge micro load cell is offered by our factory as we can custom any micro load cell for you.

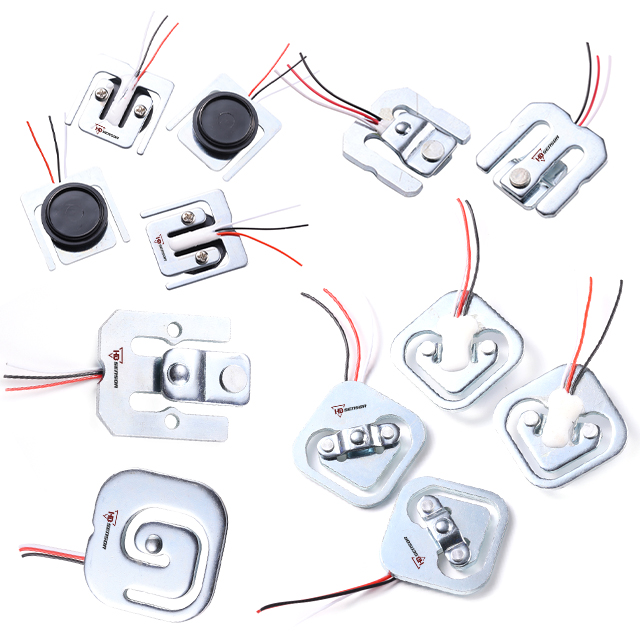

Micro Load Cells are categorized into Half-Bridge and Full-Bridge types. The selection between these two types typically depends on specific product requirements, installation dimensions, and customer-defined precision standards. Additionally, Micro Load Cells are manufactured using two primary materials: manganese steel and aluminum.
Half-Bridge Load Cells must be grouped in combinations, with a standard set consisting of four units.
The exit modes for Half-Bridge Load Cells are color-coded as RED, WHITE, and BLACK, while Full-Bridge Load Cells use the colors RED, BLACK, GREEN, and WHITE.
You may also see the stainless steel Single Point Load Cell, because it is very stable material anti-rusting, and durable for long time using.

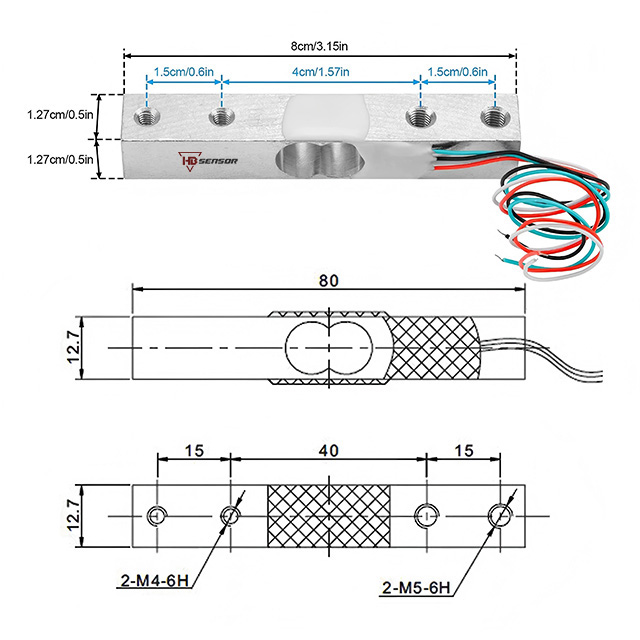

The measurement range of the micro load cell range: within 1G-100kg, suitable for small electronic devices. It is always for small weight and small items machine or the scale using.
Due to its suitability for relatively lightweight weighing requirements, the Micro Load Cell is not typically employed in large-scale applications. Instead, it is primarily utilized for weight detection in lightweight products

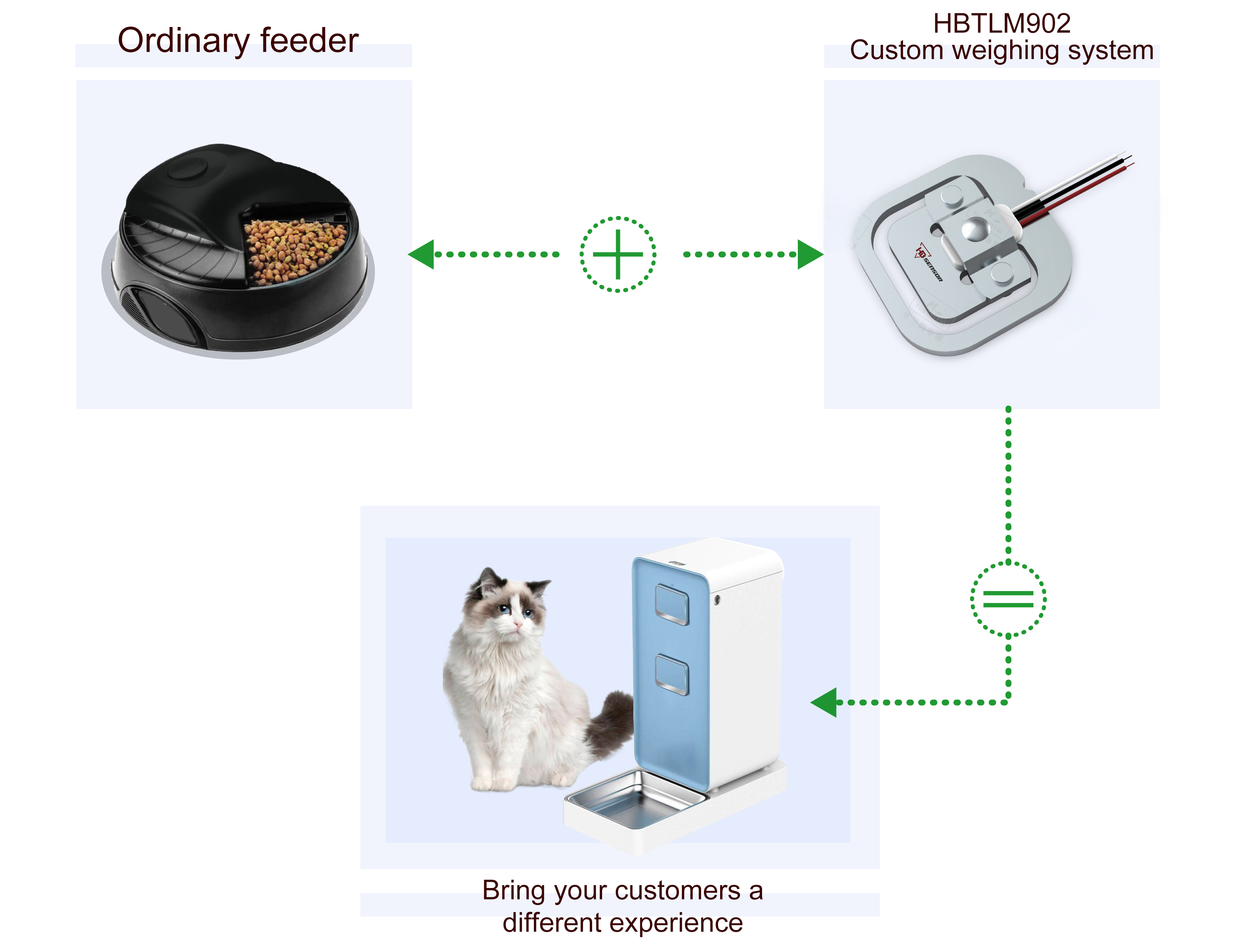

We are all aware that pet feeders have gained significant popularity in the market. They allow us to feed our pets according to their daily dietary needs and enable us to monitor their food and water intake through app-based tracking functionality.
Consequently, we can ensure proper feeding even when we are not physically present. The MICRO LOAD CELL developed by HAIBO serves as a crucial component in pet feeders. When integrated with weight-sensing back-end software, this product has become highly favored in the market.

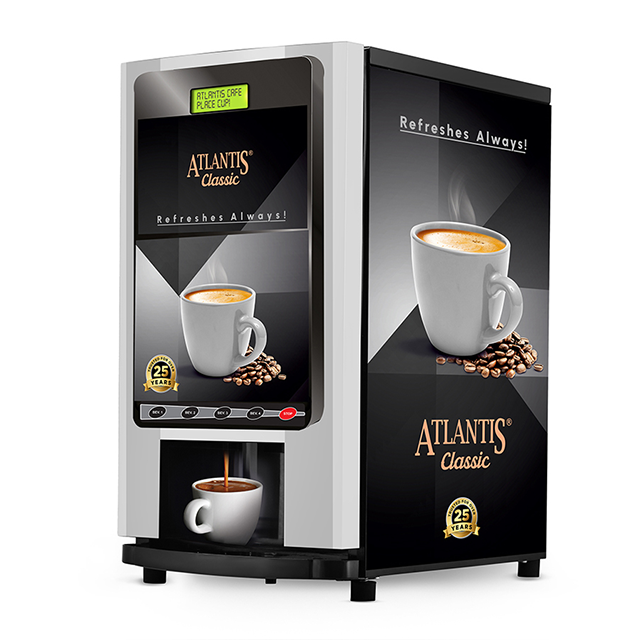

This represents one of the most common application areas for the Micro Load Cell. By integrating a Micro Load Cell into vending machines, we can regulate the product arrangement and monitor inventory levels. Additionally, it enables us to determine the remaining quantity of goods within the vending machine
Our micro load cell can be widely applied in smart home systems. Additionally, there have been several cases where it has provided excellent user experiences. Customers can integrate it with mobile applications to monitor their daily dietary plans and fat-burning meals as references, thereby promoting better health outcomes.
The MICRO LOAD CELL can also be used in smart washing machines, smart coffee machines, smart beer machines, smart kitchen furniture, etc.
The accuracy is the most important characteristic of a micro load cell because it directly impacts measurement reliability.
This model, designated as HTML611N, is Habo’s top seller in the smart technology market.
| Parameter | Typical Requirement (Body Scale) |
| Rate Output | 1.0±0.2 mV/v |
| Hysteresis | ≤±0.03% FS |
| Repeatability | ≤±0.02% FS |
| Temperature Effect | ≤±0.01% FS/°C |
| Safe Overload | 120% |
| Ultimate Overload | 150% |
| Creep | 0.1% F.S./3 |
| Excitation voltage | 3-12VDC |
If you have any demand for MICRO LOAD cells, please contact HAIBOSENSOR. We will provide all the assistance to enable your solution to achieve intelligent upgrades!
Haibo is a large manufacturer of Various Load Cells. We design and manufacture a wide range of and high precision Class C3 and competitive prices, Single point load cells, shear beam load cells, micro load cells, truck scales load cells, Weighing alex pads, pressure sensors, torque sensors, etc.
Contact us right now to get more information, we will have people reply within 12 hours.
You can get a price of this model or send us any question to get any information you would like to know, we will reply to you soonest.
