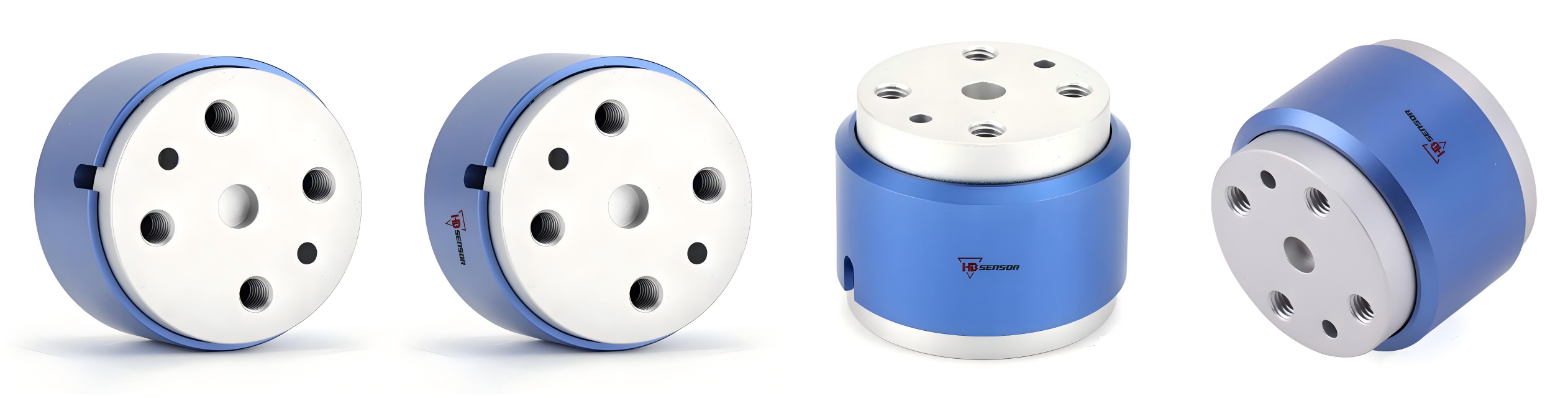

Mini Static Strain Gauge Torque Sensor

Model: HBWTQ2310

Capacity (Nm): 0.1, 0.2, 0.5, 1, 2, 3, 5, 10, 20, 30, 50 Nm

Material: Shaft Material Stainless Steel

Rated Output:

0.1-0.2 Nm…0.6 mV/V ± 10% F.S.
0.3-0.8 Nm…0.8 mV/V ± 10% F.S.
1-50 Nm…1.3 mV/V ± 10% F.S.

Payment Terms: FOB or EXW Shenzhen or GUANGZHOU

Descriptions

Small-Capacity Static Torque Sensor for Your Business.

The HBWTQ2310 is a small-capacity static torque sensor with mounting holes, used in testing machines and static torque detection systems. It is highly regarded by customers for its stability, accuracy, and cost-effectiveness.

Key Features:

High Accuracy (±0.1-0.5% FS)

The resistance strain gauge is an integrated product consisting of a sensitive element and an integrated circuit.

High precision, stable and reliable performance;

Easy to connect with a screwdriver (electric screwdriver);

Suitable for static torque measurement.

Usage & Applications:

Torque wrenches

Screwdrivers, and pneumatic tools

Robotic arm force feedback

torque of rotating machinery

engines, drive shafts

Wind turbines, etc.

Customized Part:

Capacity

Size

Signal Output

Wires

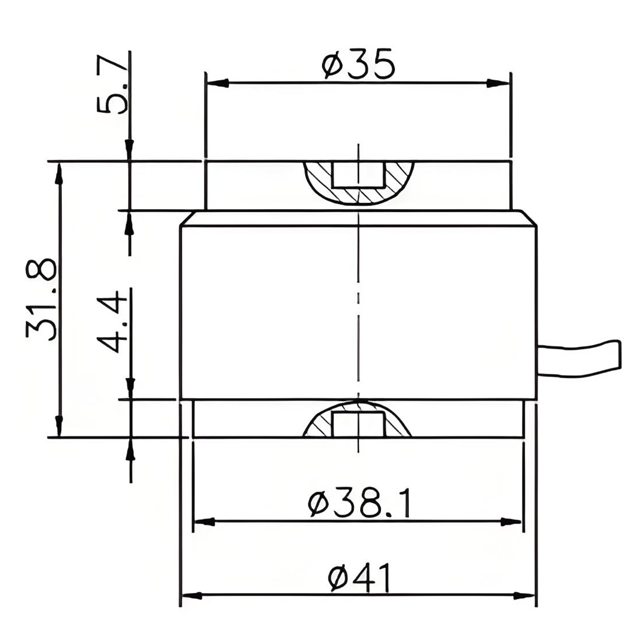

Dimension Size:

Packing

Specifications:

Range	0.1, 0.2, 0.5, 1, 2, 3, 5, 10, 20, 30, 50 Nm
Output	0.1-0.2 Nm…0.6 mV/V ± 10% F.S. 0.3-0.8 Nm…0.8 mV/V ± 10% F.S. 1-50 Nm…1.3 mV/V ± 10% F.S.
Accuracy	±0.1, ±0.2% ±0.2%F.S.
Zero temperature effect	±0.03% F.S.
Full temperature effect	±0.03% F.S.
Compensated temperature range	-10~60℃
Operating temperature range	-20~75℃
Supply voltage	5-10VDC
Input resistance	350±20Ω
Output resistance	350±10Ω
Response frequency	100 μS
Insulation resistance	≥2000MΩ/100VDC
Safety overload	150
Ultimate overload	200% F.S.
Cable size	Φ5×3m
Material	Shaft material 17-4PH stainless steel or aluminum alloy; housing is aluminum
Electrical connection	Red/E+, black/E-, green/S+, white/S-
