Model: HBWTQ2102
Type: Non-contact type
Capacity (Nm): 0-0.1, 0.2, 0.3, 0.5, 1, 2, 3, 5
Material: Shaft Material Stainless Steel
Maximum Speed: The normal speed is 1800 RPM and can reach 4000 RPM for a short time.
Rated Output: 0.1-0.2 Nm…0.6 mVW ± 10% F.S.; 0.3-0.5 Nm…0.8 mVV ± 10% F.S.; 1-5 Nm…1.3 mVV ± 10% F.S.
Payment Terms: FOB or EXW Shenzhen or GUANGZHOU
The HBWTQ2102 is a non-contact dynamic torque sensor with a measuring range of 0.1-5 Nm and a max speed of up to 15,000 RPM. Its built-in digital monitor provides real-time torque and RPM readings for instant data visualization.
High Accuracy (±0.1-0.5% FS)
Can measure static torque and rotational torque;
High precision, stable and reliable performance;
Can run at high speed for a long time;
Output forward and reverse torque signals.
The speed can reach 1800 rpm and can reach 4000 rpm in a short time.
Torque wrenches
Screwdrivers, and pneumatic tools
Robotic arm force feedback
torque of rotating machinery
engines, drive shafts
Wind turbines, etc.
Capacity

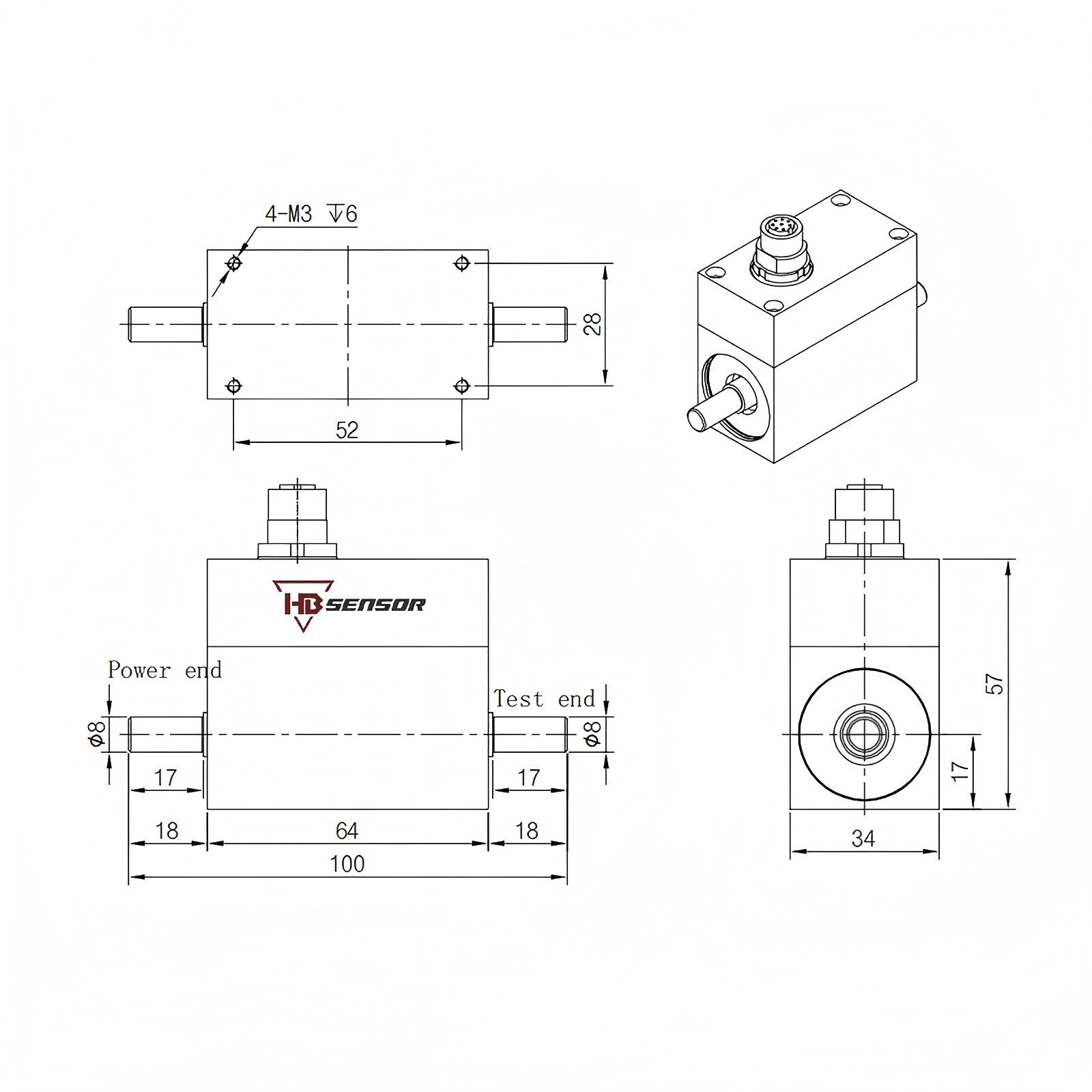

Size
Signal Output
Wires
| Range | 0.1, 0.2, 0.3, 0.4, 0.5, 1, 2, 3, 4, 5 Nm | |
| Accuracy | ±0.1, ±0.2% FS | |
| Zero point temperature effect | ±0.02%FS | |
| Full scale temperature effect | ±0.02%FS | |
| Compensated temperature range | -10-60℃ | |
| Operating temperature range | -20~75℃ | |
| Torque output | 10±5 kHz (5 V amplitude), 0-±5 , 0-±10 , 0-5-10 , 4-12- mA, 0- V, 0-10 V, -20 mA, RS485, RS232, CAN, etc. | |
| Rotation speed measurement | 60 pulses/circle (amplitude V), 4-20 mA, 0- VDC, 0- VDC, RS485, RS232, CAN, etc. | |
| Supply voltage | 12~24VDC | |
| Supply current | Less than mA | |
| Electrical connection | 8-Pin | |
| Overload protection | 200 | |
| Material | Shaft material 17-4PH stainless steel; housing is aluminum | |
