HBTLSF300 S Type Tension Load Cell Sensor 10(t) for Industrial Automation

Model: HBTLSF3003

Capacity: 10t

Material: Aluminum Alloy or Stainless Steel

Rated Output: 2.0 MV/V

Protection Class: PI66/IP67

Payment Terms: FOB OR EXW Shenzhen OR GUANGZHOU

Descriptions

S-Type Tension Strain Gauge Load Cell Sensor for Your Business.

The HaiboSensor HBTLSF3003 is a tension force compression load cell sensor that features strong corrosion resistance, making it ideal for harsh environments with IP67 protection. With capacities ranging from 10t, this S-type load cell uses advanced metal foil strain gauge technology for reliable performance.

Key Features:

Small Capacity: Accurately measures weights up to 50-200 kg.

Aluminum alloy or stainless steel construction: We can tailor raw materials to meet customer needs.

IP66/IP67 Protection Rating: The load cell is designed with an IP66/IP67 rating.

Accuracy: Provides high-precision measurements suitable for applications requiring accurate weight data.

Easy installation.

Usage & Applications:

Hopper scales & silo weighing
Crane scales & overload monitoring
Tension control (e.g., cables, ropes, conveyors)
Machine testing & force measurement
Batching, blending & mixing systems
Belt scales & dynamic weighing
Industrial automation & process control
Material testing machines
Marine/offshore equipment
Aerospace component testing

Customized Part:

Wire Length.

Load Cell Outer Size

Connect Connector

ODM/OEM.

Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.

Package.

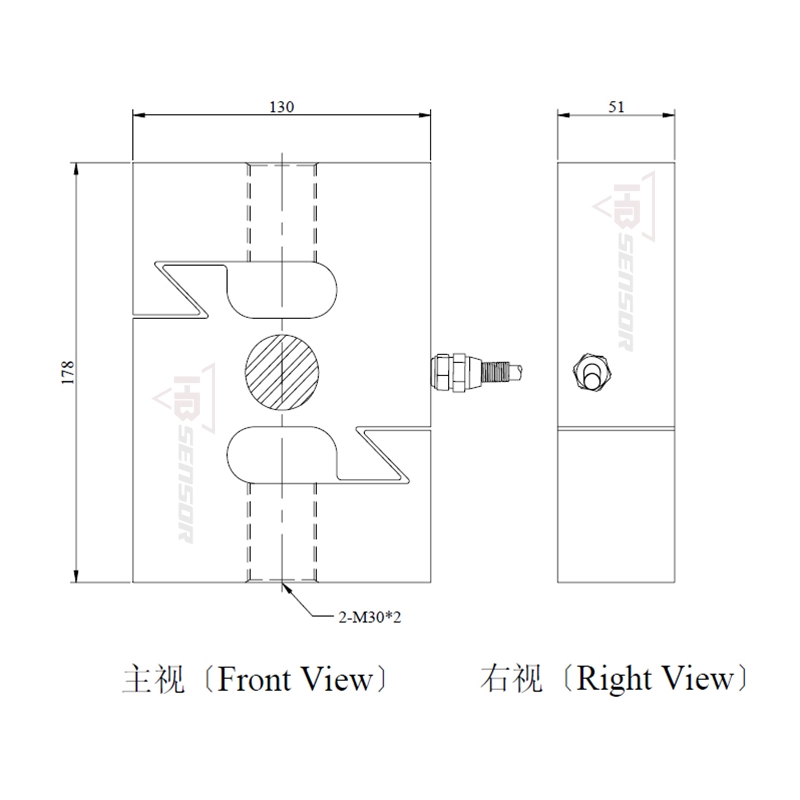

Dimension Size:

Specifications:

Rated Capacities	Temperature Effect On Output
10T	0.002 %R.O./℃
Rated Output	Temperature Effect On Zero
2.0 mV/v ±0.25%	0.003 %R.O./℃
Zero Balance	Input Impedance
±0.0200 mV/V	385±15 Ω
Non-linearity	Output Impedance
0.02% R.O.	350±5 Ω
Hysteresis	Insulation Impedance
0.02% R.O.	≥5000 MΩ/(100VDC)
Repeatability	Recommended Excitation
0.02% R.O.	5~12 VDC
30 mins, Creep	Maximum Excitation
±0.023%FS/30	15 VDC
30 Return	OperatingTemperatureRange
0.02% R.O.	-20~60 ℃
Safe Overload	Construction
150% R.O.	Aluminum Alloy & Stainless Steel
Ultimate Overload	Protection Class
200% R.O.	IP66 / IP67
Temperature Effect on Output (SIG+), White (SIG-)	Cable: φ6×3 m Red (EXC+), Black (EXC-), Green (SIG+), White（SIG- (SIG-)
