HBTLM619BL is a micro load cell designed for measuring weights up to 100 grams and outer size 50mm in length, These load cells are typically designed for high sensitivity and accuracy.
Accurately measures weights up to 100 grams.

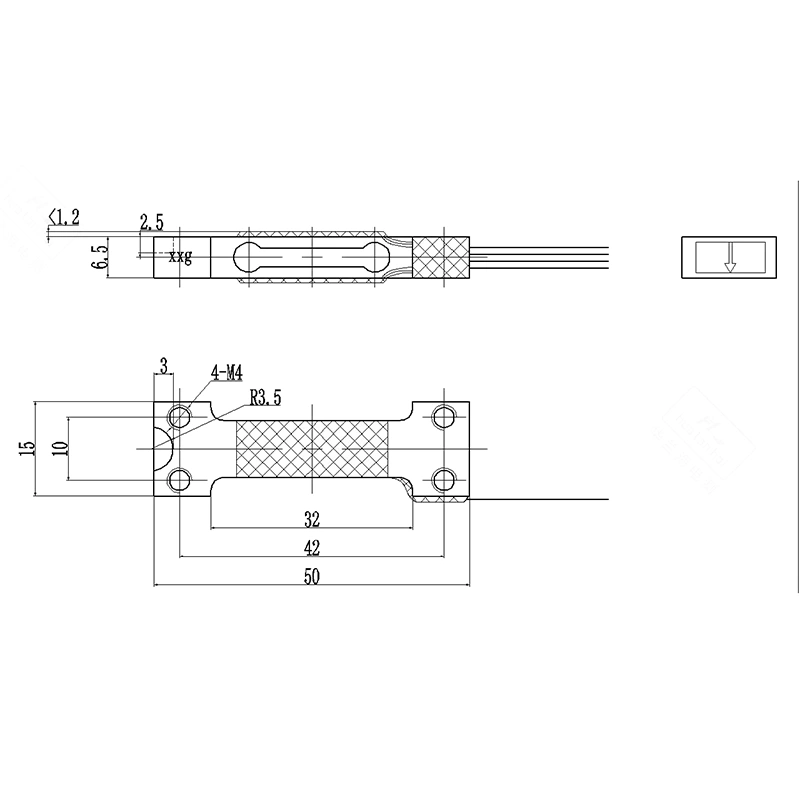

Dimensions of approximately 50mm in length, suitable for integration in space-constrained applications.
Raw materials can be customized according to customer requirements
Designed for efficient power use, making it suitable for battery-operated devices.
The load cell is designed with an IP65 rating. Easy installation
There are many different applications our Micro Load Cell 100g can do for you. Please just send us your request for customization. Below are some applications forthe Micro Load Cell 100g, for example.
Used in portable or compact digital scales for precise weight measurement.
Ideal for applications in healthcare, such as patient scales or devices requiring accurate weight readings. You can use our Micro Load Cell 100g for the Medical system, since we all knows that the medical system need a very accurate data, our Micro Load Cell 100g can detect very small differences on it.
Used in situations requiring precise measurements in product testing or quality control processes.
Often integrated into smart kitchen scales or fitness devices for monitoring food portions or body weight.
| Rated Capacities | Temperature Effect On Output |
| 100-2000g | 2.0%R.O./10℃ |
| Rated Output | Temperature Effect On Zero |
| ±0.02 mV/V | 2.0 %R.O./10℃ |
| Zero Balance | Input Impedance |
| ±0.1 mV/V | 1090±10Ω |
| Non-linearity | Output Impedance |
| 0.02 %FS. | 1000±10Ω |
| Hysteresis | Insulation Impedance |
| 0.02 %FS. | ≥5000 MΩ |
| Repeatability | Recommended Excitation |
| 0.02 %FS | 3VDC ~ 10VDC |
| 3mins Creep | Maximum Excitation |
| 0.1 %FS/3MIN | 10VDC |
| 30mins Return | OperatingTemperatureRange |
| 0.02 %R.O. | -20~60 ℃ |
| Safe Overload | Construction |
| 120 %R.O. | Aluminum Alloy |
| Ultimate Overload | Protection Class |
| 150%R.O. | IP65 |
| Cable:RED (+) BLACK(-) GREEN(+) WIHTE(-) | 300mm |
| MOUNTING HOLE SIZE | 4-M4 |
| Model Connection | Red（EXC+）,Black（EXC-）, Green（SIG+）,White（SIG-） |
