HBTLS608A is a low capacity parallel beam single point load cell widely used device for weight measurement and force sensor. Provide high precise measurements and ease of installation, making it suitable for the pricing scale, counting scale and weighing applications.
Low Capacity: Accurately measures weights up to 10-200kg
Compact Size: Dimensions of approximately 75mm in length, suitable for integration in space-constrained applications.
Aluminum alloy construction: Raw materials can be customized to meet customer requirements.
IP65 Protection Rating: The load cell is designed with an IP65 rating.
Accuracy: Provides high-precision measurements suitable for applications requiring accurate weight data.
Easy installation.
Weighing Scales: Used in pricing scale, counting scales, balance, retail scales, pricing scales,counting scales.
balance and weight measurement.
Commercial Scales: Commonly used in retail and supermarket electronic scales to help merchants weigh products accurately.
Industrial Weighing: Great for warehouse, logistics, and production line weighing systems to make sure goods and materials are measured accurately.
Medical Devices: Comes in handy for medical equipment that needs weight monitoring, like patient scales or when mixing medicines.
Food Industry: Helps ensure food products weigh what they’re supposed to during processing and packaging.
Laboratory Equipment: Perfect for research settings where you need super accurate measurements of different substances.
Intelligent Smart Products: Coffee vending machine , A variety of different miniature VENDING machines or Smart Weighing Devices.
Wire Length.

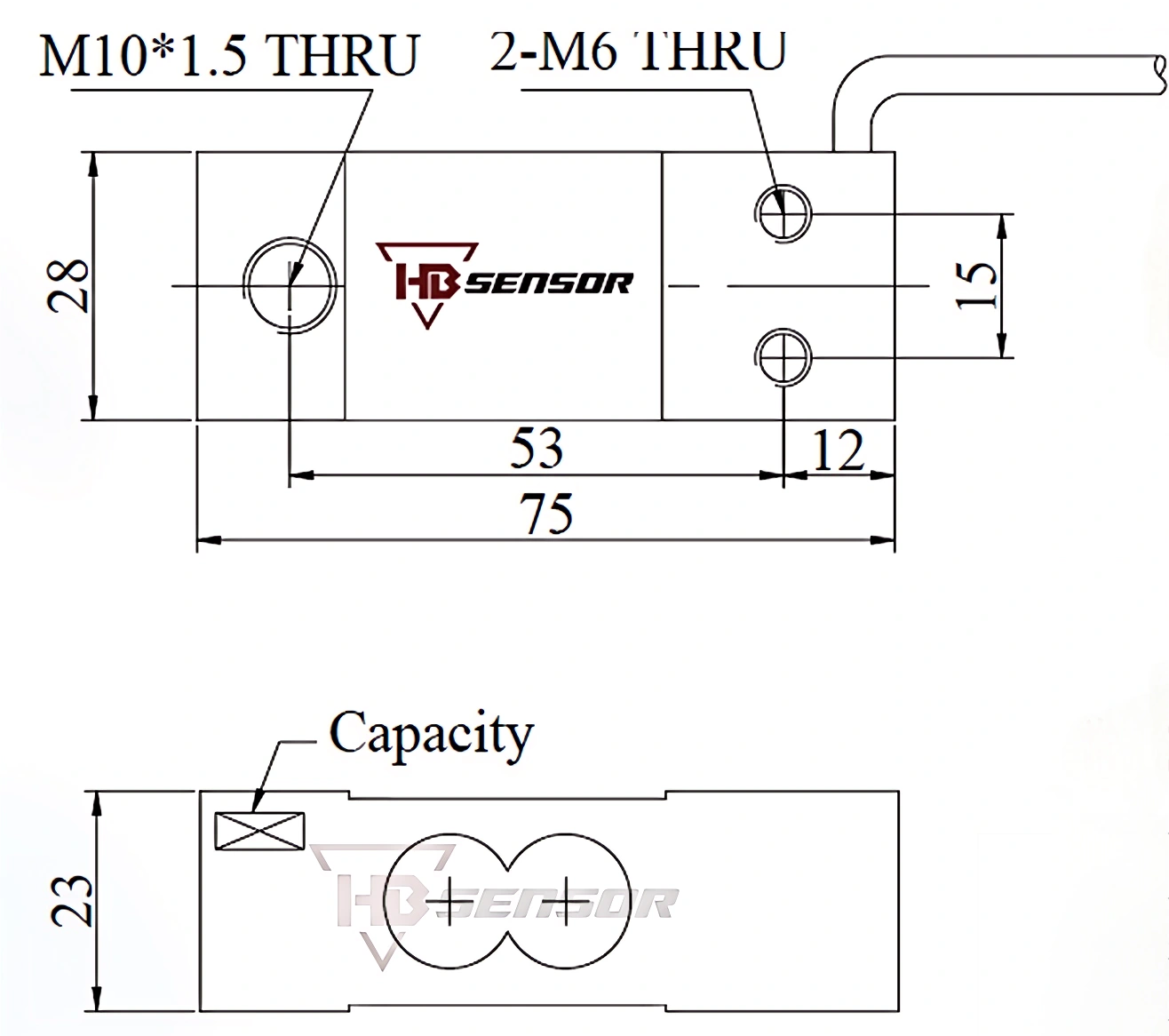

Load Cell Outer Size.
Connect Connector, Example: JST or XX Brand Connetctor.
ODM/OEM.
Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Pacakge.
| Rated Capacities | Temperature Effect On Output |
| 10-200kg | 2.0%R.O./10℃ |
| Rated Output | Temperature Effect On Zero |
| 2.0±0.2mv/v | 2.0 %R.O./10℃ |
| Zero Balance | Input Impedance |
| ±0.0200 mV/V | 410±10 Ω |
| Non-linearity | Output Impedance |
| 0.02 %FS. | 350±5 Ω |
| Hysteresis | Insulation Impedance |
| 0.02 %FS. | ≥5000 MΩ |
| Repeatability | Recommended Excitation |
| 0.02 %FS | 5~12VDC |
| 3mins Creep | Maximum Excitation |
| 0.1 %FS/3MIN | 15VDC |
| 30mins Return | OperatingTemperatureRange |
| 0.02 %R.O. | -20~60 ℃ |
| Safe Overload | Construction |
| 120 %R.O. | Aluminum Alloy |
| Ultimate Overload | Protection Class |
| 150%R.O. | IP65 |
| Cable:RED (+) BLACK(-) GREEN(+) WIHTE(-) | φ 3X1m |
| Recommended Platform Size | 300X300mm |
| Red（EXC+）,Black（EXC-）, Green（SIG+）,White（SIG-） |
