HAIBOSENSOR manufactures micro load cells in both full-bridge and half-bridge types. The full-bridge mini load cells feature four wires: red, black, green, and white, while the half-bridge micro load cell variant consists of a set of four wires, including red, black, and white. allowing customers to choose based on their specific equipment and application requirements. Materials made of manganese steel, these micro load cells have a broad range of applications, including body scales and kitchen scales.
Due to their compact size and lightweight design, micro load cells are commonly used in consumer electronics, medical devices, and smart home appliances. For instance, these load cells can be found in pet feeders, kitchen scales, and smart vending machines, where they help to precisely control portions or monitor weight.
Compact size
Durability
Wide measurement range
Low power consumption
Manganese steel
Half Bridge load cells
IP65
Easy installation
Body Scales
Kitchen Scales
Smart Micro Weighing Machine
Other microelectronic weighing systems.
Auto Pet Feeder
Sport Device
Wire Length.

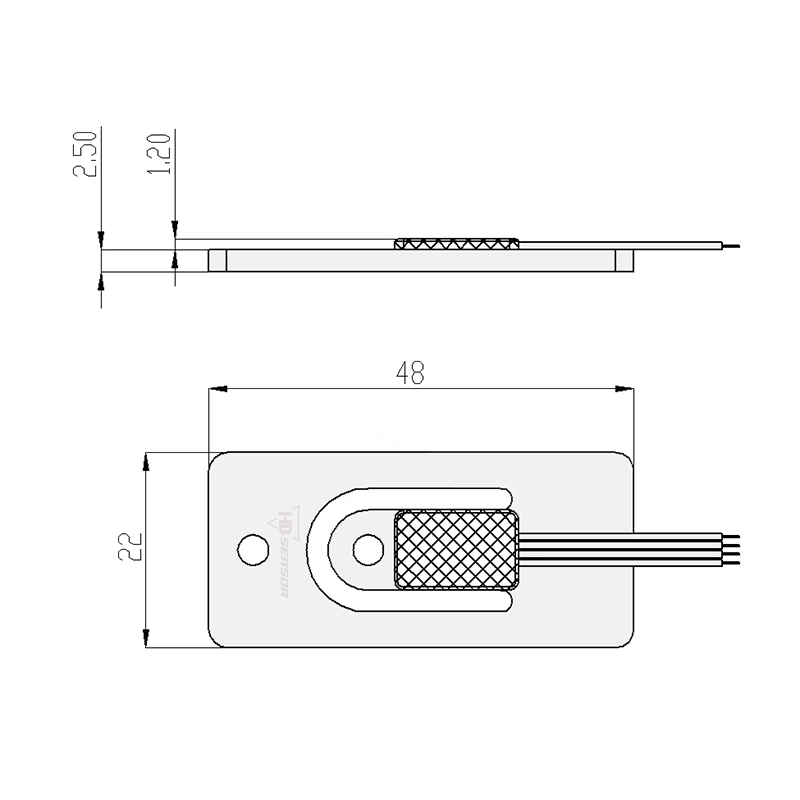

Load Cell Outer Size
Connect Connector
ODM/OEM.
Load Cell Types
| Rated Capacities | Temperature Effect On Output |
| 10-50kg | R.O./10°C |
| Rated Output | Temperature Effect On Zero |
| 1.0±0.15 mV/V | ±0.1 %R.O./10℃ |
| Zero Balance | Input Impedance |
| ±0.5 mV/V | 1000±10Ω |
| Non-linearity | Output Impedance |
| 0.05% FS. | 1000±10Ω |
| Hysteresis | Insulation Impedance |
| 0.05% FS. | ≥2000 MΩ |
| Repeatability | Recommended Excitation |
| 0.05% FS | 3VDC ~ 10VDC |
| 3 mins, Creep | Maximum Excitation |
| 0.1% FS/3 MIN | 5-10VDC |
| 30 Return | OperatingTemperatureRange |
| 0.02% R.O. | -10~40 ℃ |
| Safe Overload | Construction |
| 120% R.O. | Aluminum Alloy |
| Ultimate Overload | Protection Class |
| 150% R.O. | IP65 |
| Cable: RED (+) BLACK(-) GREEN (+) WHITE(-) | 450MM |
