The Haibosensor HBWTQ2204 is a compact strain gauge equipped with integrated electronics. It is designed to measure torque and provides distinct outputs for both clockwise and counterclockwise rotations. Our torque sensors are characterized by their competitive pricing, exceptional quality, and customizable options to meet specific application requirements.
High Accuracy (±0.1-0.5% FS)
Can measure static torque and rotational torque;
High precision, stable and reliable performance;
Can run at high speed for a long time;
Output forward and reverse torque signals.
The speed can reach 1800 rpm

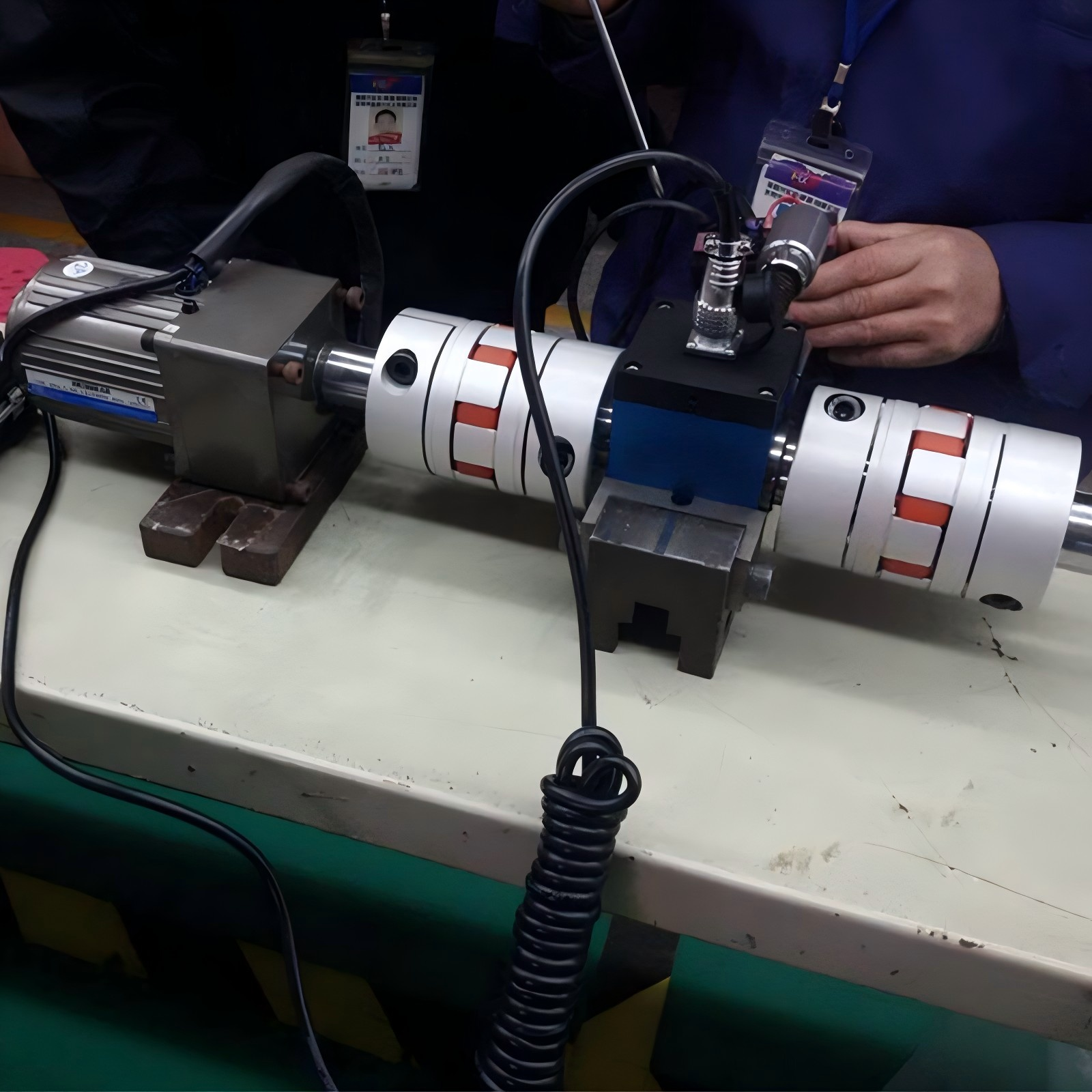

Torque wrenches
Screwdrivers, and pneumatic tools
Robotic arm force feedback
torque of rotating machinery
engines, drive shafts
Wind turbines, etc.
Capacity

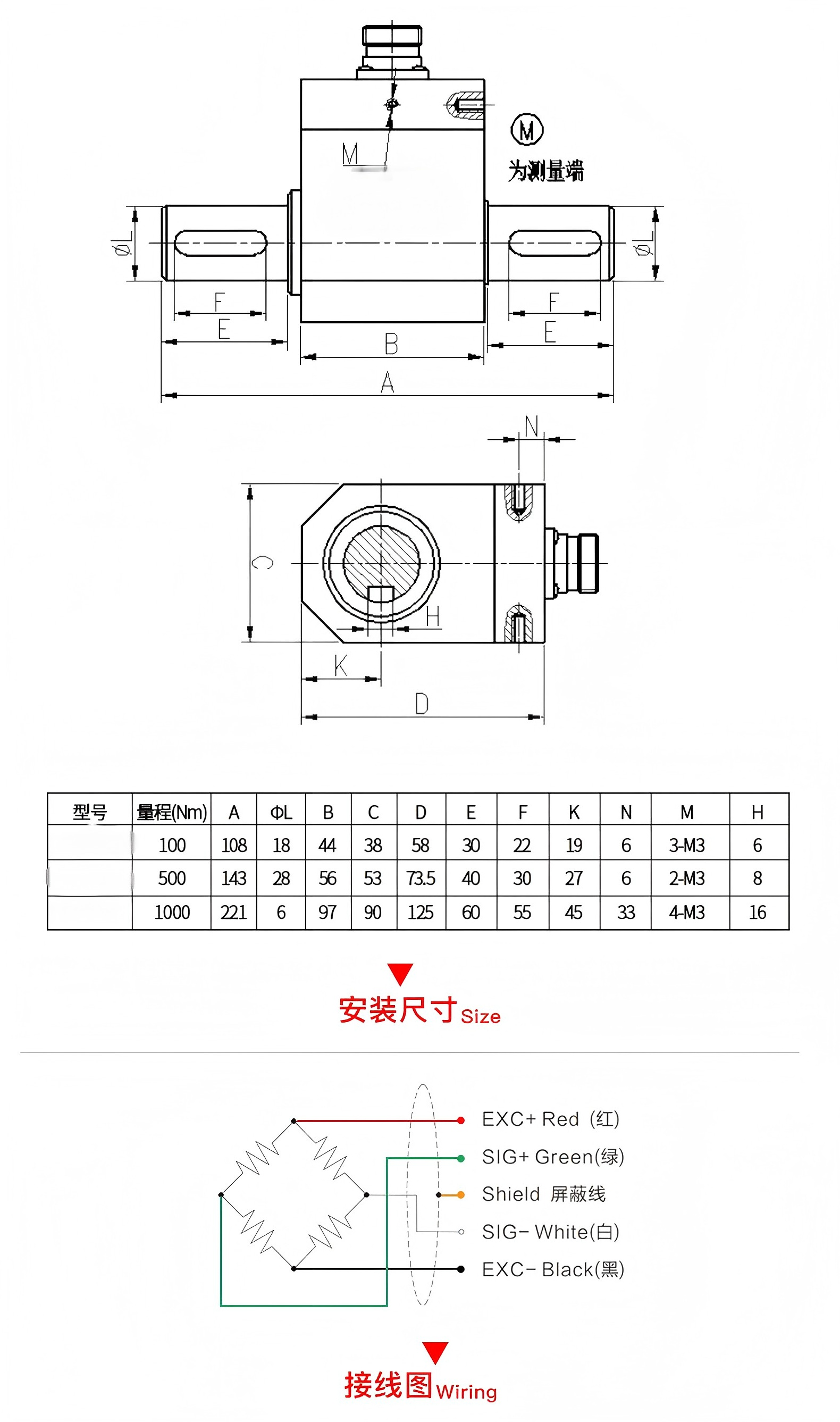

Size
Signal Output
Wires
| Range | 0-5, 10, 20, 30, 50, 100, 200, 300, 500, 1000, 2000 NM |
| Output | 1.0-2.0 mv/v |
| Accuracy | ±0.1, ±0.2% F.S. |
| Zero point temperature effect | ±0.03% F.S. |
| Full scale temp effect | ±0.03% F.S. |
| Compensation temp | -10~60℃ |
| Operating temperature | -20~75℃ |
| Supply voltage | 5-10VDC |
| Input resistance | 350±20Ω |
| Output resistance | 350±10Ω |
| Response frequency | 100 μS |
| Insulation resistance | ≥2000MΩ/100VDC |
| Safe overload | 150 |
| Ultimate overload | 200% F.S. |
| Cable size | Φ5×3m |
| Material | Shaft material 17-4PH stainless steel; housing aluminum |
| Electrical connection | Redd/E+, Black/E-, E-,Greenn/S+, White/S- |
| Special shaft length | Customizable |
