Model: HBWTQ2109
Type: Hex-Drive Rotary
Capacity (Nm): 0-5, 10, 18 Nm
Material: Shaft Material Stainless Steel
Maximum Speed: The normal speed is 1800 RPM and can reach 4000 RPM for a short time.
Rated Output: 1.5 mV/V ± 10% F.S.
Payment Terms: FOB or EXW Shenzhen or GUANGZHOU
The HaiboSensor Hex-Drive Rotary Torque Sensor is a super-precise tool for measuring dynamic torque in rotating systems. As they occur, it can pick up on torque, speed, rotation angle, and forces along multiple axes (such as Fx, Fy, and Fz). Its special hex-drive design makes it well-suited for breaking down complex torque situations. This makes it ideal for use in robotics, car testing, aerospace projects, and factory automation.
High Accuracy (±0.1-0.2% FS).
Multi-Parameter Measurement.
High precision, stable, and reliable performance.
Compact Design.
Supports high-speed rotation (up to 20,000 RPM) and high-frequency signal output.
IP67 rating for harsh industrial conditions.
Robotic joint torque control
Motor and gearbox testing
Aerospace actuator validation
Smart manufacturing process monitoring

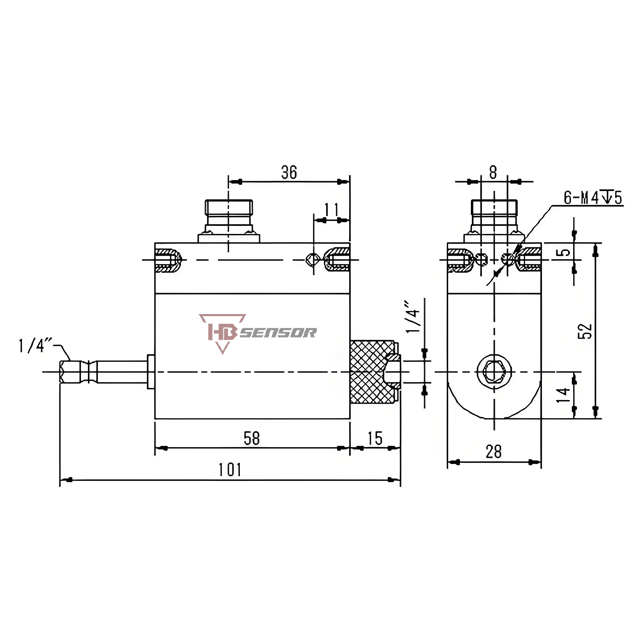

Mechanical Interface Customization.
Flange Adaptation: Compatible with ISO/SAE standards or custom drawings.
Shaft Connection: Keyway, spline, or clamping shaft ends available.
Size & Material: Aluminum/stainless steel housing, compact/extended designs.
| HaiboSensor/Torque/参数 / Parameter | HaiboSensor/Torque/数值/ Value |
|---|---|
| 扭矩量程 / Torque Range | 0-5 Nm / 0-10 Nm / 0-18 Nm (可选 selectable) |
| 输出灵敏度 / Output Sensitivity | 1.5 mV/V ±10% F.S. |
| 精度等级 / Accuracy | ±0.1% F.S. 或 ±0.2% F.S.（可选 Optional） |
| 零点温漂 / Zero Temp. Effect | ±0.03% F.S. |
| 满量程温漂 / Span Temp. Effect | ±0.03% F.S. |
| 温度补偿范围 / Compensated Temp. | -10°C ~ +60°C |
| 工作温度 / Operating Temp. | -20°C ~ +75°C |
| 供电电压 / Excitation Voltage | 5-10 VDC |
| 输入阻抗 / Input Resistance | 350 Ω ±20 Ω |
| 输出阻抗 / Output Resistance | 350 Ω 10 Ω |
| 响应时间 / Response Time | 100 μs |
| 绝缘电阻 / Insulation Resistance | ≥2000 MΩ @100 VDC |
| 安全过载 / Safe Overload | 150% F.S. |
| 极限过载 / Ultimate Overload | 200% F.S. |
| 电缆规格 / Cable Size | Ø5 mm × 3 m（标准长度 Standard） |
| 材料 / Material | 轴 Shaft: 17-4PH不锈钢 Stainless Steel 壳体 Housing: 航空铝 Aluminum Alloy |
| 电气连接 / Wiring | 红 Red: E+ 黑 Black: E- 绿 Green: S+ 白 White: S- |
| 典型应用 / Applications | – 电机测试 Motor Testing – 变速箱监测 Gearbox Monitoring – 自动锁螺丝机 Screwdriving Systems – 微型扭矩测量 Micro-Torque Applications |
