HBTLS608ZA3 Low Capacity is a flat single point load cell widely used device for weight measurement and force sensor. Provide high precise measurements and ease of installation, making it suitable for a variety of weighing applications.
Low Capacity: Accurately measures weights up to15kg-80kg

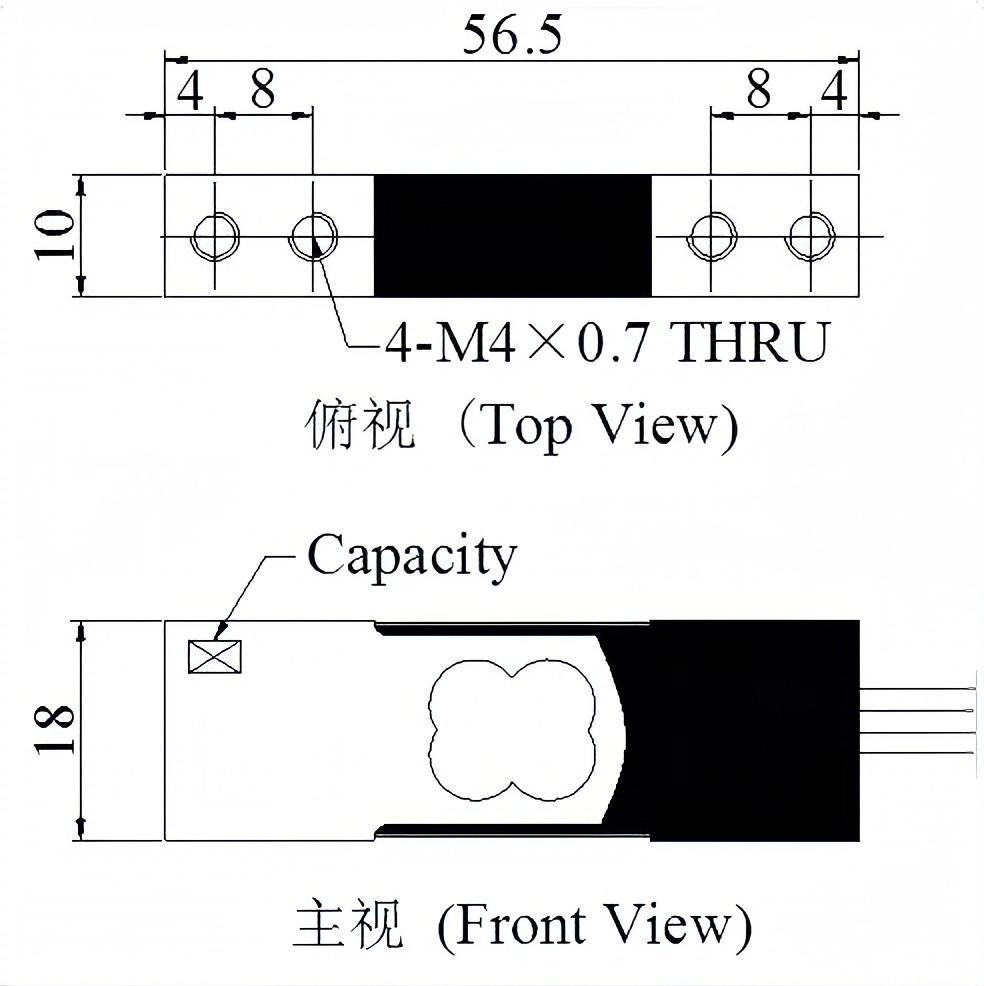

Compact Size: Dimensions of approximately 52mm in length, suitable for integration in space-constrained applications.
Aluminum alloy construction: Raw materials can be customized according to customer requirements
IP65 Protection Rating: The load cell is designed with an IP65 rating.
Accuracy: Provides high-precision measurements suitable for applications requiring accurate weight data.
Easy installation.
Weighing Scales: Used in portable or compact digital scales for precise weight measurement.
Commercial Scales: Commonly used in retail and supermarket electronic scales to help merchants weigh products accurately.
Industrial Weighing: Great for warehouse, logistics, and production line weighing systems to make sure goods and materials are measured accurately.
Medical Devices: Comes in handy for medical equipment that needs weight monitoring, like patient scales or when mixing medicines.
Food Industry: Helps ensure food products weigh what they’re supposed to during processing and packaging.
Laboratory Equipment: Perfect for research settings where you need super accurate measurements of different substances.
Intelligent Smart Products: Coffee vending machine , A variety of different miniature VENDING machines.
Wire Length.
Load Cell Outer Size.
Connect Connector, Example: JST or XX Brand Connetctor.
ODM/OEM.
Weighing Accessories.
Pacakge.
| Rated Capacities | Temperature Effect On Output |
| 15-80KG | 2.0%R.O./10℃ |
| Rated Output | Temperature Effect On Zero |
| 1.5±0.15mv/v / 2.0±0.2mv/v | 2.0 %R.O./10℃ |
| Zero Balance | Input Impedance |
| ±0.0200 mV/V | 410±10 Ω |
| Non-linearity | Output Impedance |
| 0.02 %FS. | 350±5 Ω |
| Hysteresis | Insulation Impedance |
| 0.02 %FS. | ≥5000 MΩ |
| Repeatability | Recommended Excitation |
| 0.02 %FS | 5~12VDC |
| 3mins Creep | Maximum Excitation |
| 0.1 %FS/3MIN | 15VDC |
| 30mins Return | OperatingTemperatureRange |
| 0.02 %R.O. | -20~60 ℃ |
| Safe Overload | Construction |
| 120 %R.O. | Aluminum Alloy |
| Ultimate Overload | Protection Class |
| 150%R.O. | IP66/IP67 |
| Cable:RED (+) BLACK(-) GREEN(+) WIHTE(-) | φ 0.8X0.6cm |
| Recommended Platform Size | 300X300mm |
| Red（EXC+）,Black（EXC-）, Green（SIG+）,White（SIG-） |
As the best quality load cell sensor products manufacturer, we can provide professional solutions for any custom request. Please feel free to contact us now and we will contact you soonest.
Haibo is a large manufacturer of Various Load Cells. We design and manufacture a wide range of and high precision Class C3 and competitive prices, Single point load cells, shear beam load cells, micro load cells, truck scales load cells, Weighing alex pads, pressure sensors, torque sensors, etc.
