HBTLS816JH The torsion ring type load cell, constructed from stainless steel, exhibits strong overload resistance, a broad measurement range, high sensitivity, high precision, and superior anti-off-center loading performance. Its low input impedance and low power consumption make it particularly suitable for battery-powered measurement systems. This load cell is designed for use for a variety of weighing devices, including electronic scales and tensile testing machines.
Material: Stainless Steel
High Performance and Reliable
Strong overload resistance,
A wide measurement range,
High sensitivity, high accuracy, and excellent resistance to eccentric loading.
Industrial automation & process control
Material testing machines
Marine/offshore equipment
Weighing equipment scenarios such as electronic weighing scales and tensile testing machines
Wire Length

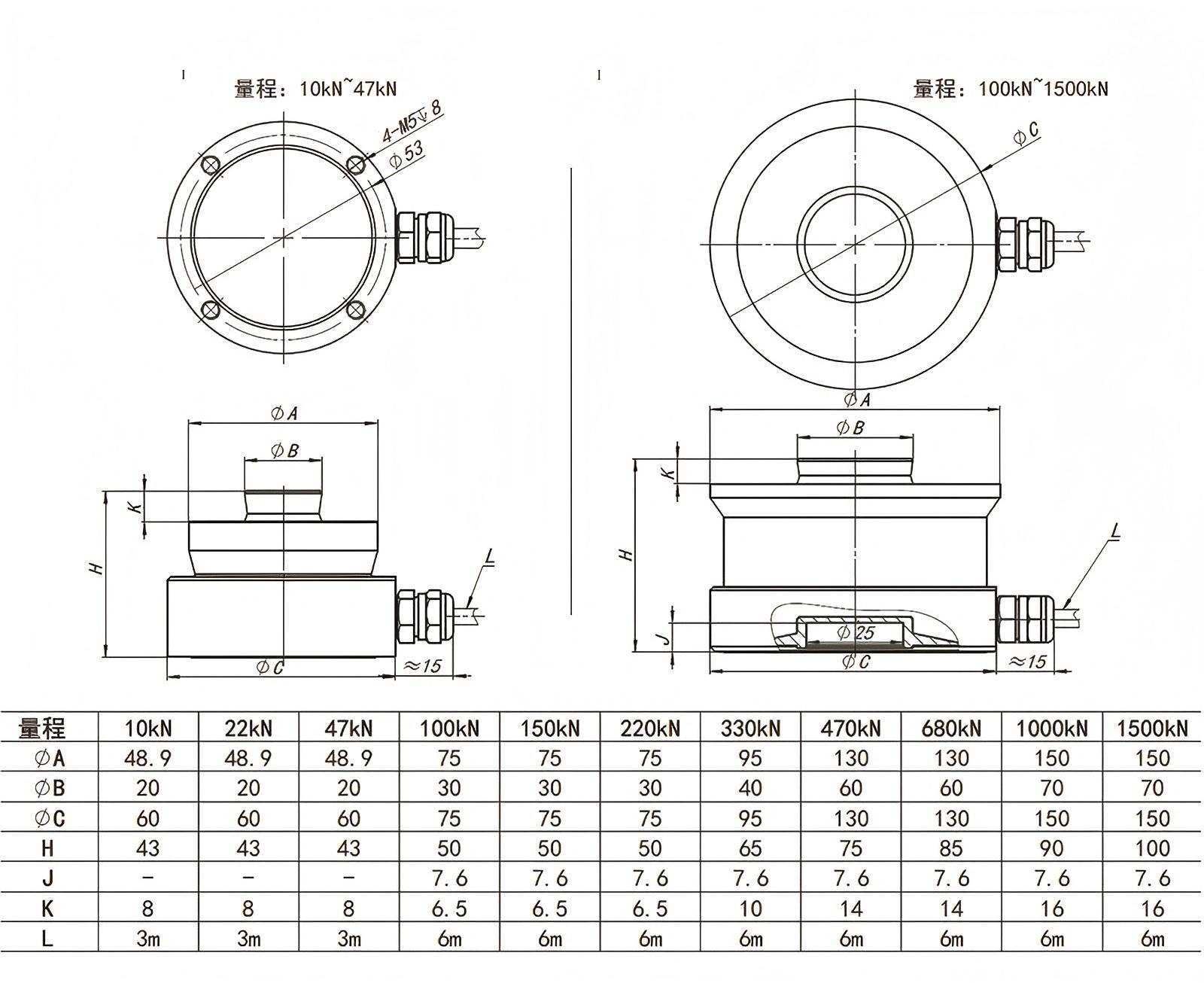

Load Cell Outer Size
ODM/OEM
Weighing accessories include an amplifier, digital signal (plate number 1 or plate number 2), junction boxes, and a transmitter.
Package.
| 参数/Parameter | 规格/数值 |
|---|---|
| 额定载荷 (Rated Load) | 3，5，10，20，30，50，100,150，200，300 (kN) |
| 综合精度 (Comprehensive Precision) | 0.03～0.05%F·S |
| 灵敏度 (Sensitivity) | 2.0 mV/V |
| 蠕变 (Creep) | ±0.05% F·S/30 |
| 零点输出 (Zero Output) | ±1% F·S |
| 零点温度影响 (Temperature Effect On Zero) | ±0.05% F·S/10℃ |
| 输出温度影响 (Temperature Effect On Output) | ±0.05% F·S/10℃ |
| 工作温度 (Operating Temperature Range) | -20℃～+65℃ |
| 输入阻抗 (Input Resistance) | 1450Ω±15 Ω |
| 输出阻抗 (Output Resistance) | 1400Ω±5 Ω |
| 绝缘电阻 (Insulation Resistance) | ≥5000 MΩ |
| 安全过载 (Safe Load Limit) | 150% F·S |
| 供桥电压 (Bridge Voltage) | 建议 10V DC |
| 材质 (Material) | 不锈钢（Stainless Steel） |
| 传感器接线方式 (Load Cell Connection) | 输入+: 红 (Input+: Red) 输入-: 黑 (Input-: Black) 输出+: 绿 (Output+: Green) 输出-: 白 (Output-: White) |
| 变送器接线方式 (Amplifier Connection) | 电源: 红 (Power: Red) 公共端: 蓝 (Public: Blue) 输出: 白 (Output: White) |
