HBTLS810H Alloy Steel Force Types bellows tank load pressure sensor

Model: HBTLS810H

Capacity: 00.1，0.2，0.3，0.5，1，2,3，5，7，10 (kN)

Material: Alloy Steel

Rated Output: 2.0 mV/V

Protection Class: PI65/IP66

Payment Terms: FOB or EXW Shenzhen or GUANGZHOU

Descriptions

HBTLS810H Alloy Steel Force Types Bellows Tank Load Pressure Sensor for Your Business.

The HTLS810H is a bellow-type load cell that is waterproof and corrosion-resistant, suitable for a wide range of environments, and widely used in platform scales, bench scales, conveyor scales, small hopper and tank weighing systems, and packaging and filling machines.

Key Features:

Material: Alloy Steel or Stainless Steel

Capacity Range: From a few Newtons (N) up to several kilonewtons (kN)

High Performance and Reliable

Class C3

Usage & Applications:

Hopper scales & silo weighing

Crane scales & overload monitoring

Tension control (e.g., cables, ropes, conveyors)

Machine testing & force measurement

Batching, blending & mixing systems

Belt scales & dynamic weighing

Industrial automation & process control

Material testing machines

Marine/offshore equipment

Aerospace component testing

Customized Part:

Wire Length.

Load Cell Outer Size

ODM/OEM.

Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes, Transmitter.

Package.

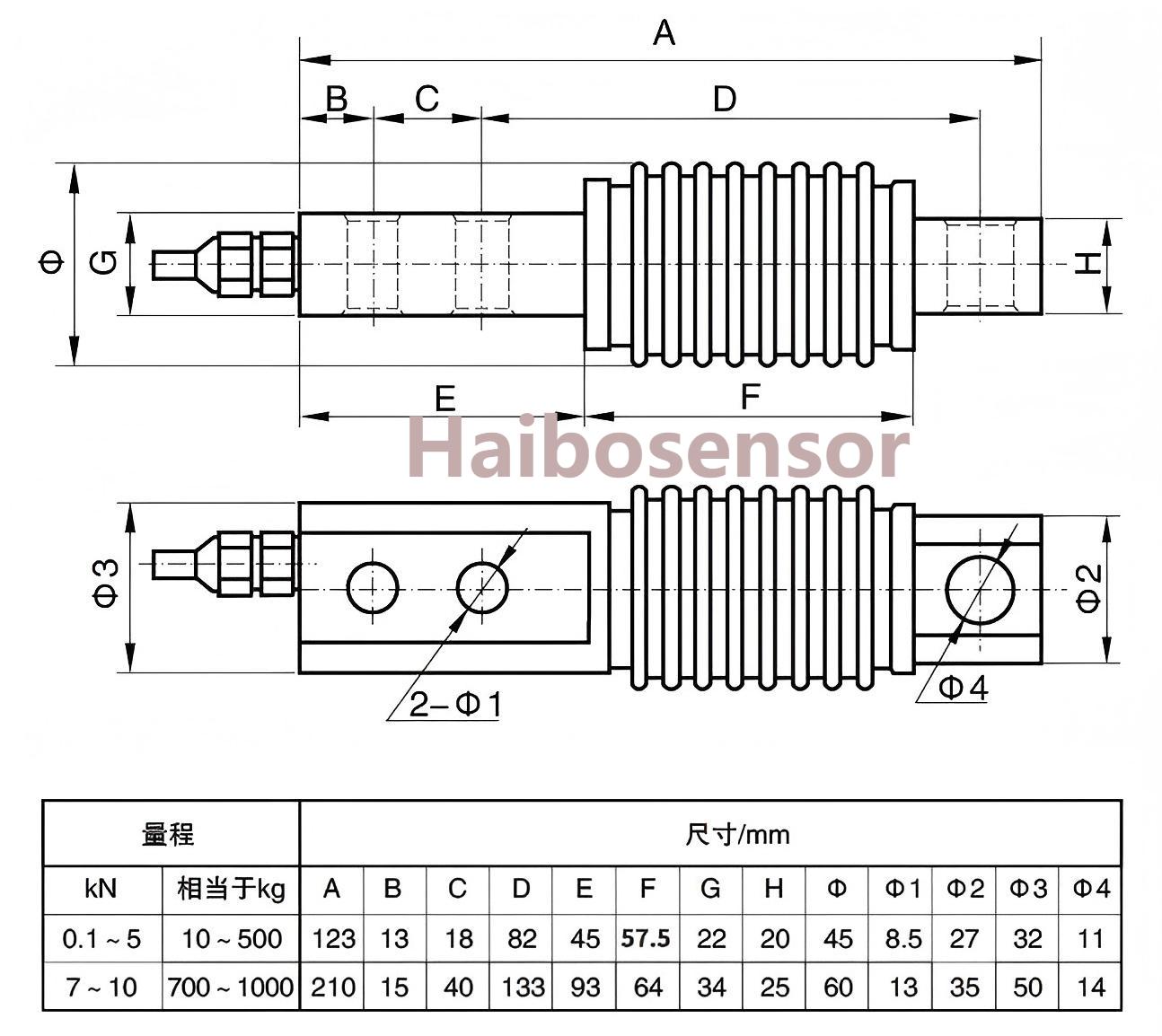

Dimension Size:

HBTLS810H Force Sensor Specifications:

参数/Parameter	规格/数值
额定载荷 (Rated Load)	00.1，0.2，0.3，0.5，1，2,3，5，7，10 (kN)
综合精度 (Comprehensive Precision)	0.05～0.1% F·S
灵敏度 (Sensitivity)	2.0 mV/V
蠕变 (Creep)	±0.02% F·S/30
零点输出 (Zero Output)	±1% F·S
零点温度影响 (Temperature Effect On Zero)	±0.05% F·S/10℃
输出温度影响 (Temperature Effect On Output)	±0.05% F·S/10℃
工作温度 (Operating Temperature Range)	-20℃～+65℃
输入阻抗 (Input Resistance)	380±10 Ω or 750±15
输出阻抗 (Output Resistance)	350±3 Ω or 700±5
绝缘电阻 (Insulation Resistance)	≥5000 MΩ
安全过载 (Safe Load Limit)	150% F·S
供桥电压 (Bridge Voltage)	建议 10V DC
材质 (Material)	合金钢（Alloy Steel）or不锈钢（Stainless Steel）
传感器接线方式 (Load Cell Connection)	输入+: 红 (Input+: Red) 输入-: 黑 (Input-: Black) 输出+: 绿 (Output+: Green) 输出-: 白 (Output-: White)
变送器接线方式 (Amplifier Connection)	电源: 红 (Power: Red) 公共端: 蓝 (Public: Blue) 输出: 白 (Output: White)
