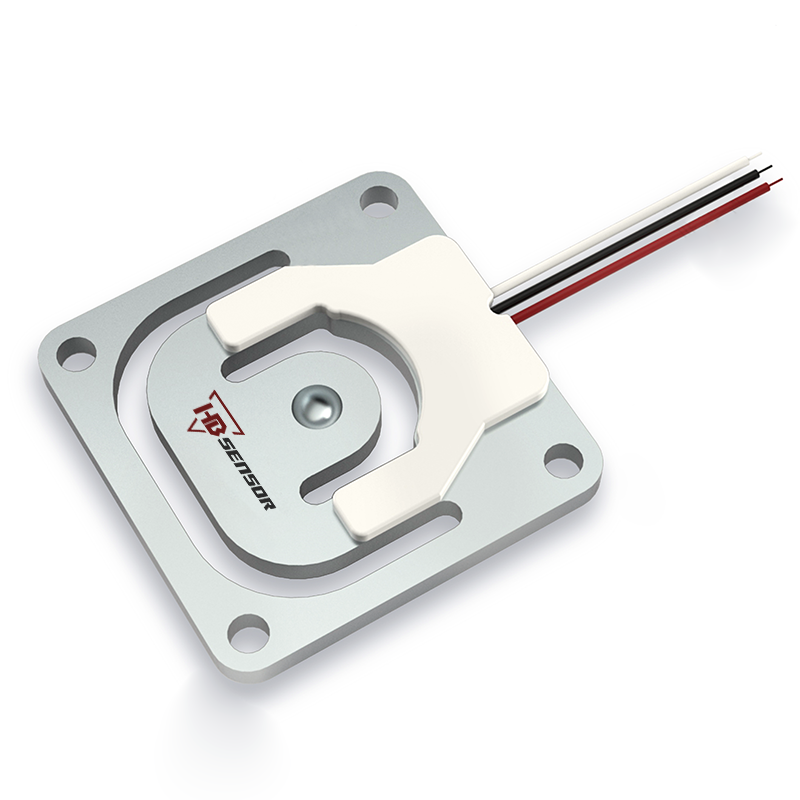

The half-bridge micro weighing load cell consists of four micro weighing load cells with resistors configured to form a set of full-bridge weighing sensors for use. They feature a three-wire output configuration, specifically with black, red, and white cables.

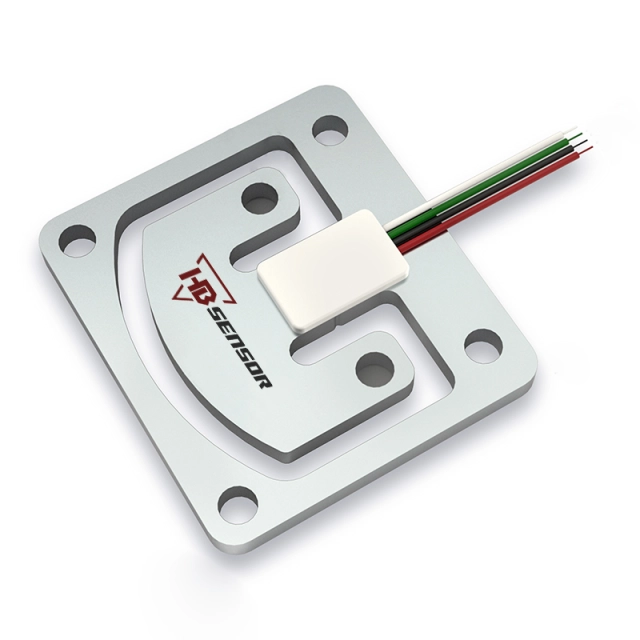

The full-bridge micro weighing load cells are designed for single use. They feature a cable with four wires for its wiring configuration: red, black, green, and white cables.
You probably already know that there are two kinds of micro load cells—half-bridge and full-bridge. Right now, we’re going to focus on the half-bridge type.A micro full-bridge or half-bridge load cell is an extremely thin and compact sensor that utilizes strain gauge technology. It is specifically developed for use in small kitchen scales, jewelry scales, micro weighing systems, and portable electronic devices. These load cells are engineered to support low-profile designs without compromising measurement precision.
If you’re looking for a half bridge or full bridge load cell manufacturer or factory, feel free to check out our video for reference. We can also provide free samples and fast delivery. If you have any technical questions or need a customized half bridge load cell, we’ll be happy to help and offer a professional solution.
As can be seen from the video, we are factory engaged in the daily production of half – bridge and full – bridge load cells. These miniature load cells are all manufactured by our senior technical workers. Every single process undergoes 100% inspection before the products are delivered to our customers!
✔ Fast Delivery Date ✔ Free Samples ✔ High quality performance
✔ Customized Micro Load Cells
Flat half bridge and full bridge micro load cells are made of manganese steel material, with a weighing range from 3 kg to a maximum of 100 kg. These load cells have a thickness of ≤5 mm and are characterized by their lightweight design and compact dimensions. They are widely popular in the global smart home weighing market due to their cost-effectiveness and ability to enable digital transformation of conventional products, thereby enhancing them into intelligent, digital solutions.
Lightweight, made of manganese steel.
Lightweight, made of aluminum or stainless steel.
Haibosensor as a half bridge manufacturer,we can provide all types half bridge load cell,custom any applications for any weighing load cells.Half bridge micro load cells have many types, however, their classic types are reviewed in the table list. Half bridge load cell capacity ranges from 1kg to a maximum capacity of 100kg. We also have the capability to help customize special requirements for half bridge load cells.micro half-bridge load cell (1–100kg) is widely used in smart devices and IoT systems where compact size, moderate accuracy, and cost-efficiency are key. Below are some smart application examples where such load cells are commonly integrated.If you have any requirements for half bridge load cells, please feel free to send us an inquiry!
HBTLM902-serials Half bridge Weight-micro load cells in Chairs/Beds – Detects occupancy for smart lighting/AC control.
Interactive Floors Using Micro Half-Bridge Load Cells Embedded in Floor Tiles – Detect footstep weight distribution.
If you are interested in applications of this type, you may contact the Haibosensor team to request HBTLM902 free samples
We recommend models HBTLM928DAD, HBTLM928DA, and HBTLM913AB, as they can meet the requirements of the following intelligent solutions.
Livestock Feeders – Measures feed consumption per animal.
Soil Moisture + Weight Sensors – Optimizes irrigation based on pot weight.
Smart Poultry Farming Individual Chicken Weighing:
Chickens step onto a platform scale with the load cell to record weight ,use load cells to monitor food levels and dispense precise portions
Smart Dumbbells – Tracks reps and force in connected gym equipment.
Health weighing scales -Bluetooth-enabled human health scales are used to monitor health data such as the weight, body fat percentage, and heart rate of rehabilitating patients. By doing so, it becomes possible to track the physical conditions of each patient and formulate more effective health management plans for them.
Coffee Machines – Measures coffee bean/water levels for automatic refill alerts.Snack Dispensers – Detects product weight to prevent empty vending or theft.Beverage Coolers – Monitors bottle removal for inventory tracking.
If you are interested in applications of this type, you may contact the Haibosensor team to request free samples.
HAIBOSENSOR, as a professional manufacturer of half bridge micro load cells, offers load cells of classic models for traditional industries as well as those under development for special customized intelligent weighing load cell industries. If you have any requirements for customized weighing half bridge micro load cells please refer to the following customization requirements and contact us to obtain free solutions and samples!
[LOAD] → [HALF-BRIDGE SENSOR] → [SIGNAL CONDITIONER] → [OUTPUTS]
│ │ ├─ 4-20mA
├─ Capacity: 0-500kg ├─ Excitation: 10V ├─ 0-10V
├─ Material: Manganese Steel └─ Filter: 100Hz ├─ RS485
└─ Accuracy: ±0.1% └─ Wireless
As the best quality load cell sensor products manufacturer, we can provide professional solutions for any custom request. Please feel free to contact us now and we will contact you soonest.
Haibo is a large manufacturer of Various Load Cells. We design and manufacture a wide range of and high precision Class C3 and competitive prices, Single point load cells, shear beam load cells, micro load cells, truck scales load cells, Weighing alex pads, pressure sensors, torque sensors, etc.
