Dynamic Rotary Torque Sensor HBWTQ2205

Model: HBWTQ2205

Capacity (Nm): 0-5, 10, 20, 30, 50, 100

Maximum: 5-500 Nm speed up to 1800 RPM; 600-2000 speed up to 300RPM;

Rated: 1.0-2.0 mv.v

Payment Terms: FOB or EXW Shenzhen or GUANGZHOU

Descriptions

Dynamic Rotary Torque Sensor Transducers for Your Business.

The Haibosensor HBWTQ2205 is a high-precision, compact rotary torque transducer that features digital output, EMI resistance, and bidirectional measurement without zero adjustment (0-100 Nm range). It supports both static and dynamic torque signals through a slip-ring-free design, ensuring wear-free, long-term reliable operation at high speeds. The speed can reach 1800 RPM under normal operating conditions and is capable of achieving up to 4000 RPM within a short period of time.

Key Features:

High precision, excellent stability, and strong EMI resistance

Digital signal output

Compact, lightweight design for easy installation

Non-contact sensing—no slip rings or wear-prone components

Bidirectional torque measurement (±100 range options)

Supports static, rotational, and dynamic torque signals

Zero-adjustment-free operation for quick setup

Capable of long-term high-speed operation

Usage & Applications:

Torque wrenches

Screwdrivers, and pneumatic tools

Robotic arm force feedback

torque of rotating machinery

engines, drive shafts

Wind turbines, etc.

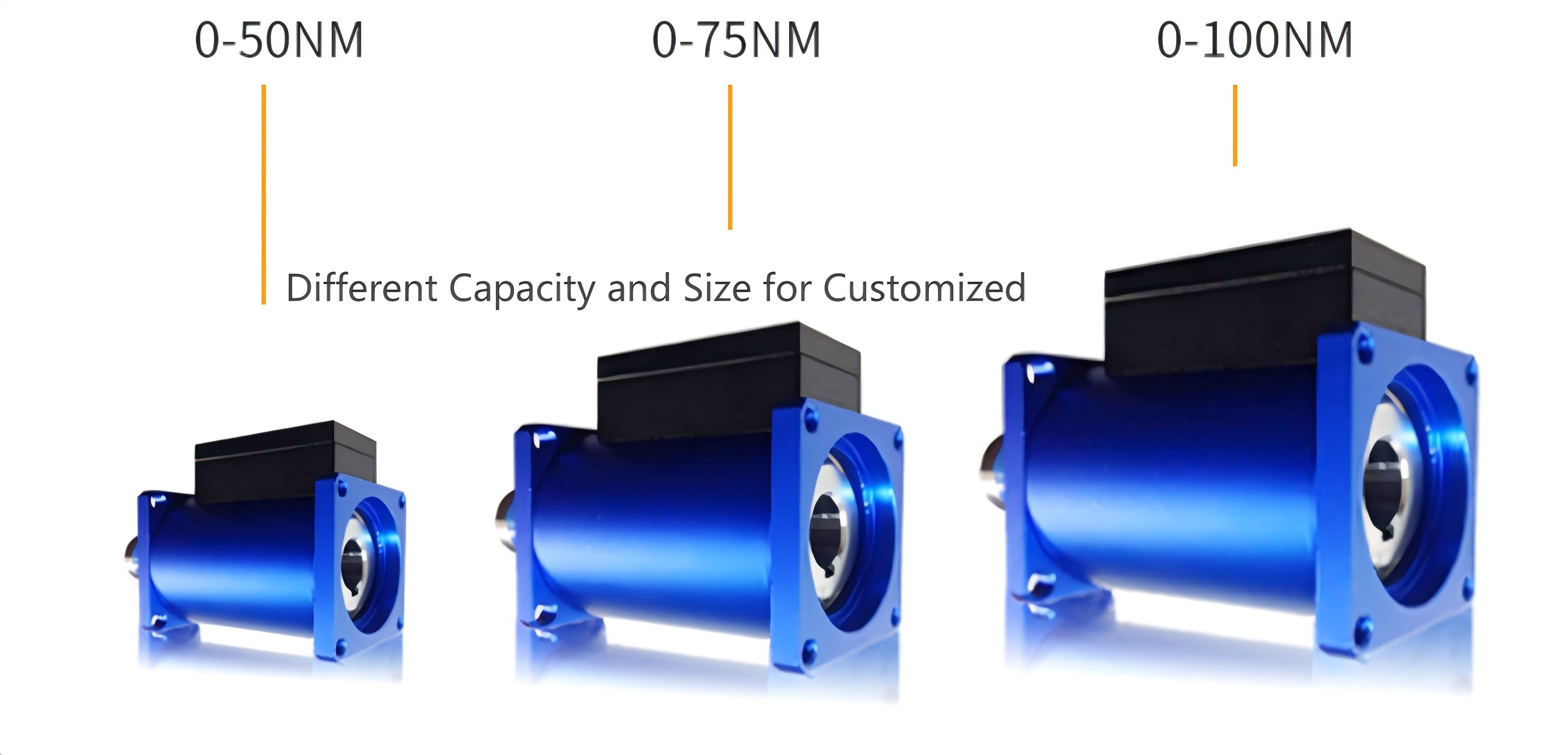

Customized Part:

Capacity

Size

Signal Output

Wires

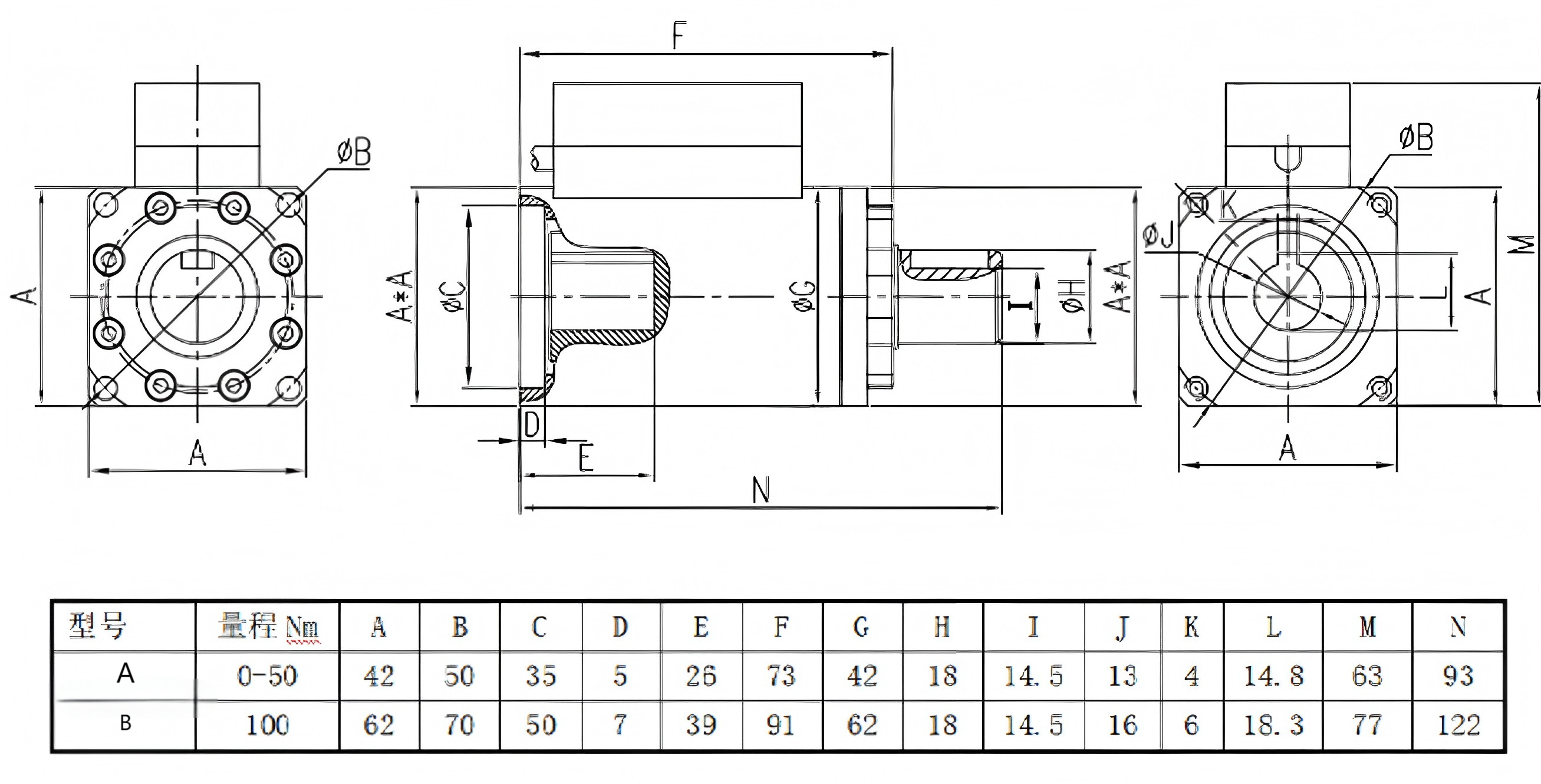

Dimension Size:

Packing

HAIBOSENSOR HBWQ2050A/B Non-Contact Torque Sensor Specifications:

Parameter	Specification
Measurement Range	0-5/10/20/30/50/100 (selectable)
Speed Range	0-4,000 RPM
Speed Output	Pulse/rev, 4-20mA, 0-10V
Power Supply	5-15VDC
Accuracy
– Nonlinearity	≤0.5% F.S.
– Hysteresis	≤0.5% F.S.
– Repeatability	≤0.2% F.S.
Temperature Characteristics
– Zero Drift	≤0.1% F.S./10°C
– Sensitivity Drift	≤0.03% F.S./10°C
Mechanical
– Construction Material	High-strength alloy steel
– Overload Capacity	150% (safe), 200% (ultimate)
Environmental
– Operating Temperature	-20°C to +60°C
– Humidity Range	0-90% RH (non-condensing)
Electrical
– Bridge Impedance	350Ω/750Ω ±10%
– Insulation Resistance	≥5,000MΩ @100VDC
– Response Frequency	10 kHz
Standard Features
– Cable Length	3 meters (φ5mm)
– Cable Strength	10kg tension rating
– Long-term Stability	≤0.3%/year
Special Feature	Integrated digital torque/RPM display
Options	Custom ranges/outputs available
