Haibosensor specializes in manufacturing high-quality shear beam load cells from durable materials like alloy steel or stainless steel (for corrosive environments). Using strain gauge technology, they provide precise weight measurements. We offer customization options for sizes, capacities (1t-50t+), cable lengths, connectors, and IP ratings (IP65/IP68) for applications such as tank scales and platform weighing. Contact Haibo for specifications or drawings.
High Capacity and Accuracy: This shear beam load cell sensor has a 0.5 kg-5 ton capacity and C2/C3 accuracy, ensuring precise and reliable measurements. Durable Construction: Made from alloy steel, it withstands harsh conditions while maintaining performance. Flexible Power Options: Operates on 5-15V, enabling easy system integration. Long-Term Stability: Features less than 1.0% F.S. zero balance drift and 0.05 F.S. combined error for consistent accuracy. Safe and Reliable: Handles up to 150% overload safely, with 5000 MΩ insulation resistance at 100 VDC.
High Accuracy—Precision-engineered for reliable weight measurement.
Robust Construction—Made from high-grade alloy steel or stainless steel for durability.
IP Rating (IP65/IP67/IP68)—Resistant to dust, moisture, and harsh environments.
Multiple Ranges Available—Customizable load capacities to suit different applications.
Easy Installation—Compact design with threaded or mounting holes for quick setup
Industrial platform scales
Tank and silo weighing
Hopper and conveyor belt scales
Process control and batching systems
Truck and axle weighing systems
Wire Length.

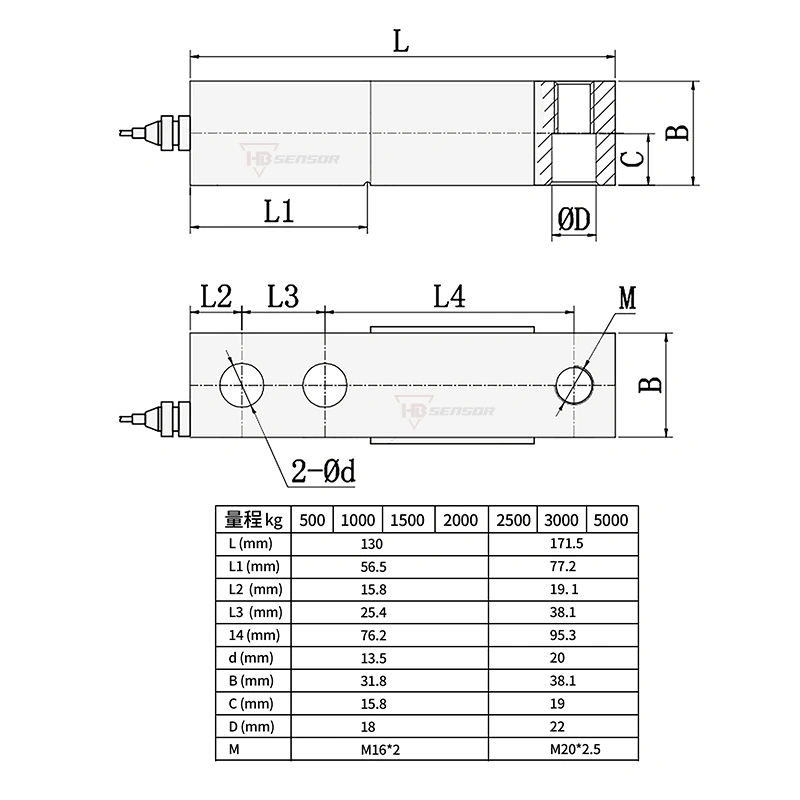

Load Cell Outer Size
Connect Connector
ODM/OEM.
Weighing Accessories: Amplifier, Digital Signal RS232 or RS485, Junction Boxes.
Package.
| Rated Capacities | 500-10000 KG/1.5 LB-10 |
| Rated Output | 2.0 mV/ 0.15%; |
| Zero Balance | ±0.0200 mV/V |
| Accuracy class | C3 |
| Non-linearity | ±0.05% FS/10℃ |
| Hysteresis | ±0.05% FS/10℃ |
| Repeatability | ±0.05% FS/10℃ |
| 30 Creep | ±0.05% FS/10℃ |
| 30 Return | ±0.05% FS/10℃ |
| Safe Overload | 150% R.O. |
| Ultimate Overload | 200% R.O. |
| Temperature Effect On Output | ±0.05% FS/10℃ |
| Temperature Effect On Zero | ±0.05% FS/10℃ |
| Input Impedance | 390±20 Ω |
| Output Impedance | 350±20 Ω |
| Insulation Impedance | ≥5000 VDC) |
| Recommended Excitation | 10~12 VDC |
| Maximum Excitation | 15 VDC |
| Operating Temperature Range | -20~60°C |
| Construction | Steel Alloy |
| Protection Class | IP66 |
| Cable | Φ5×6m |
| Mode of Connection | Red (EXC+), Black (EXC-), Green (SIG+), White (SIG-) |
