HAIBOSENSOR Load Cell for Smart Unmanned Vending Cabinet | Gravity Sensing Weighing Technology

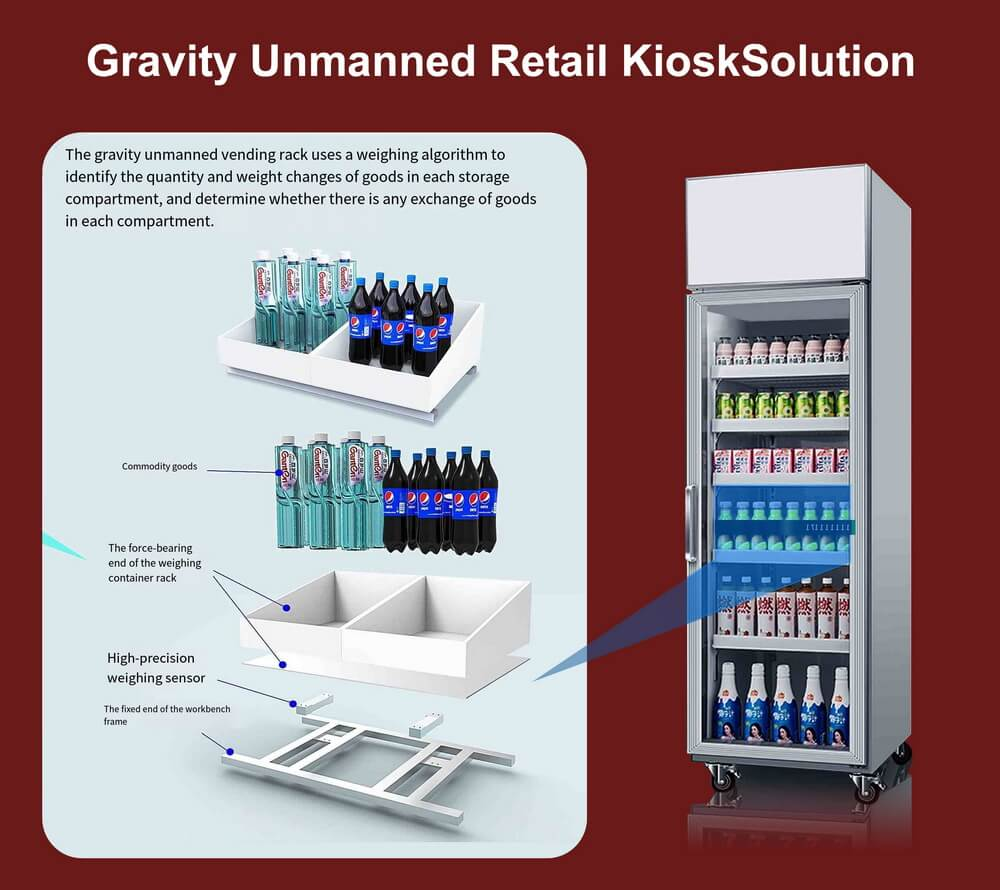

Driven by continuous advancements in Internet of Things (IoT), microprocessor, and sensor technologies, coupled with society’s increasing demand for improved living standards, the retail sector has entered a new phase marked by automation. Among the emerging technologies, intelligent vending systems—particularly those utilizing gravity-based sensing with high-precision load cells—have emerged as key innovations in the market.

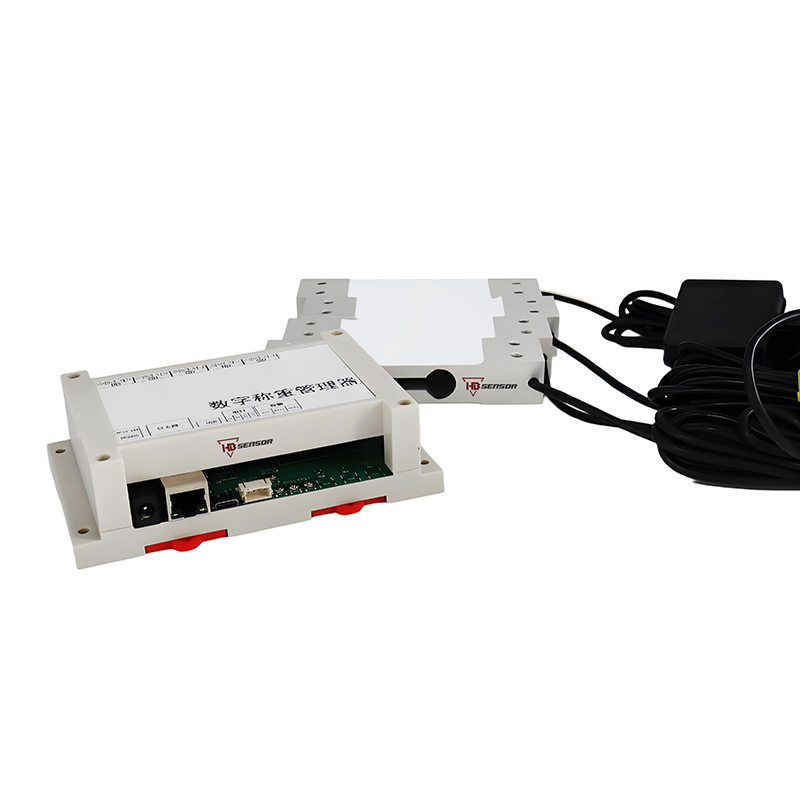

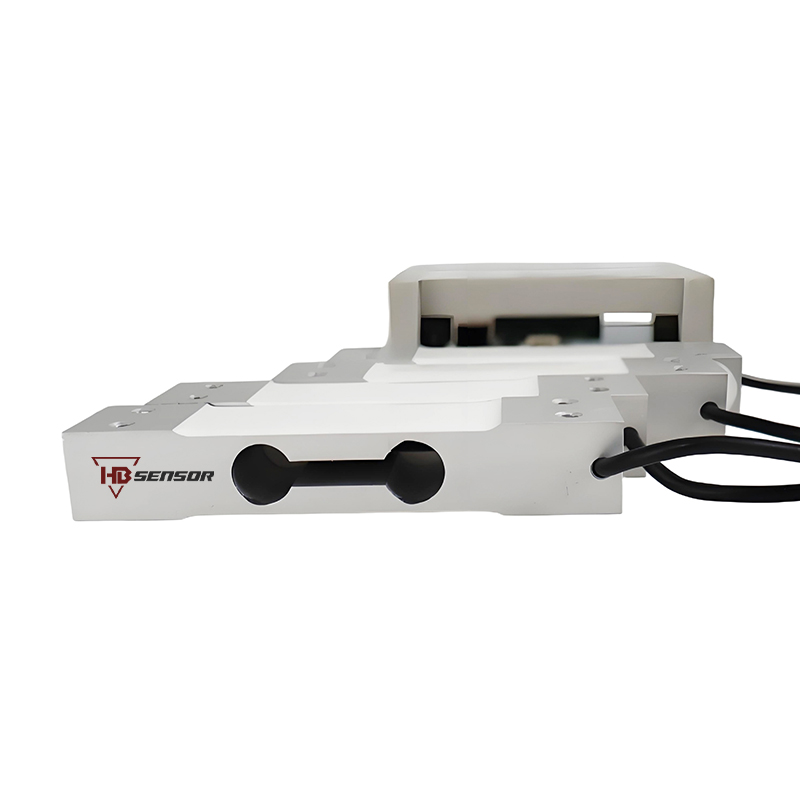

Drawing on its extensive experience in weighing load cell development, HAIBOSENSOR Electric Measurement has collaborated with multiple domestic manufacturers of intelligent vending equipment to deliver gravity-sensing modules in various configurations. These modules integrate advanced load cell technology and have undergone rigorous technical validation and production testing to ensure reliability and compatibility. Depending on the design and application requirements of the vending cabinet, the company offers single-point, dual-point, and quad-point load cell solutions. Both analog and digital signal outputs are supported. At the heart of each sensor lies a strain gauge load cell, manufactured using imported materials to guarantee high performance. The sensing units support a wide measurement range from 10 kg to 120 kg, with precision reaching up to 0.02%. Additionally, customized weighing load cell versions are available to meet specific environmental conditions such as temperature variation and long-term load stability. These gravity modules are suitable for intelligent shelving systems in open retail and storage environments.

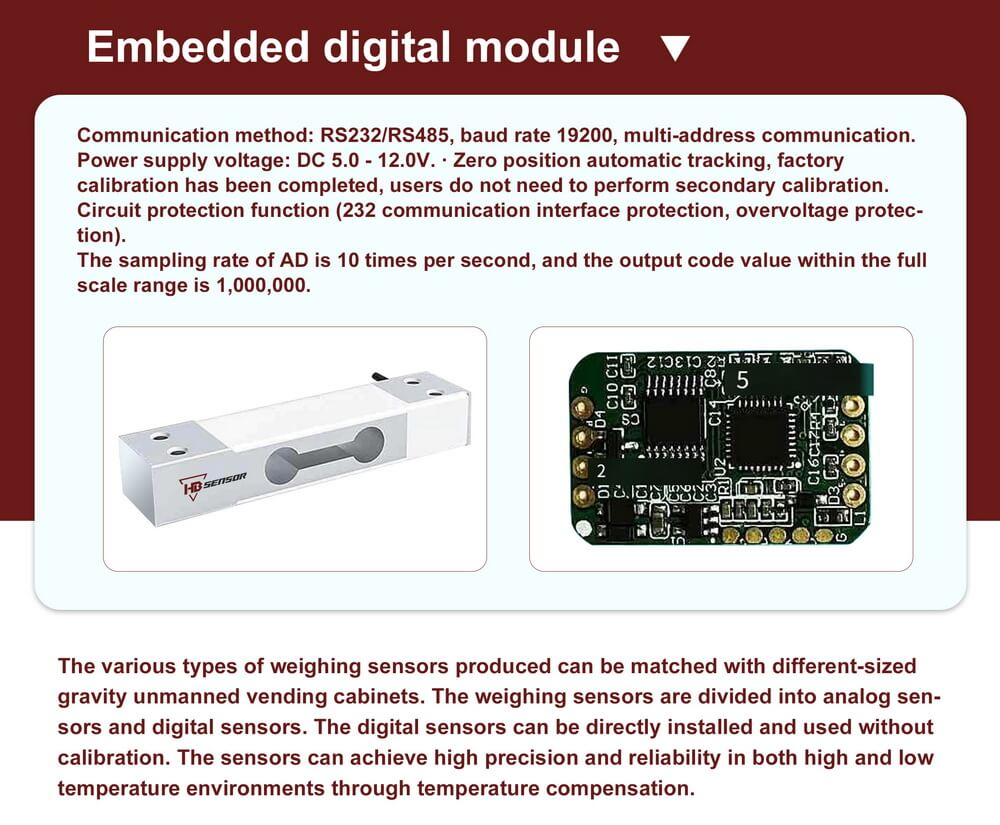

Key characteristics of HAIBOSENSOR’s built-in digital load cell module include:
Communication interface: RS232/RS485, with a baud rate of 19200; supports multi-device communication.
Operating voltage: DC 5.0 to 12.0 volts.
Built-in circuit protection (including RS232 interface protection and overvoltage safeguards).
AD sampling frequency: 10 samples per second; full-scale digital output: 1,000,000 counts.
Automatic zero adjustment; pre-calibrated at the factory, eliminating the need for user recalibration.

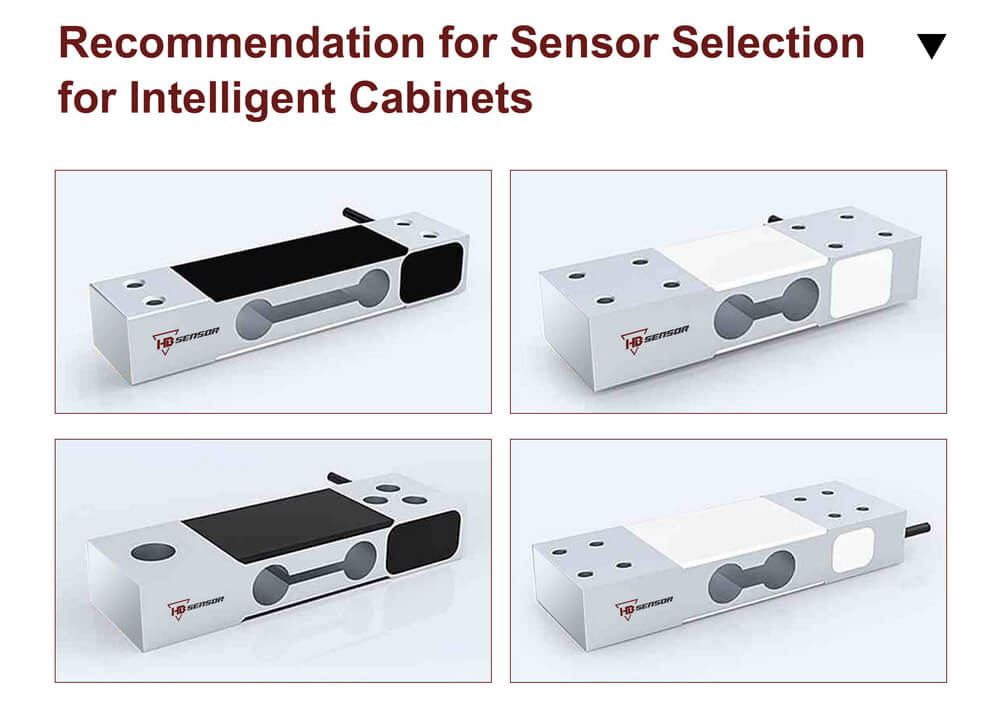

HAIBOSENSOR Electric Measurement Technology Co., Ltd. offers a diverse range of load cells compatible with various types of gravity-based automated vending systems. These weighing load cells are categorized into analog and digital types, with digital variants being plug-and-play, requiring no additional calibration. Thanks to integrated temperature compensation mechanisms, these load cell sensors maintain high accuracy and stability even under extreme thermal conditions.
If your enterprise possesses R&D capabilities and aims to participate in the growing intelligent market, and seeks to rapidly modernize traditional products to gain competitive advantage, HAIBOSENSOR Electric Measurement is your ideal partner. We offer comprehensive smart weighing solutions featuring high-accuracy load cells that empower your products to evolve from “Made in China” to “Intelligently Made in China,” transforming them into cutting-edge innovations that define future trends and set new standards in the industry.
Haibo is a large manufacturer of Various Load Cells. We design and manufacture a wide range of and high precision Class C3 and competitive prices, Single point load cells, shear beam load cells, micro load cells, truck scales load cells, Weighing alex pads, pressure sensors, torque sensors, etc.
